Appendix 1

APPENDIX 1





FIGURE 1: EPB Cable Routing - S-TYPE and XJ (Normally Aspirated: pre-06MY) and S-TYPE, XJ and XK (07MY-onwards: all derivatives except XKR) (Plan View).





FIGURE 2: EPB Cable Routing - S-TYPE and XJ (Normally Aspirated: pre-06MY) and S-TYPE, XJ and XK (07MY-onwards: all derivatives). Primary cable routing around subframe (viewed from underneath vehicle).





FIGURE 3: EPB Cable Routing - S-TYPE and XJ (Normally Aspirated: pre-06MY) and S-TYPE, XJ and XK (07MY-onwards - all derivatives). Detail of cable routing over stabilizer bar deflector blocks.

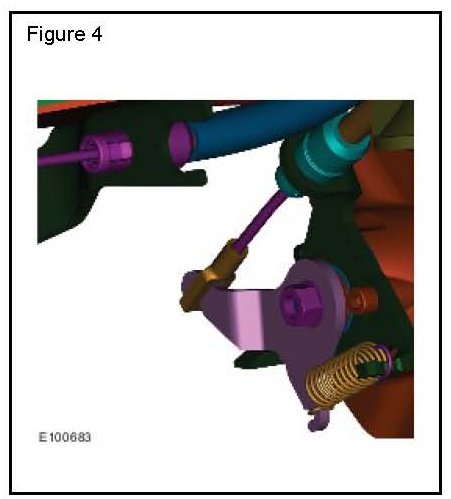

FIGURE 4: Detail of outer cable abutment. Ensure that the abutment retaining clips are intact so that the outer cable does not pull out, even when slack.





FIGURE 5: Detail of C-clip. Ensure that the cable and clip are fixed into position and that the cable is not damaged and free to move within the clip.





FIGURE 6: EPB Cable Routing - S-TYPE R and XJR (Supercharged: pre-06MY) (Plan View).





FIGURE 7: EPB Cable Routing - S-TYPE R and XJR (Supercharged: pre-06MY). Primary cable routing over subframe.





FIGURE 8: EPB Cable Routing - XKR (Supercharged: 07MY-onwards) (Plan View).





FIGURE 9: EPB Cable Routing - XKR (Supercharged: 07MY-onwards). Primary cable routing around subframe.
