Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
>>

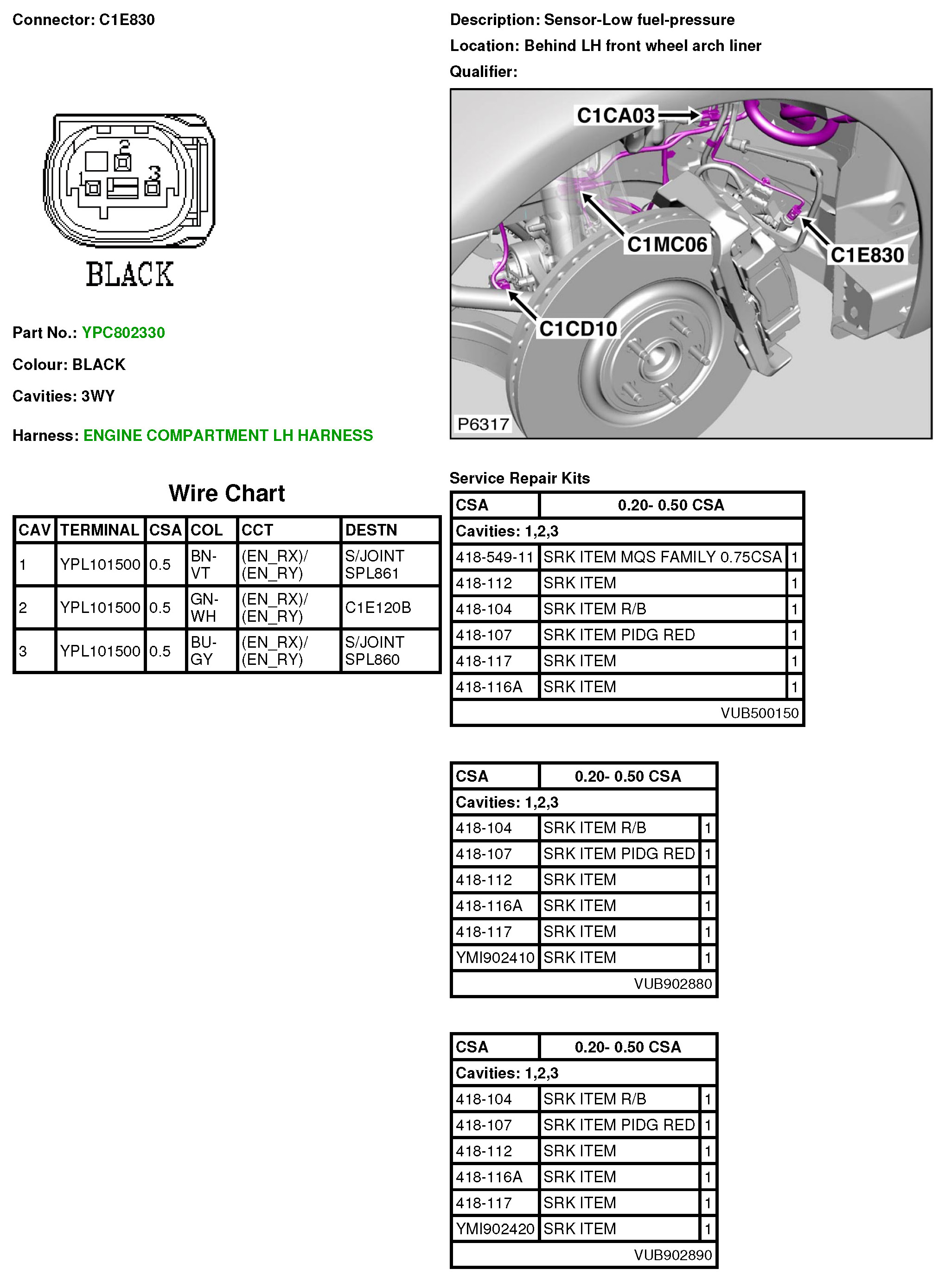

C1E830 Sensor-Low Fuel-Pressure
C1E830 Sensor-Low Fuel-Pressure
C1E830
