Fuel Pressure Sensor/Switch
>>

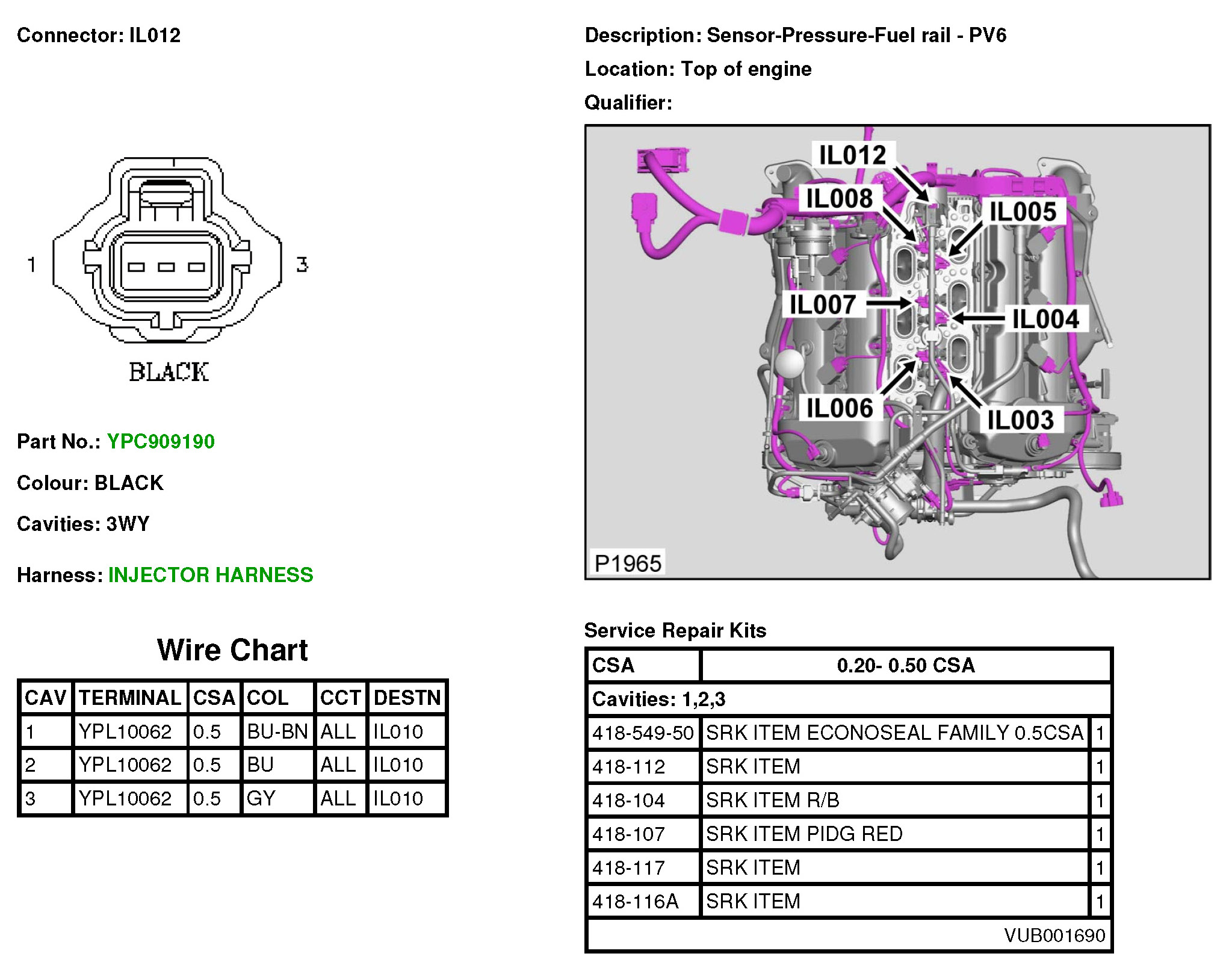

IL012 Sensor-Pressure-Fuel Rail
IL012 Sensor-Pressure-Fuel Rail
IL012
