XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry Module
>>

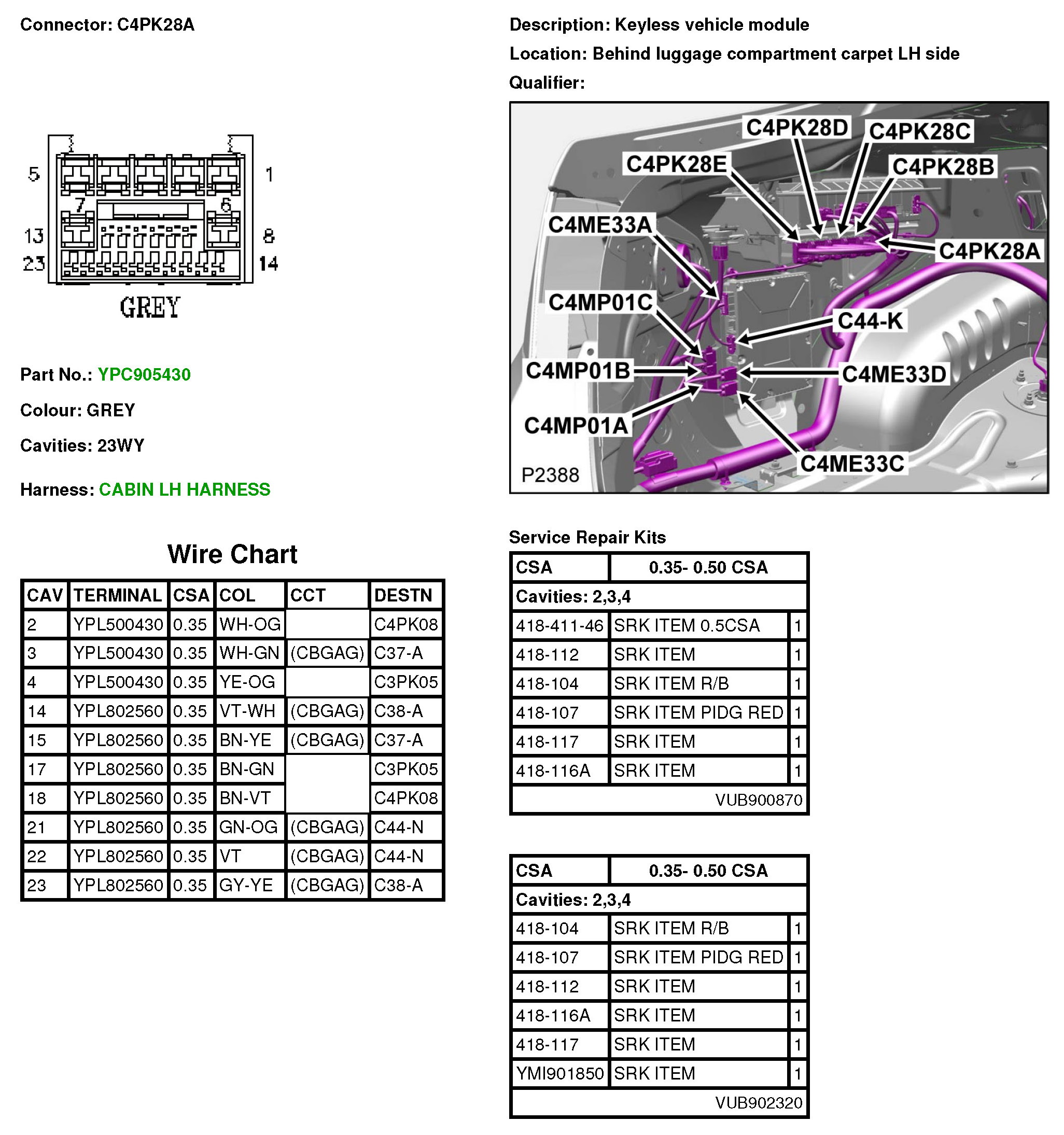

C4PK28A Keyless Vehicle Module
C4PK28A Keyless Vehicle Module
C4PK28A
