Camshaft Position Sensor
>>
Locations
>>

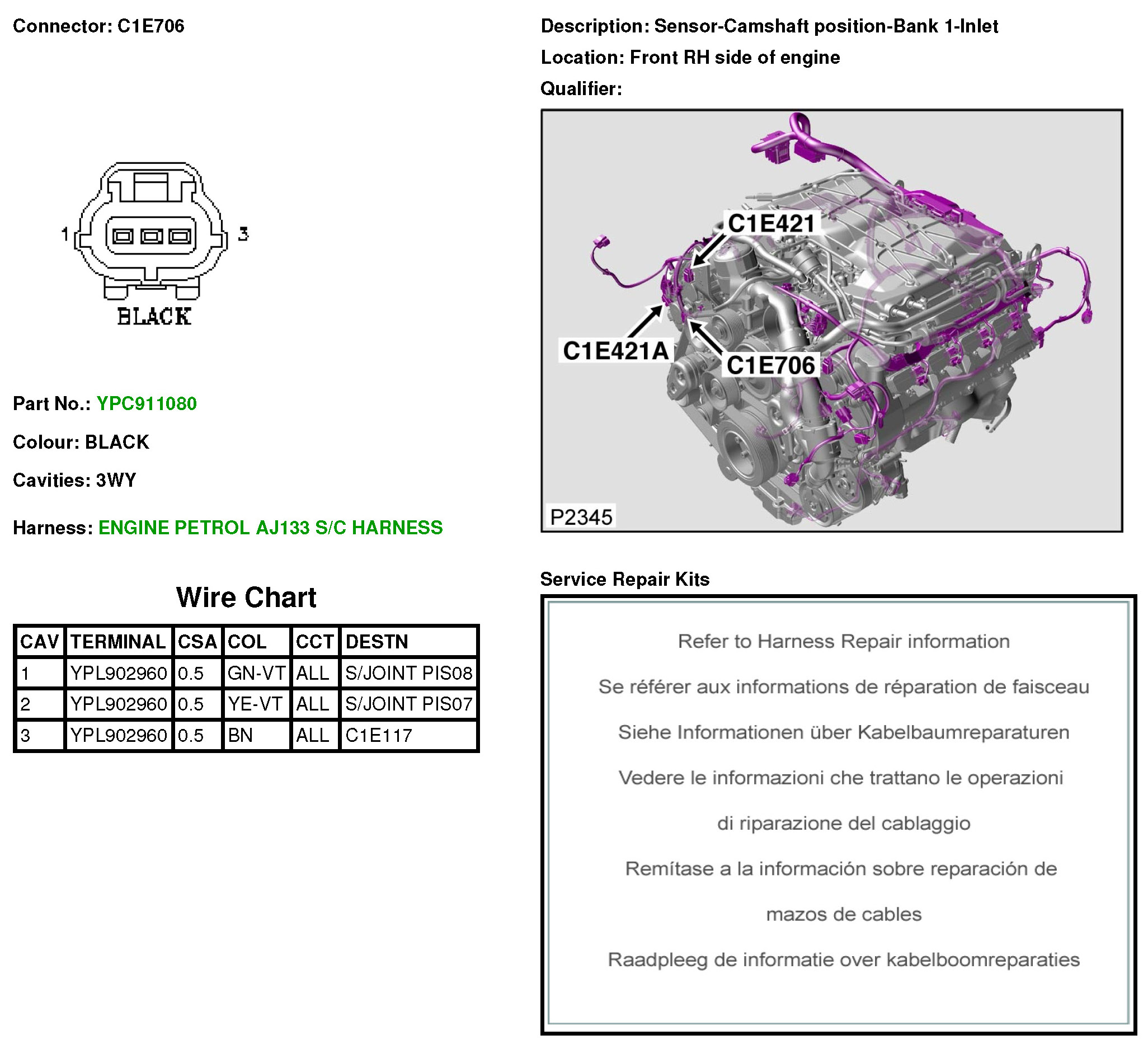

C1E706 Sensor-Camshaft Position-Bank 1-Inlet
C1E706 Sensor-Camshaft Position-Bank 1-Inlet
C1E706
