Cylinder Head Assembly

Cylinder Head Torque & Sequence / Bolt re-usability Service and Repair

Surface Variation -- Head-to-block, Head-to-manifolds And Surface Variation -- Warpage

Cylinder head maximum permitted warp (mm) (flatness specification) overall 0.08
over 150 x 150 mm area 0.05
over 25 x 25 mm area 0.02

Camshaft Bearing Cap

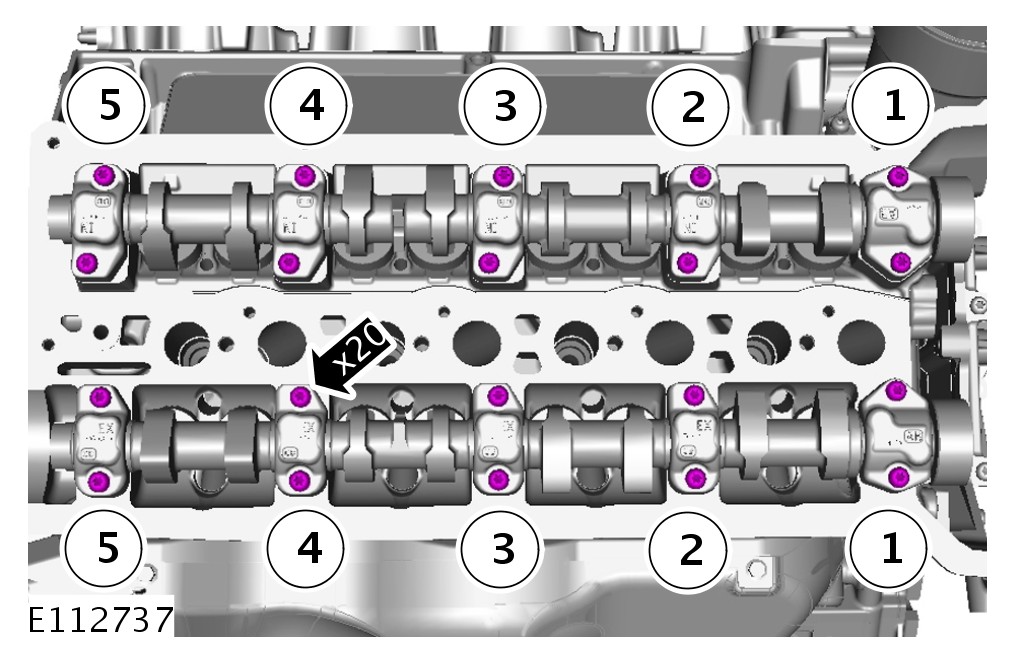

Camshaft LH

Step 1 Torque to 3 Nm
Step 2 Torque to 12 Nm

NOTE: Tighten the bolts in the indicated sequence.

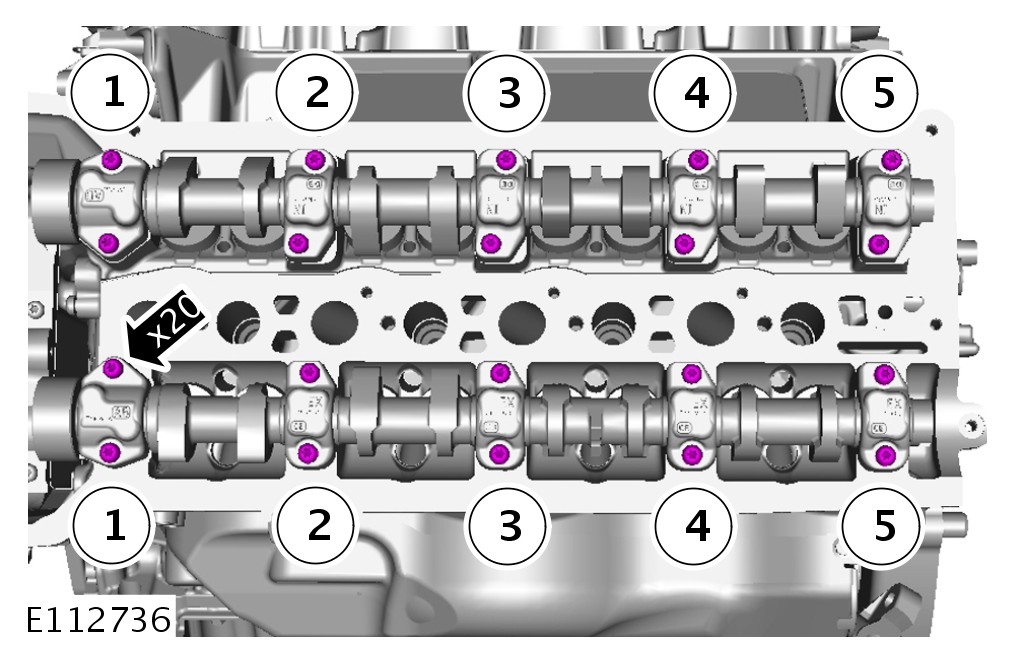

Camshaft RH

Step 1 Torque to 3 Nm
Step 2 Torque to 12 Nm

NOTE: Tighten the bolts in the indicated sequence.
