Electrical Diagrams

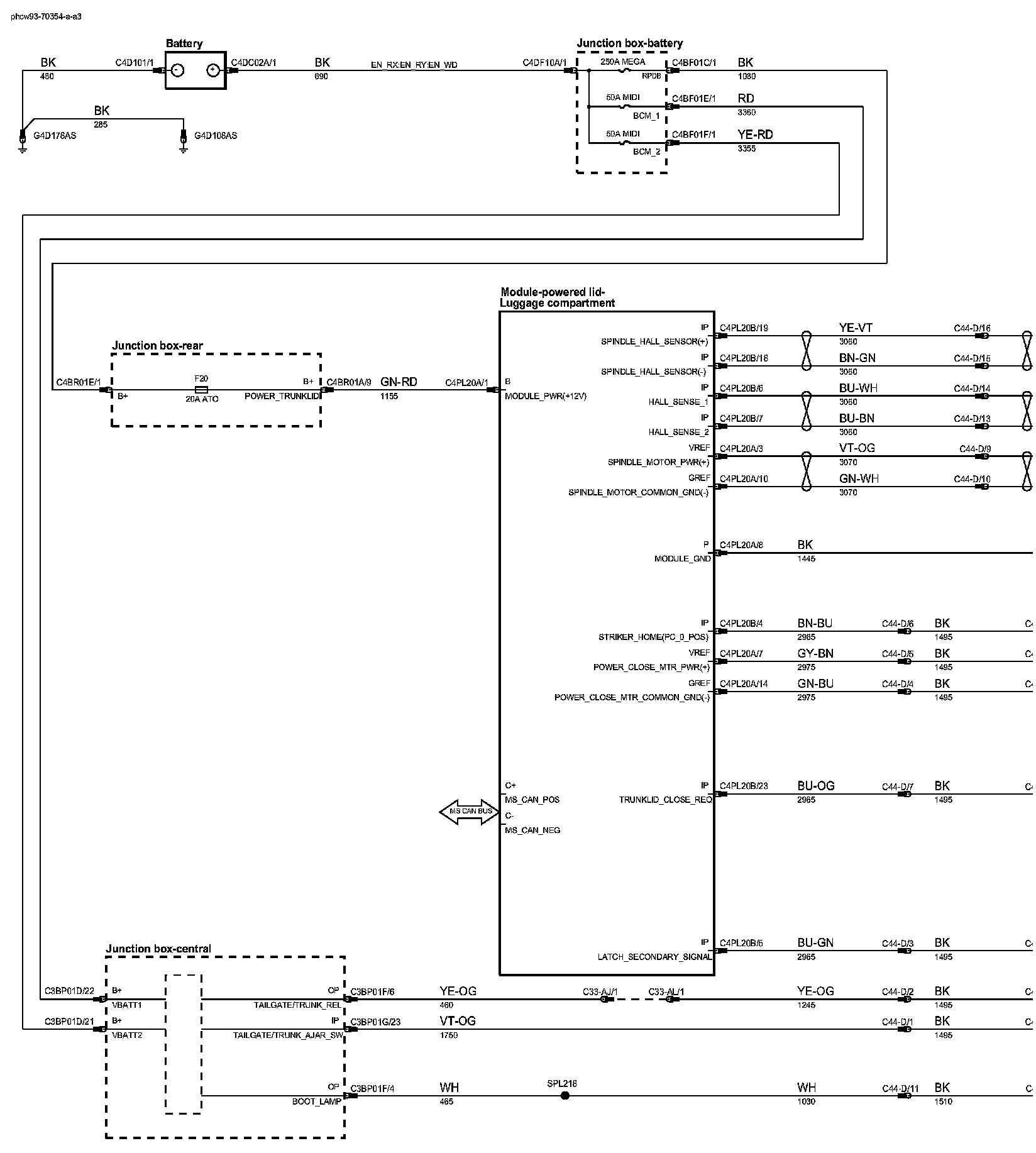

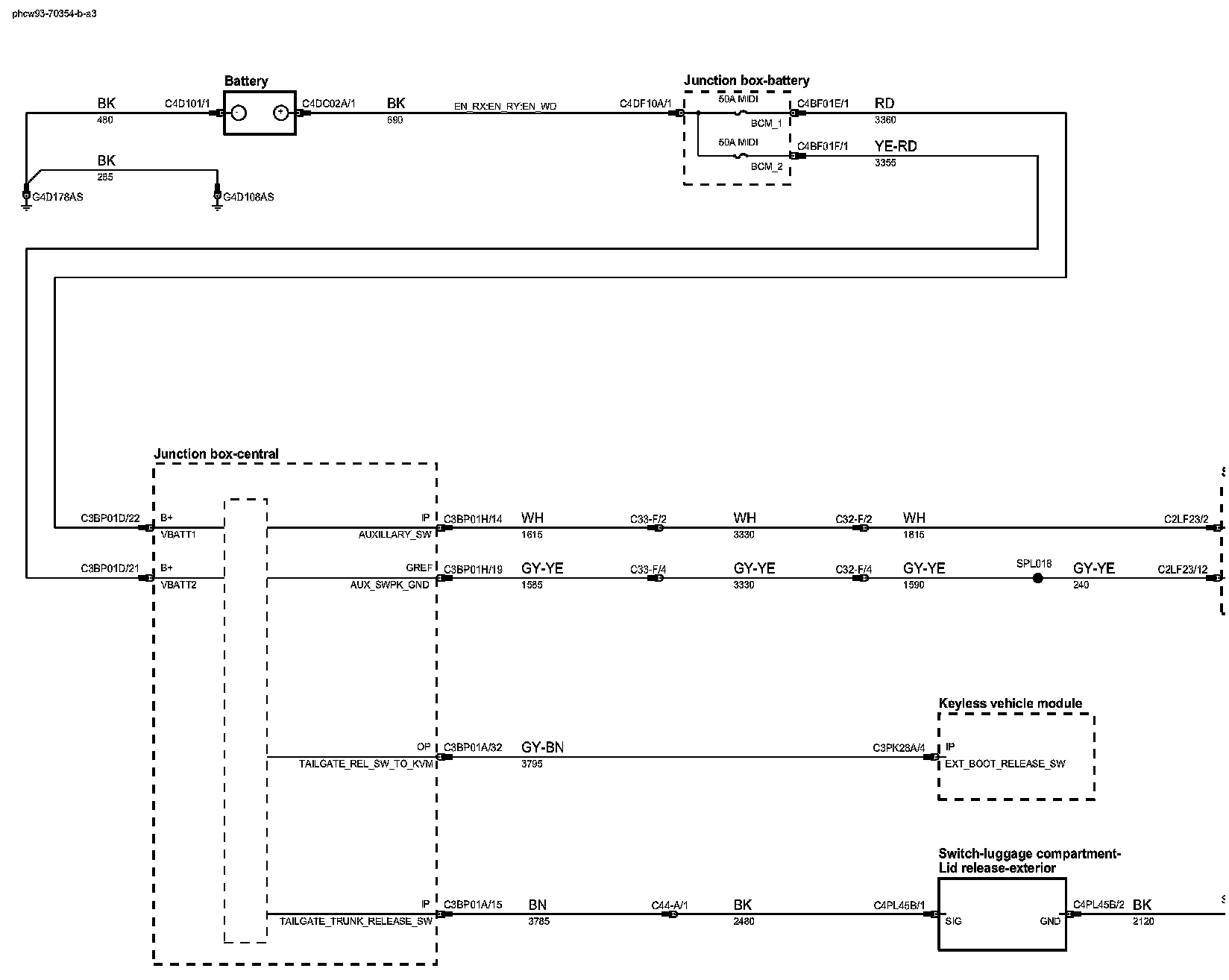

Handles, Locks, Latches and Entry Systems - Luggage Compartment Lid Release - (Part 1, Part 2)

V1�7:

�h�7:

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Connector Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
