Initial Inspection and Diagnostic Overview

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

NOTE:
Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
1 Verify the customer concern.

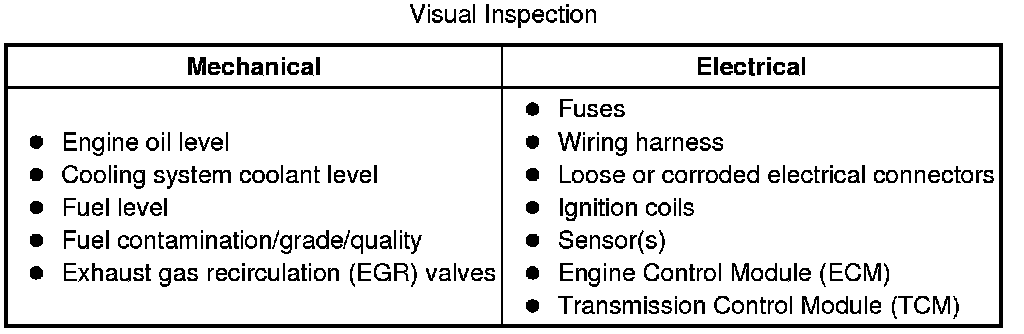

2 Visually inspect for obvious signs of mechanical damage.





3 If an obvious cause for an observed or reported condition is found, correct the cause (if possible) before proceeding to the symptom chart.
4 If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index.
