Brake Fluid Level Sensor/Switch
>>

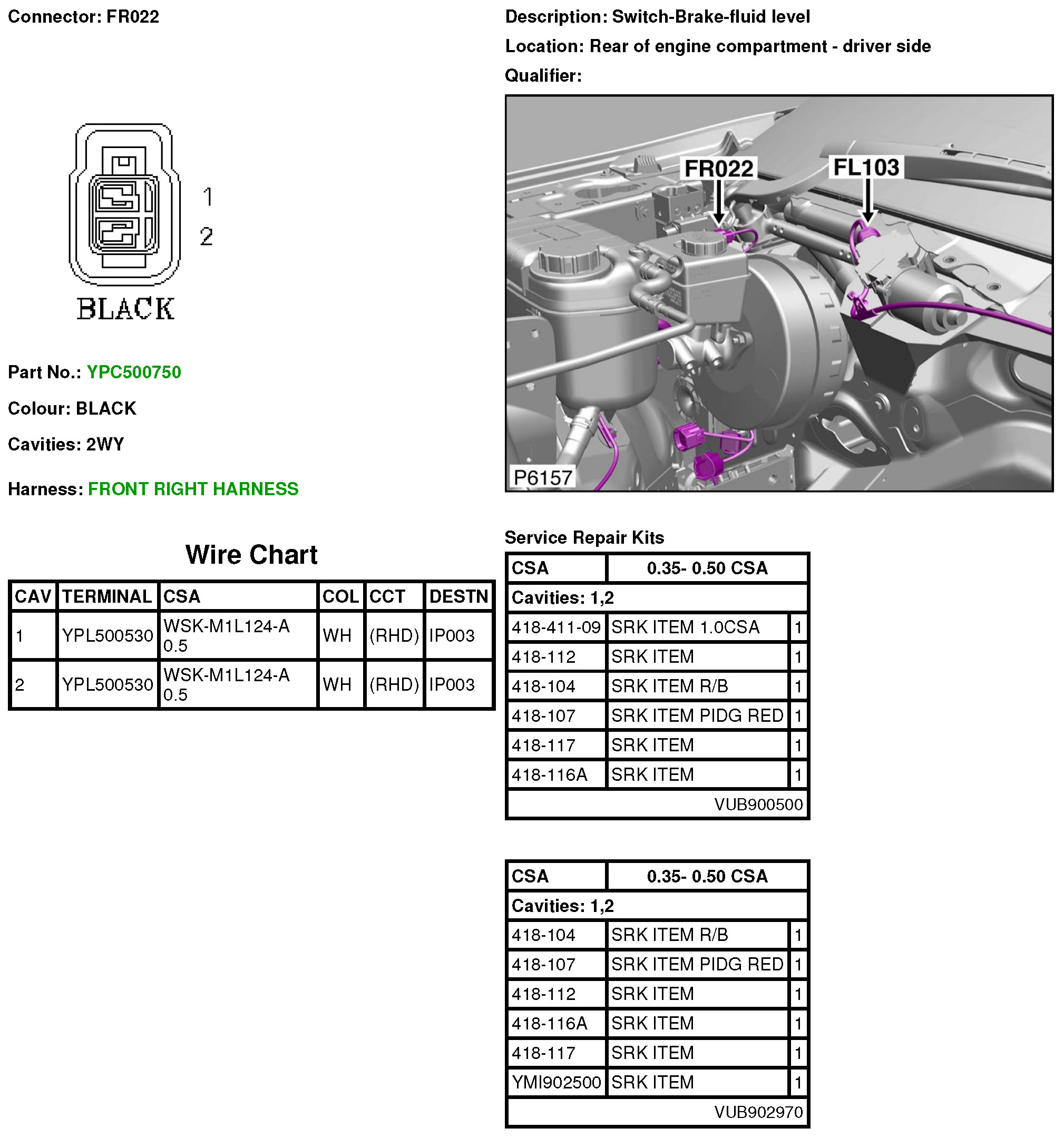

FR022 Switch-Brake-Fluid Level
FR022 Switch-Brake-Fluid Level
FR022
