Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>

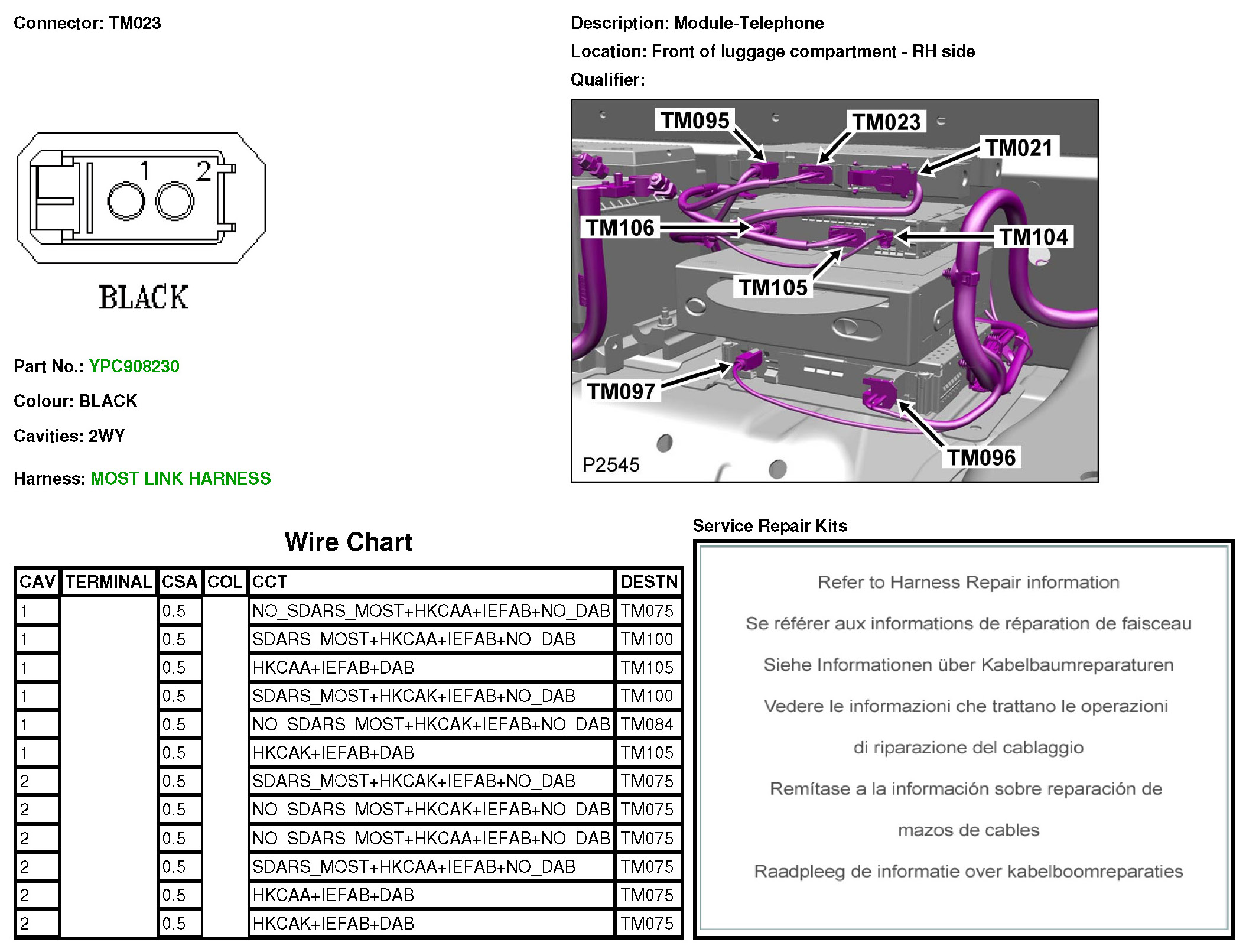

TM023 Module-Telephone
TM023 Module-Telephone
TM023
