Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
>>

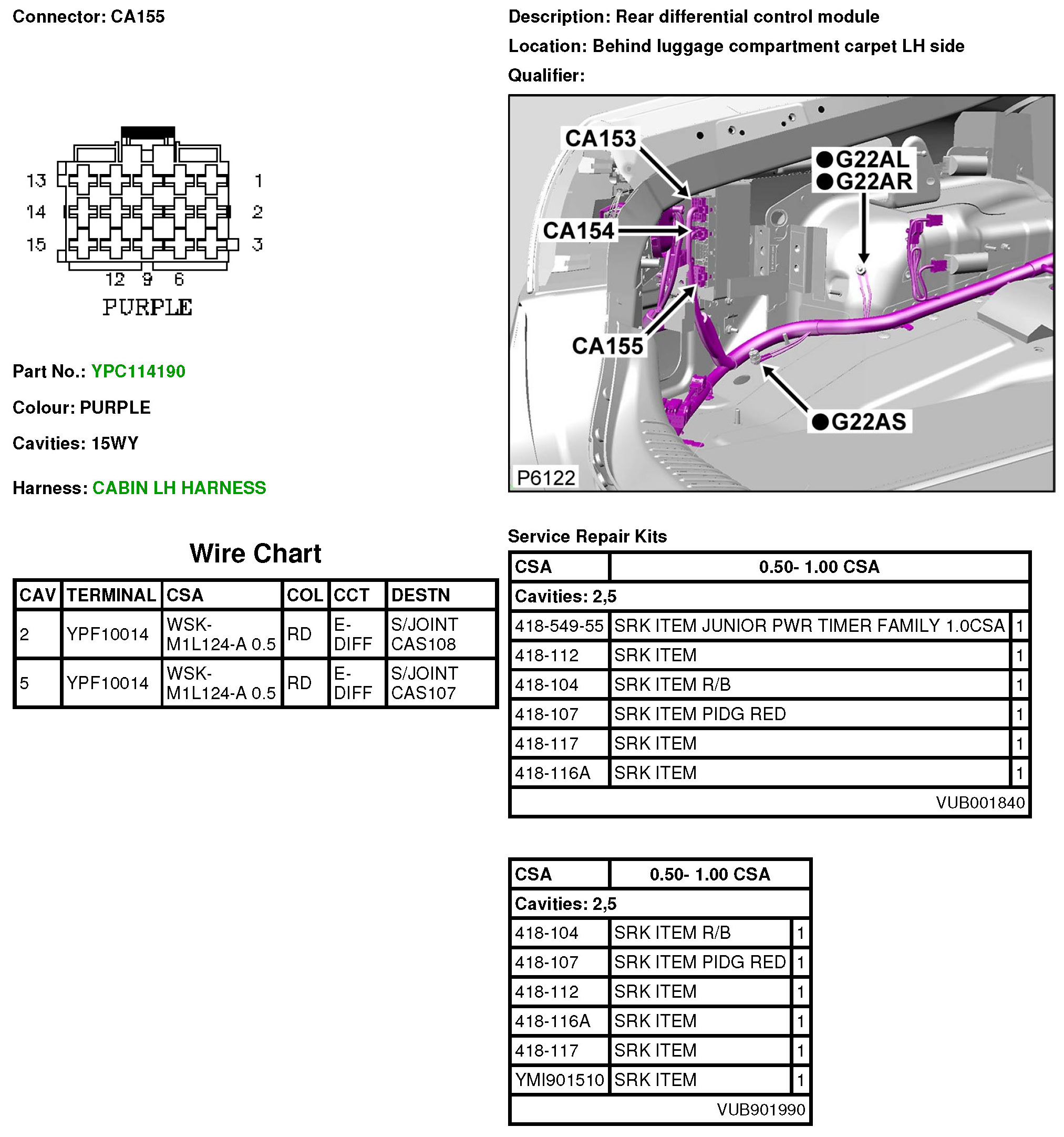

CA155 Rear Differential Control Module
CA155 Rear Differential Control Module
CA155
