Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

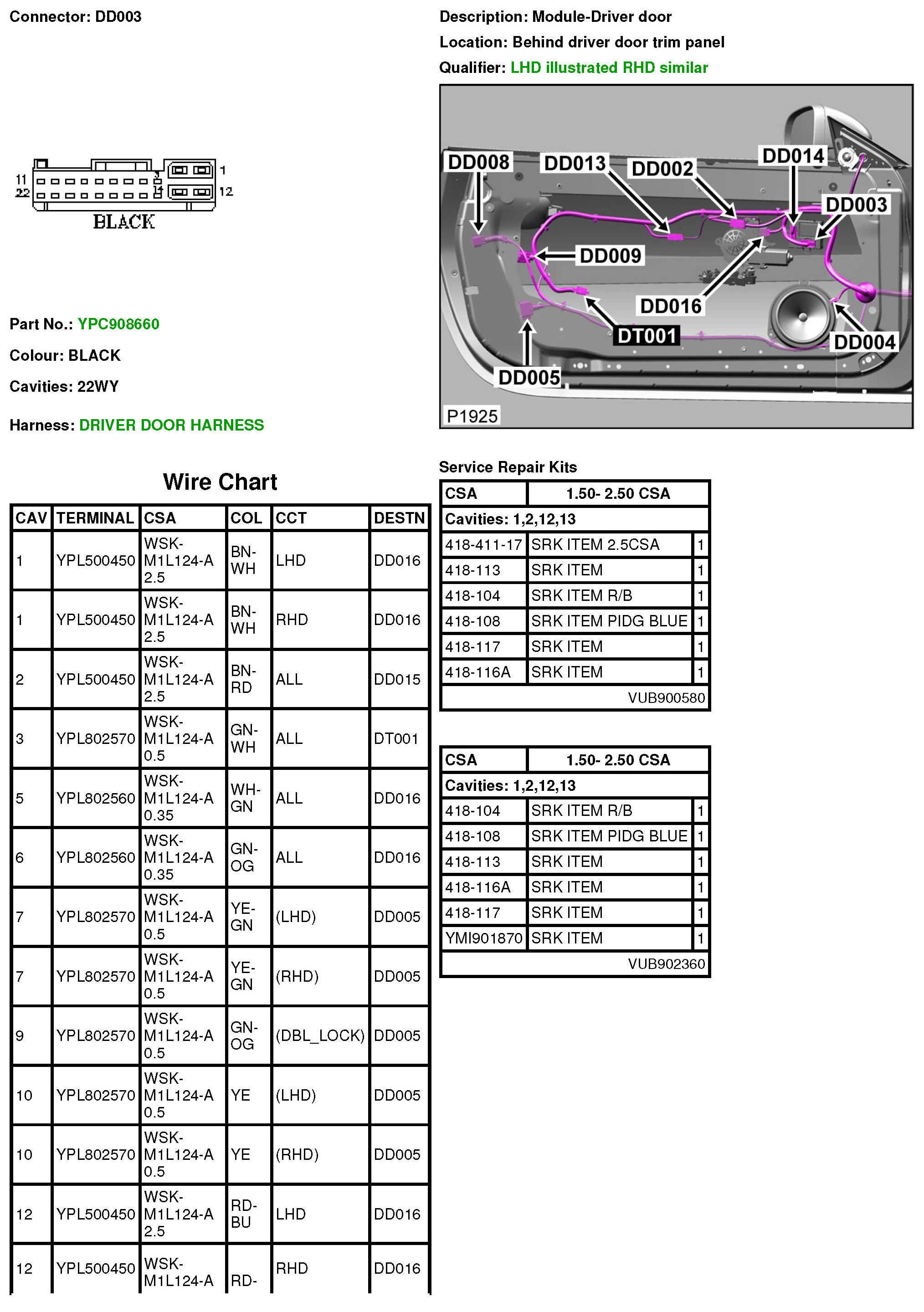

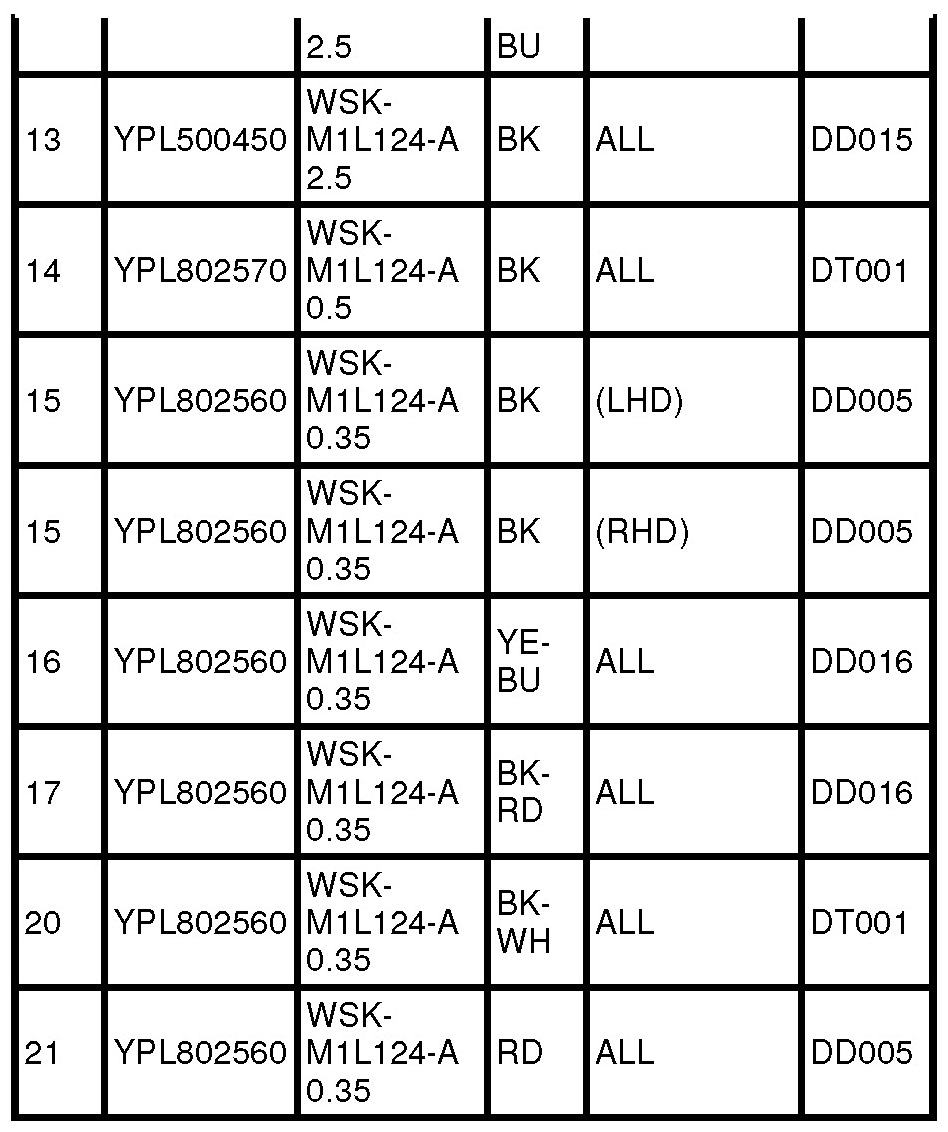

DD003 Module-Driver Door
DD003 Module-Driver Door
DD003
