Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> PD014 Module-Passenger Door

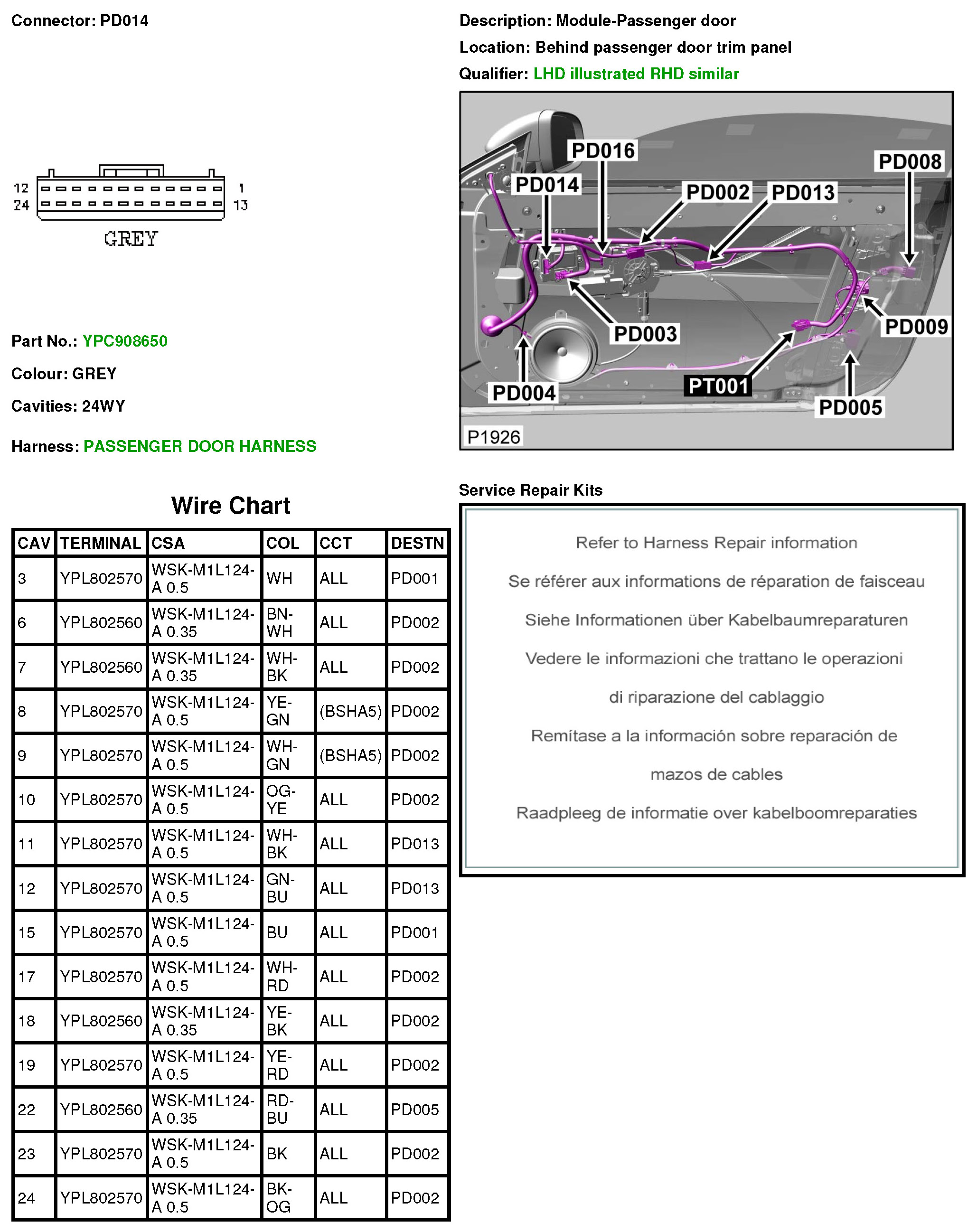

PD014 Module-Passenger Door



PD014
