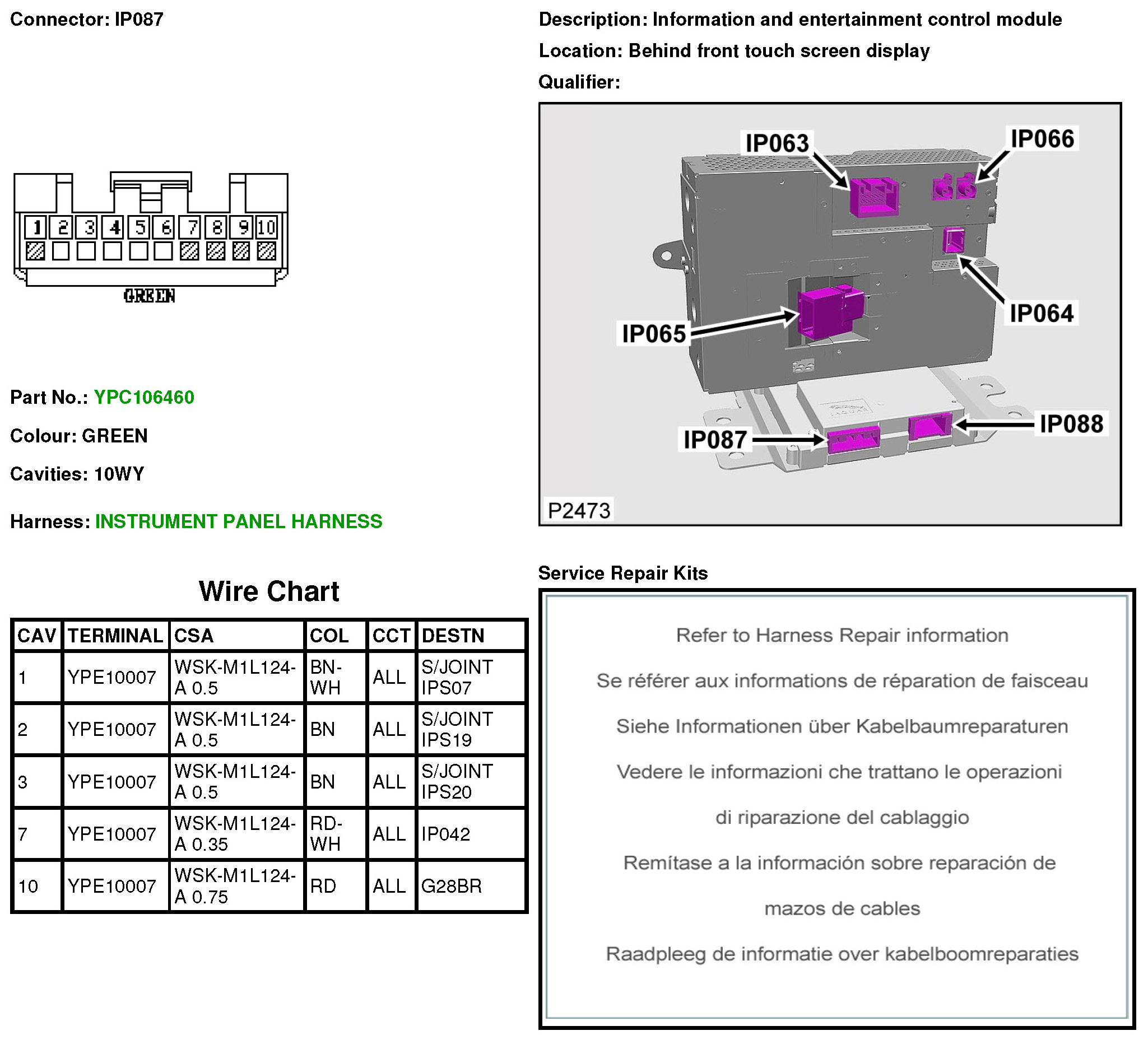

IP087 Information and Entertainment Control Module
IP087 Information and Entertainment Control Module
IP087
