Parking Assist Distance Sensor
>>

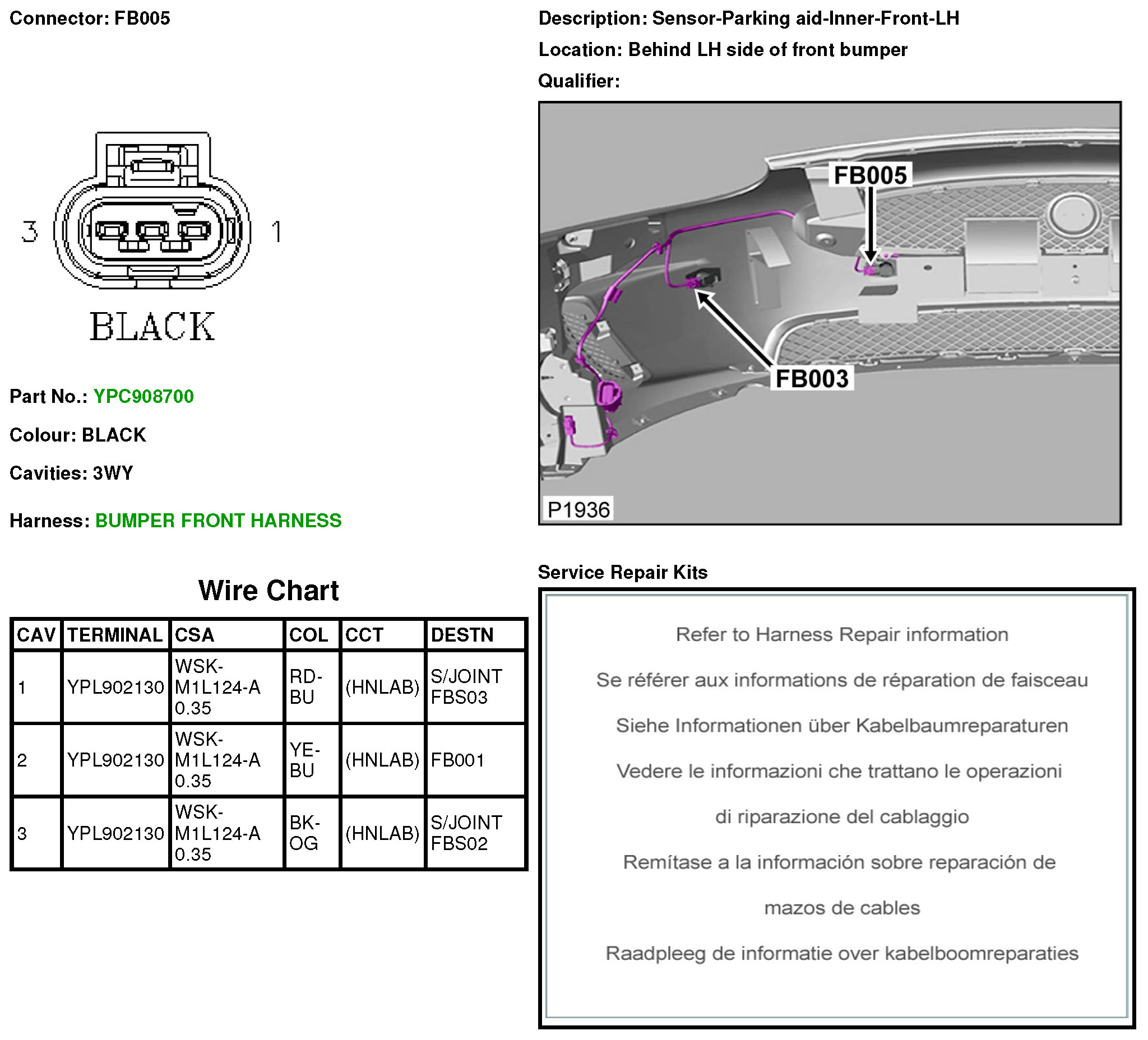

FB005 Sensor-Parking aid-Inner-Front-LH
FB005 Sensor-Parking aid-Inner-Front-LH
FB005
