Parking Assist Distance Sensor
>>

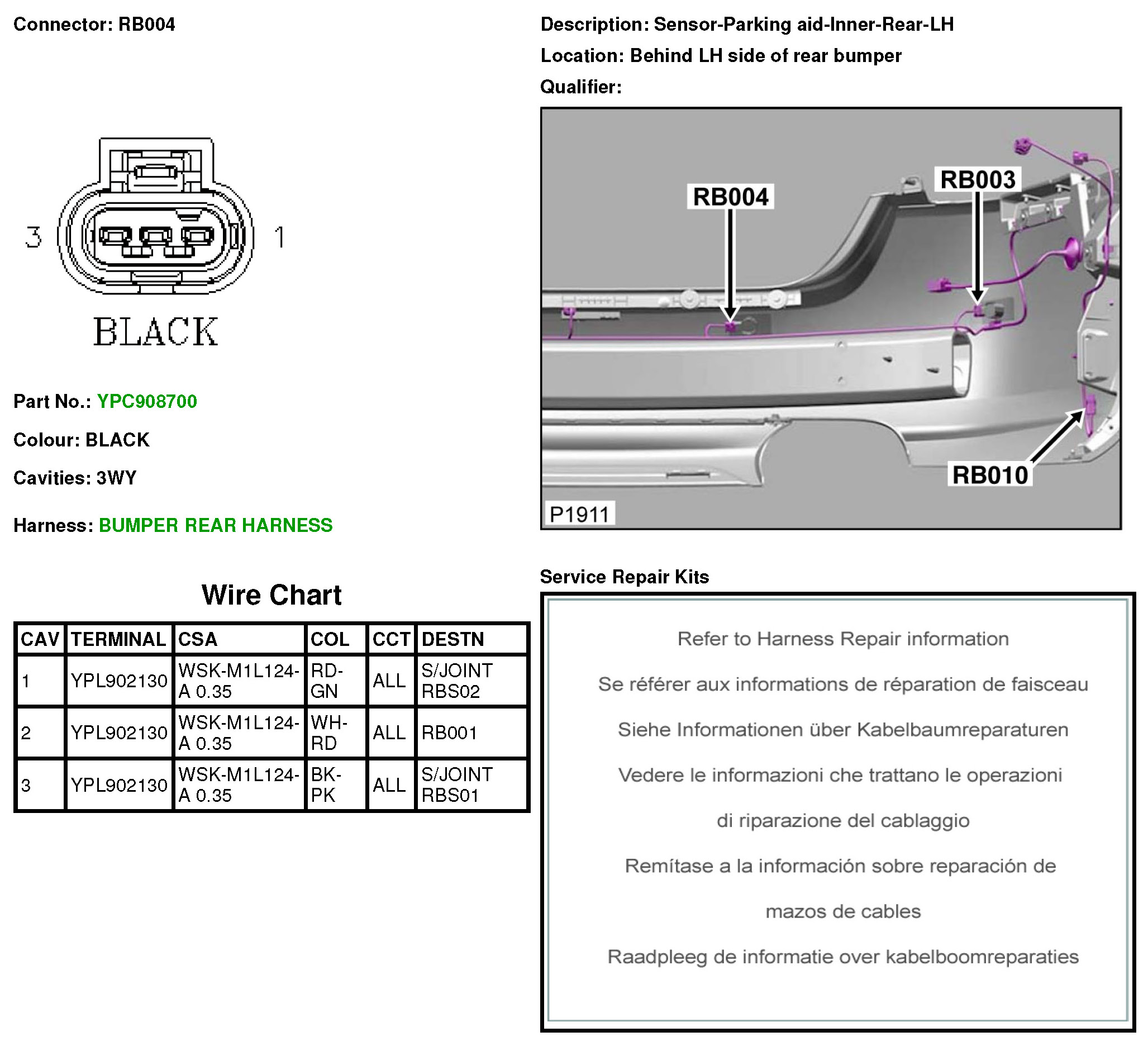

RB004 Sensor-Parking aid-Inner-Rear-LH
RB004 Sensor-Parking aid-Inner-Rear-LH
RB004
