XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Brake Control Module
>>

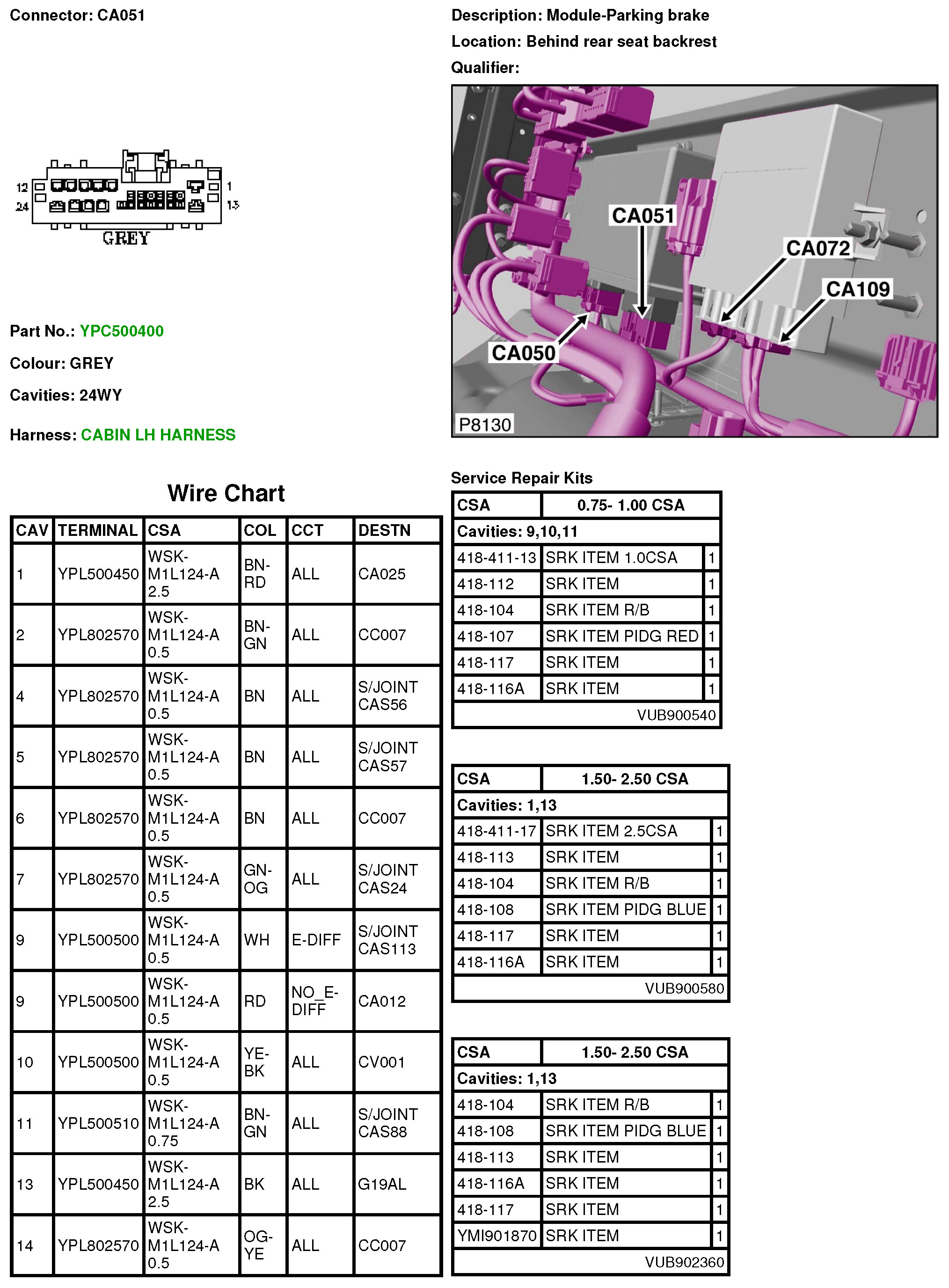

CA051 Module-Parking Brake
CA051 Module-Parking Brake
CA051
