Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>

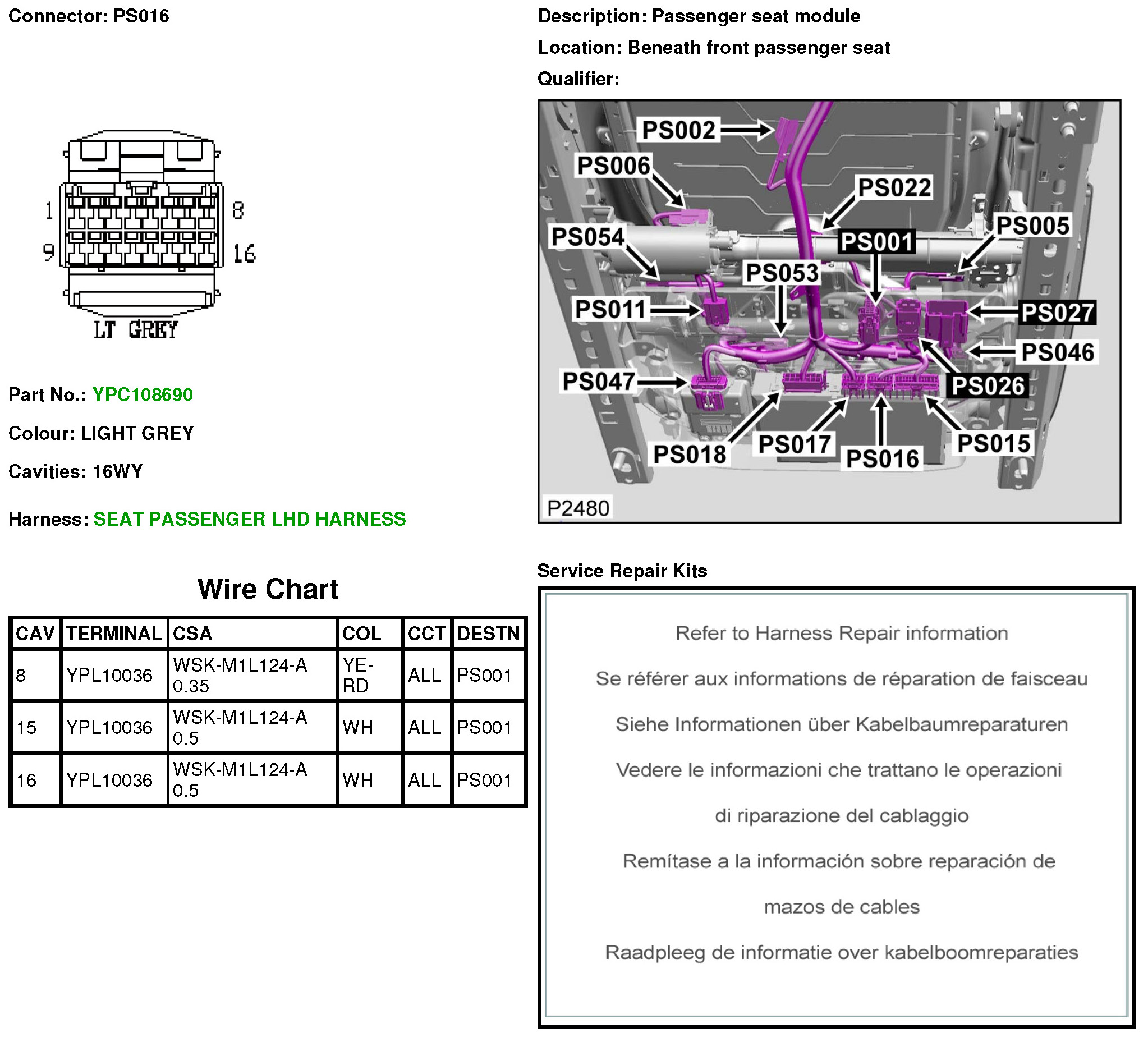

PS016 Passenger Seat Module
PS016 Passenger Seat Module
PS016
