Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio Tuner
>>

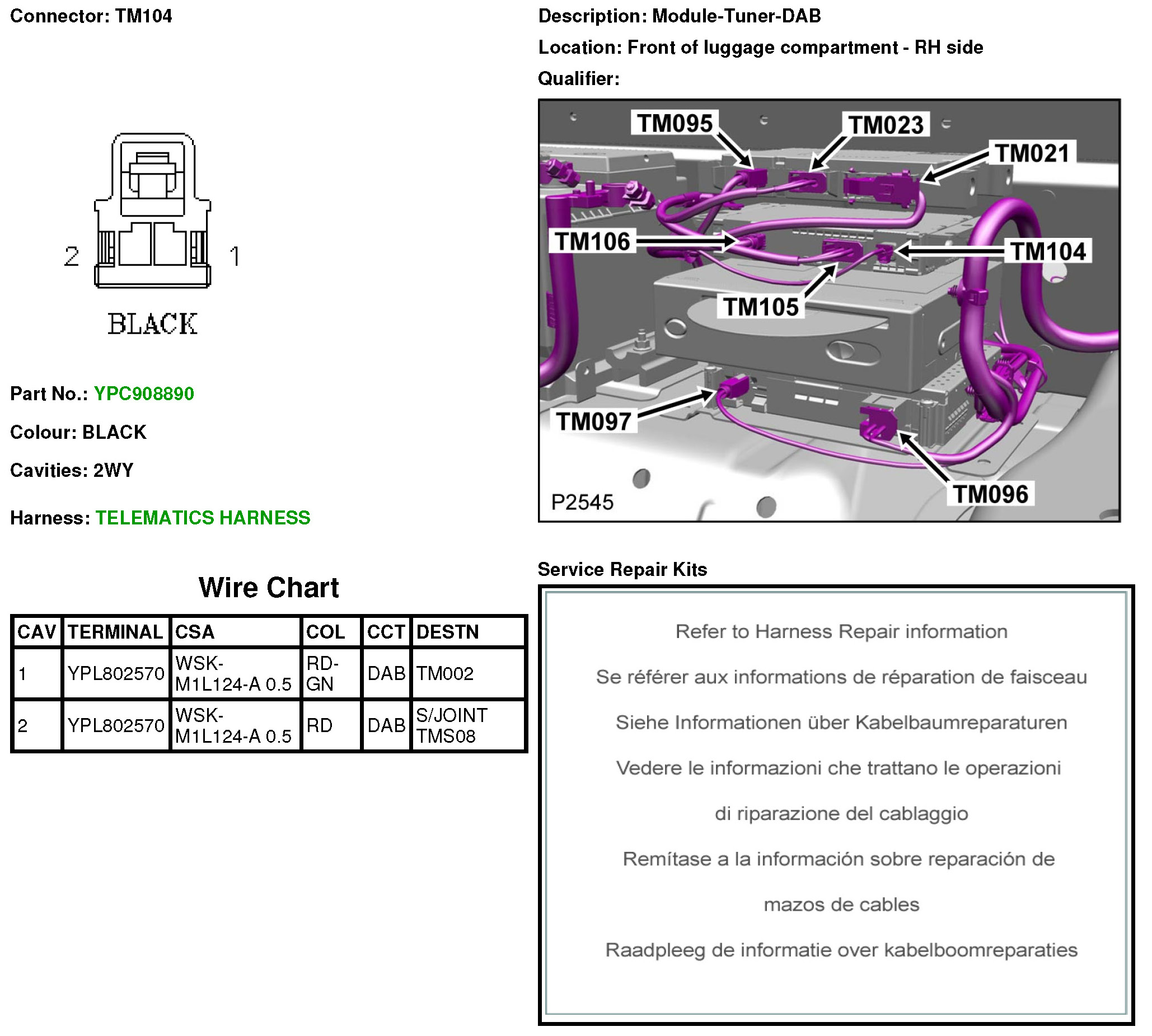

TM104 Module-Tuner-DAB
TM104 Module-Tuner-DAB
TM104
