Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Control Solenoid Valve
>>

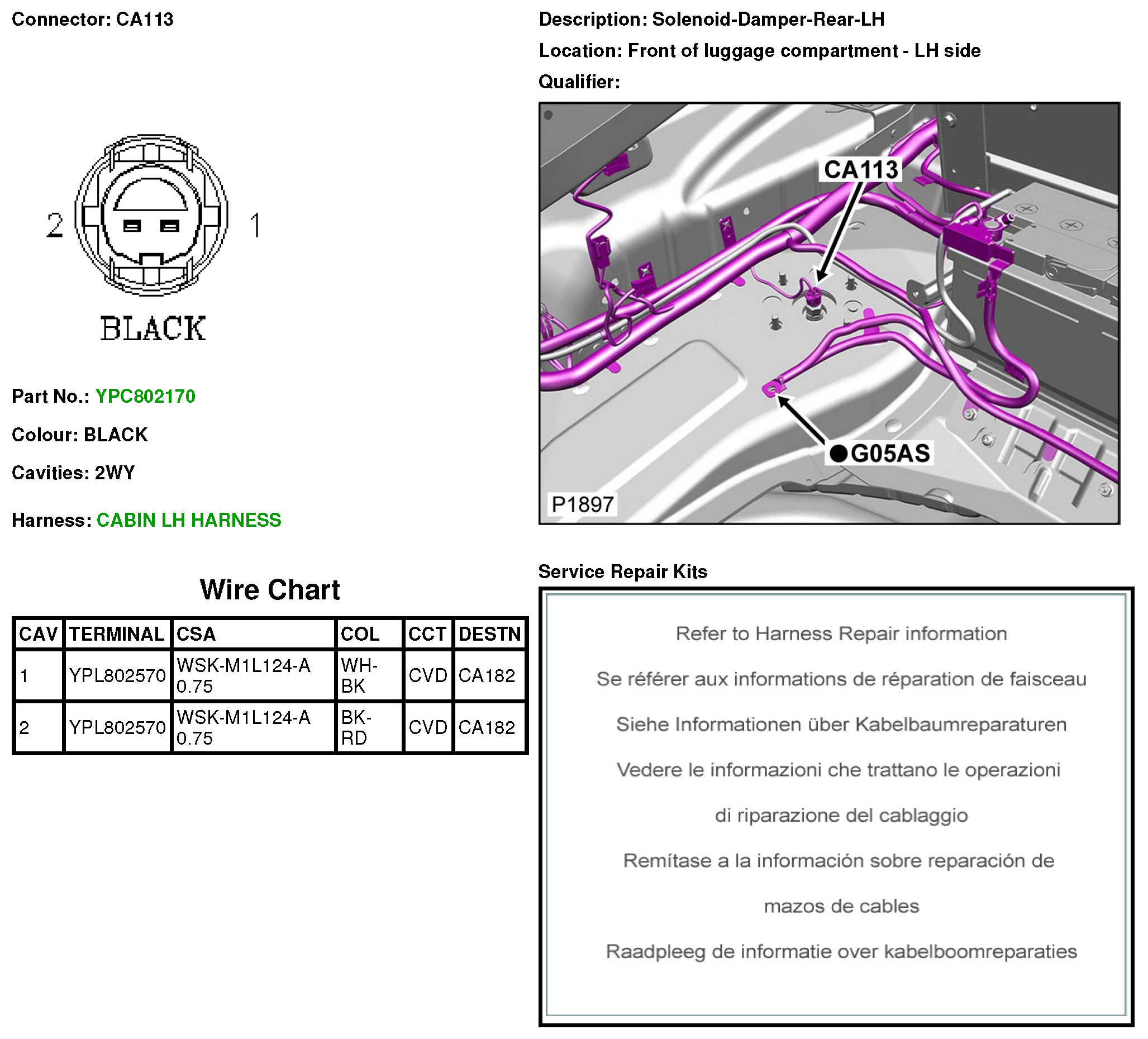

CA113 Solenoid-Damper-Rear-LH
CA113 Solenoid-Damper-Rear-LH
CA113
