Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>

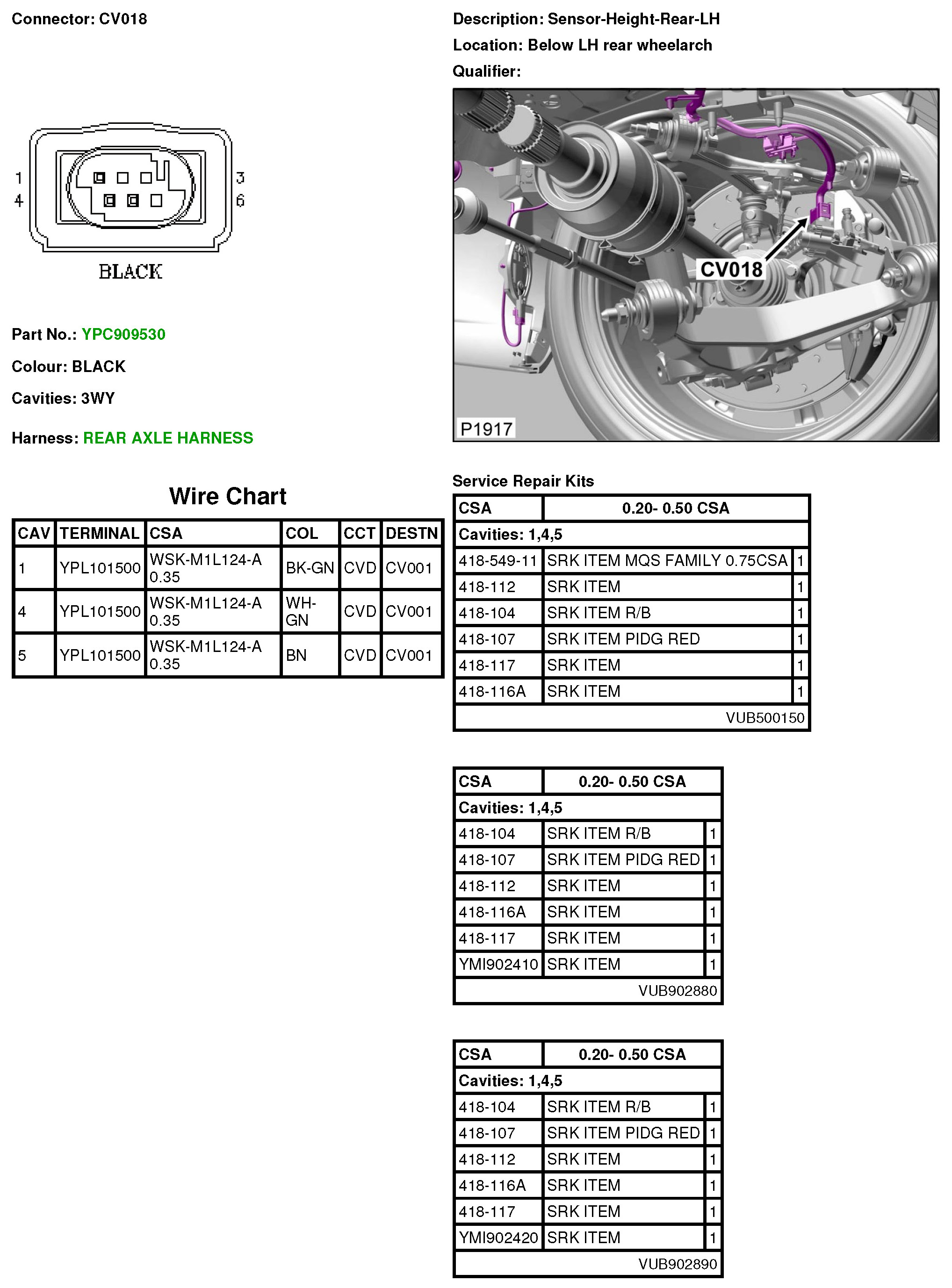

CV018 Sensor-Height-Rear-LH
CV018 Sensor-Height-Rear-LH
CV018
