Ride Height Sensor, Suspension Control
>>

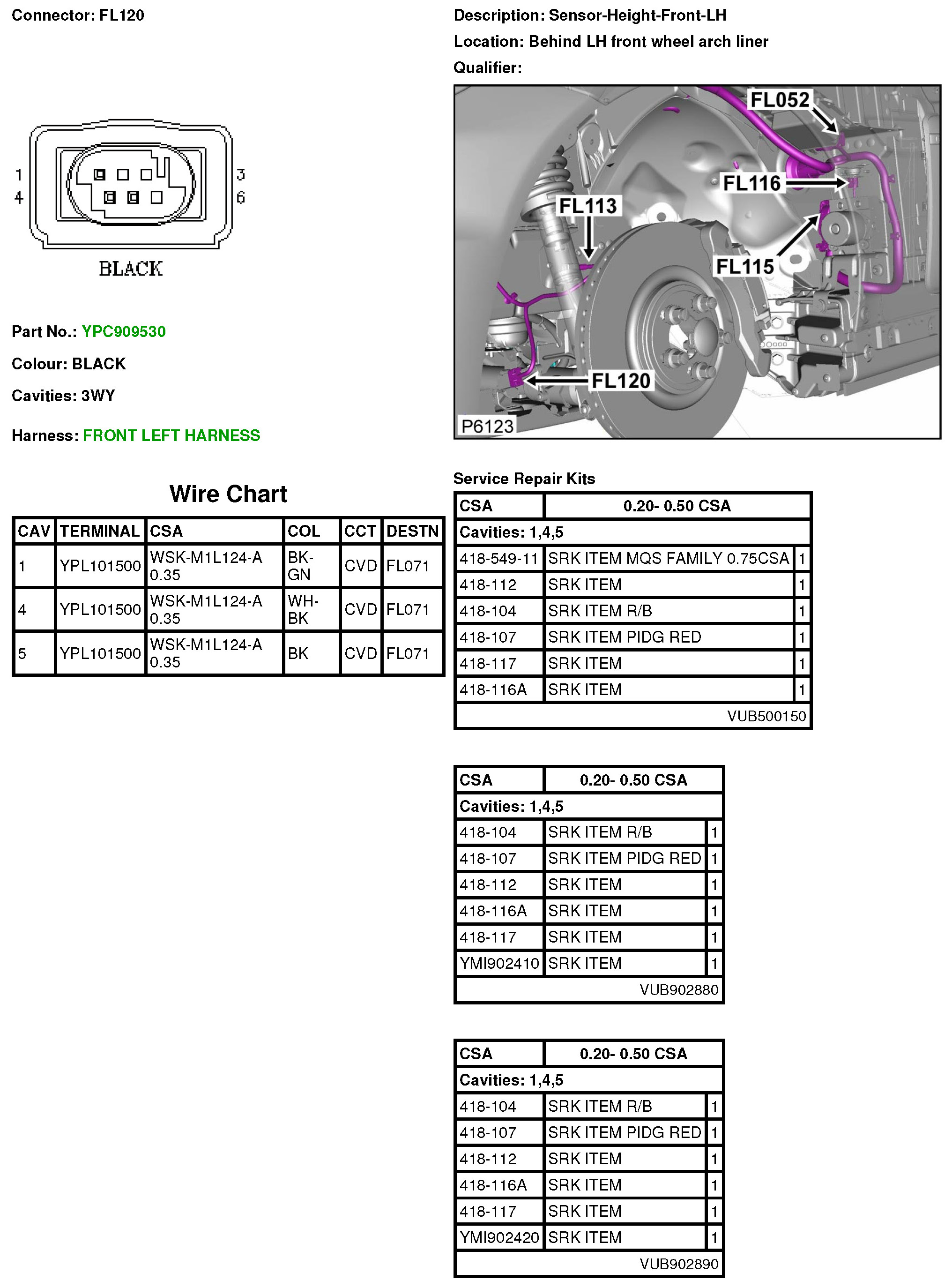

FL120 Sensor-Height-Front-LH
FL120 Sensor-Height-Front-LH
FL120
