XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Signal Processing Module
>>

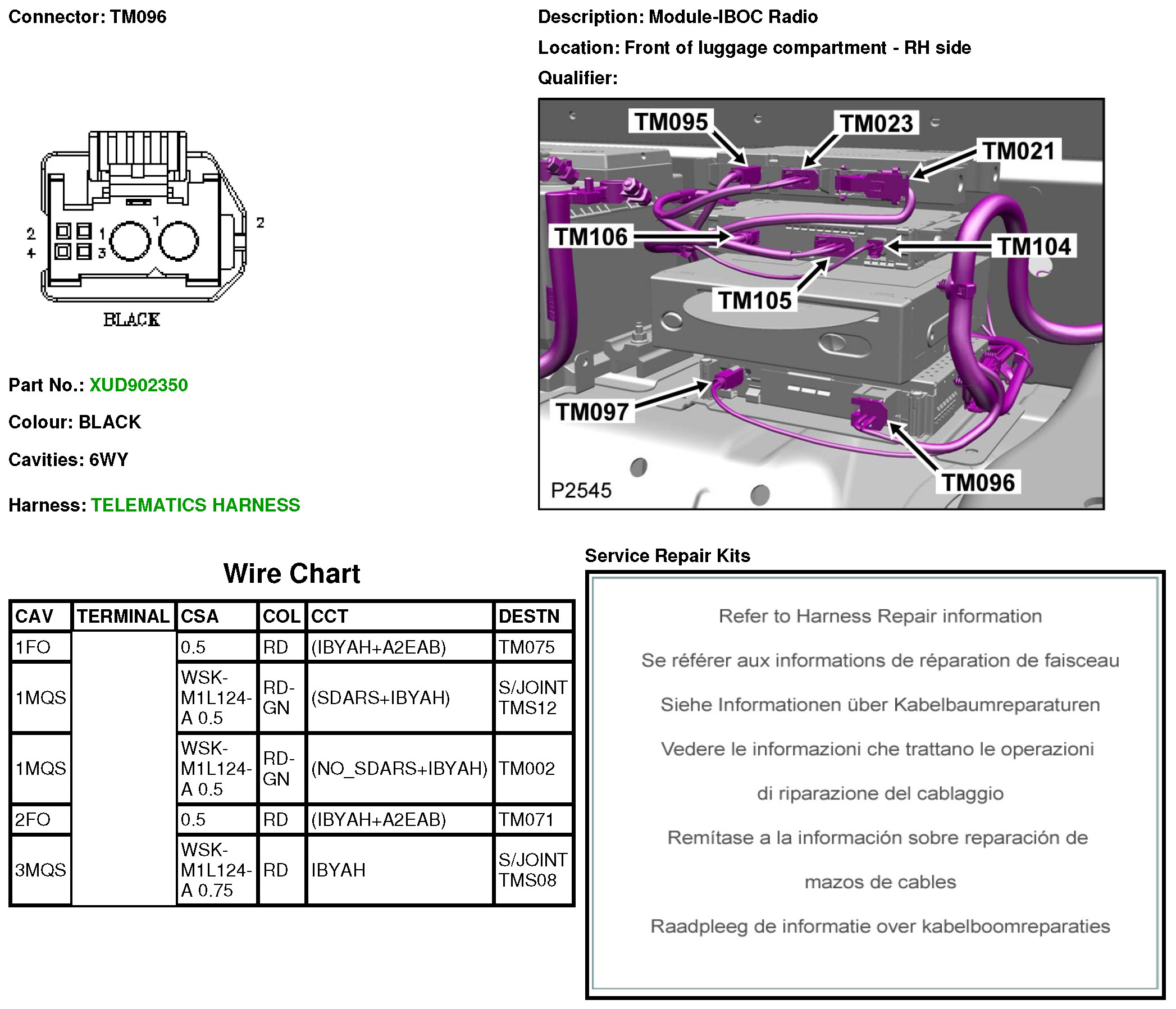

TM096 Module-IBOC Radio
TM096 Module-IBOC Radio
TM096
