Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
>>

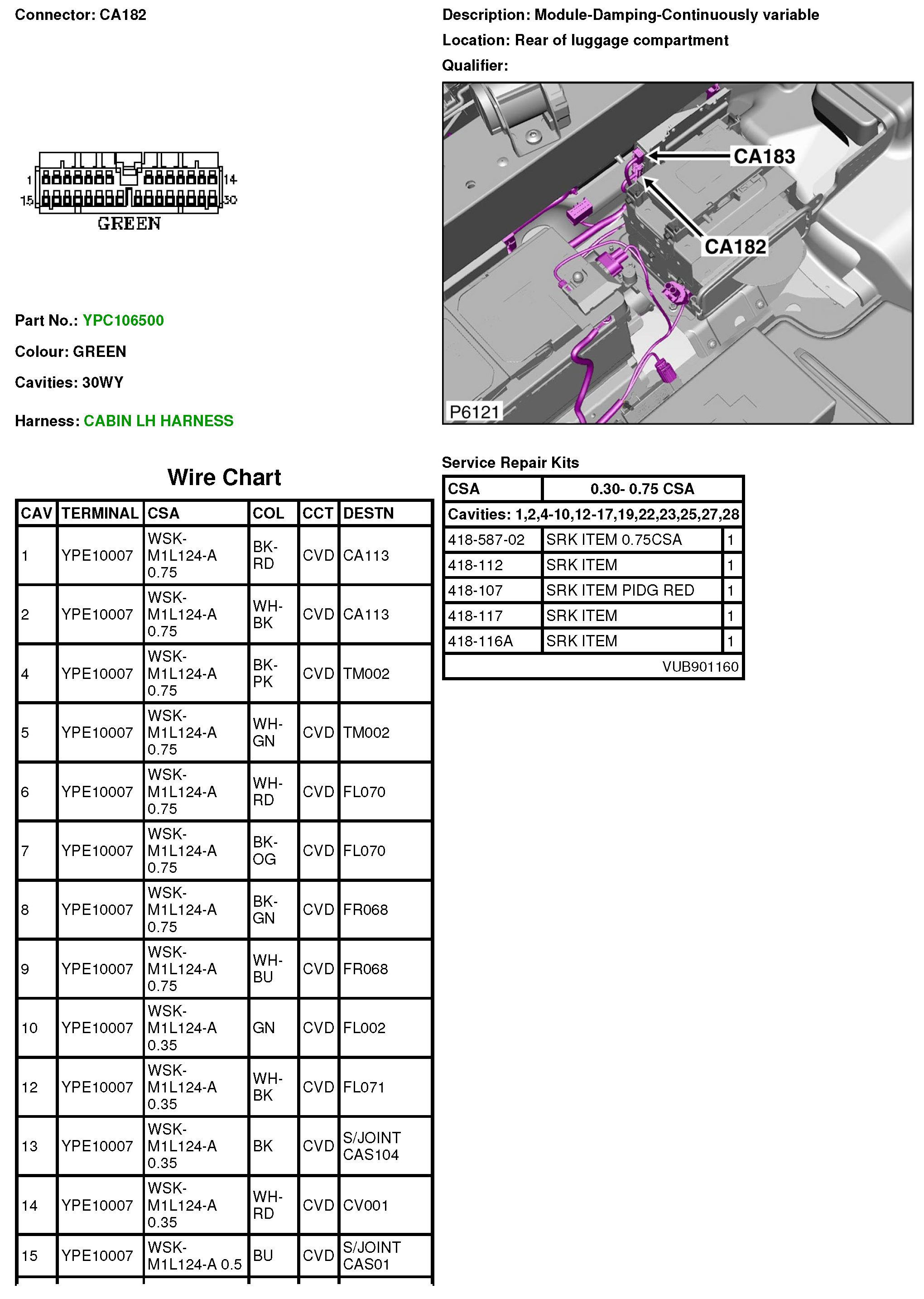

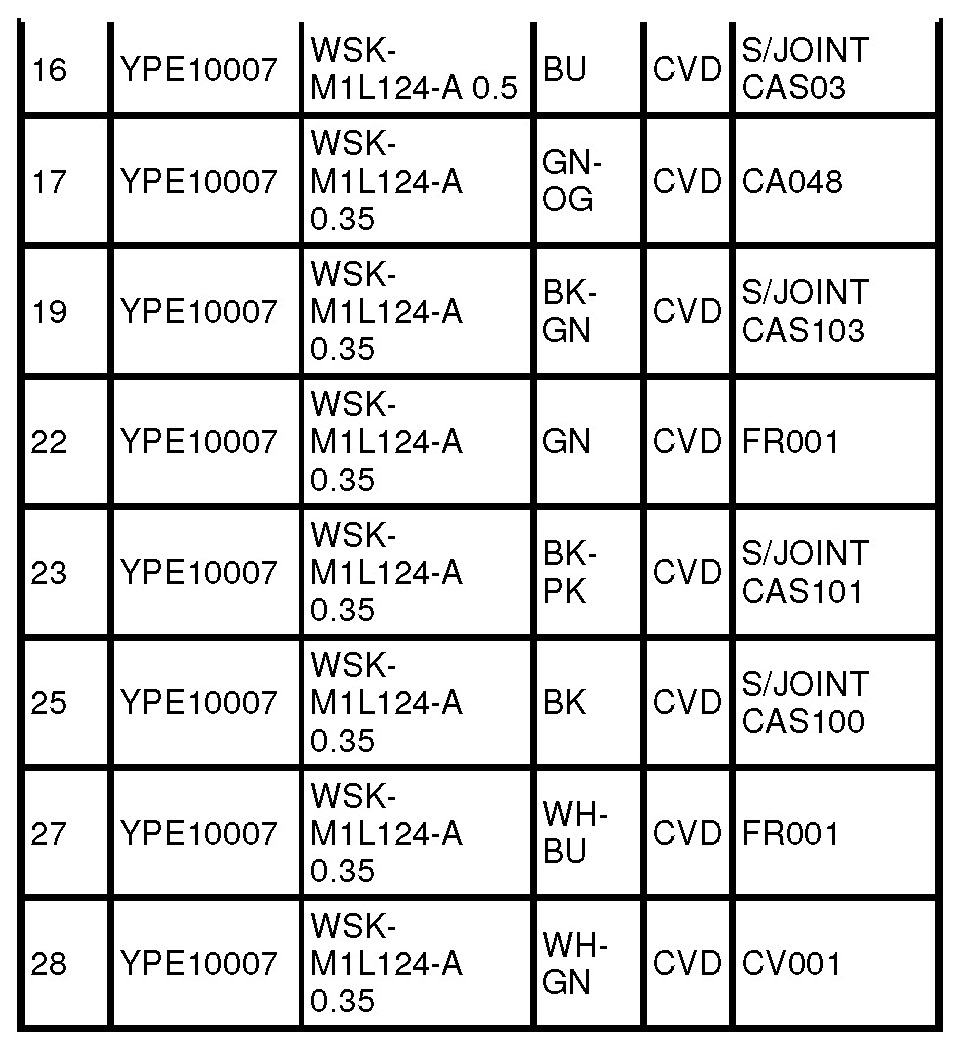

CA182 Module-Damping-Continuously Variable
CA182 Module-Damping-Continuously Variable
CA182
