XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Locations
>>

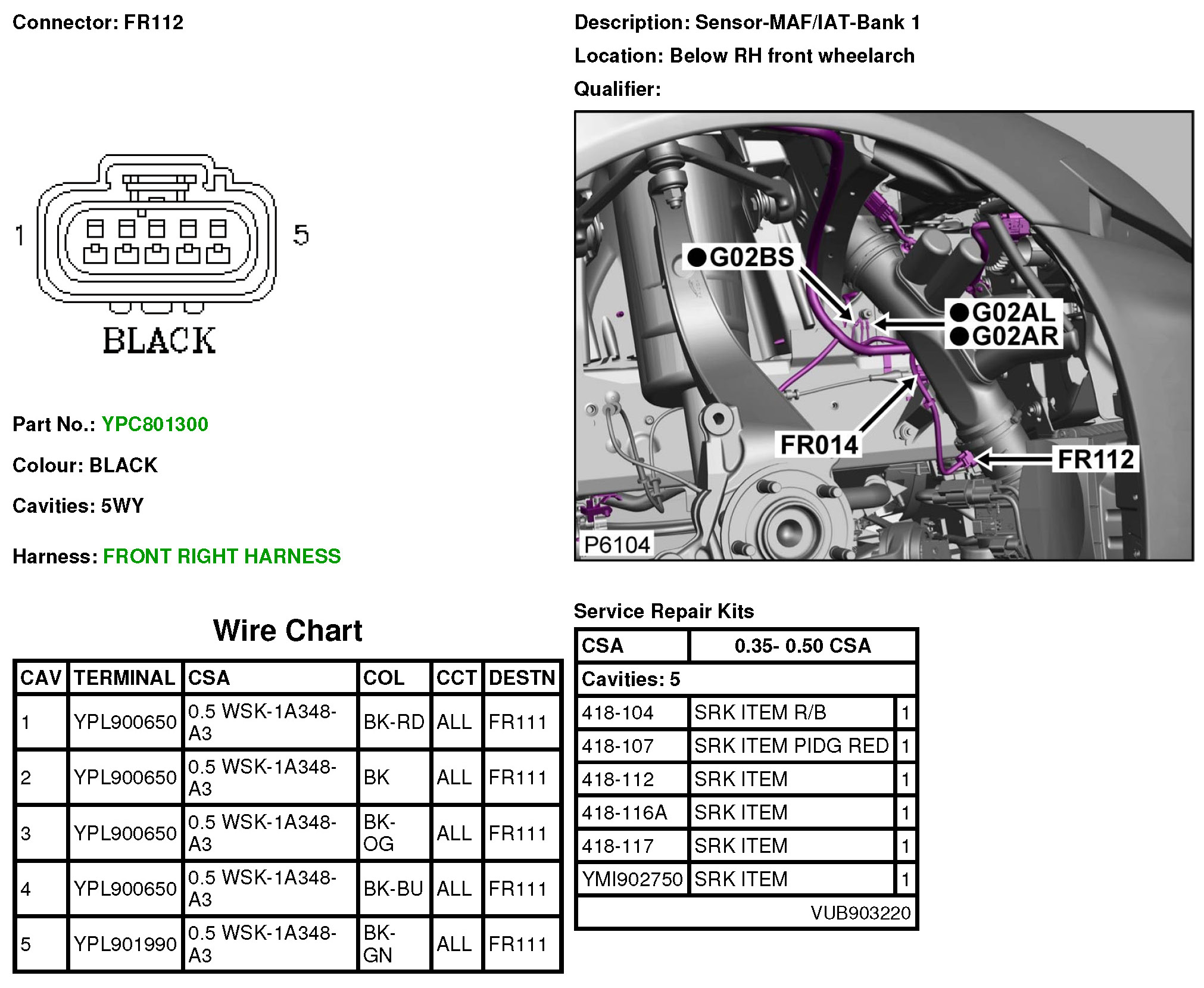

FR112 Sensor-MAF/IAT-Bank 1
FR112 Sensor-MAF/IAT-Bank 1
FR112
