Piston: Service and Repair

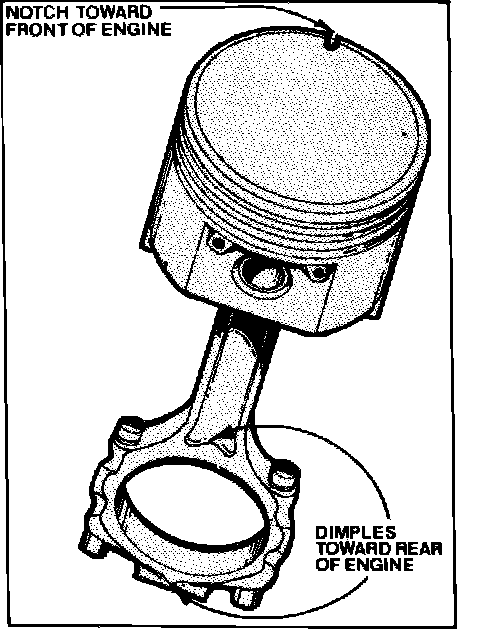

Fig. 7 Piston & rod assembly. 4-151:

Assemble piston to rod with notch on piston facing toward front of engine and the raised notch side of rod at bearing end facing toward rear of engine, Fig. 7.
