Oil Filter - Application/Usage
88amcjeep09Models
All 1988 & Prior Jeeps & Eagles With 4.2L Engine
Subject
Oil Filter Usage
Index
ENGINE
Date
October 31, 1988
No.
09-57-88 REVISION A
P-4596 (C09-57)
This bulletin supersedes Technical Service Bulletin #09-57-88, dated 10/3/88 which should be removed form your files. This new bulletin correctes an error in the type 1 oil filter connector thread dimension.
Two (2) types of oil filters are used on the 4.2L (258 C.I.D.) engine and are not interchangeable.

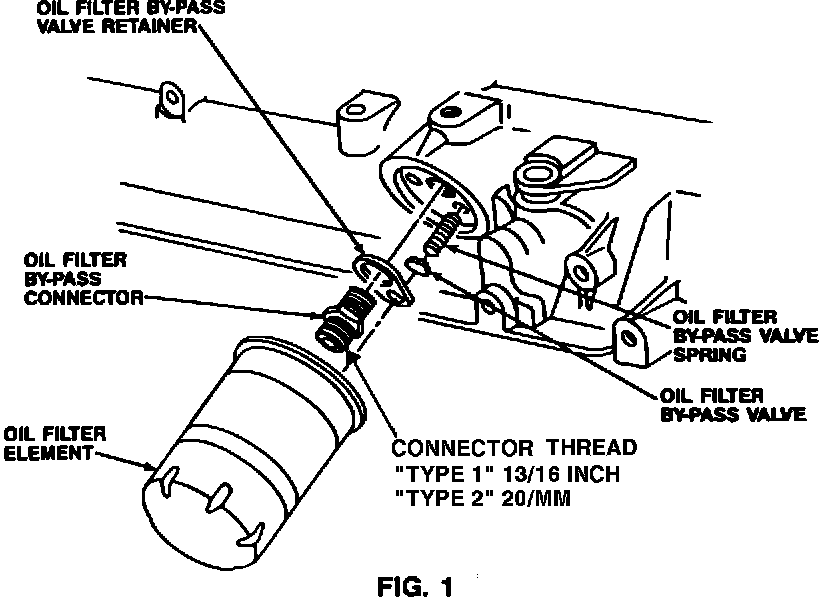

FIGURE 1:
TYPE 1 OIL FILTERS USED ON 1986 AND PRIOR 4.2L ENGINES DO NOT HAVE AN INTERNAL BYPASS. In the event the oil filter becomes blocked a bypass system located in the engine block will ensure continuous oil flow (Figure 1). THE "TYPE 1" OIL FILTER HAS A 13/16 INCH CONNECTOR THREAD AND MUST NOT BE USED ON 1987 AND LATER 4.2L ENGINES.
TYPE 2 OIL FILTER USED ON 1987 AND LATER 4.2L ENGINES HAS AN INTERNAL BYPASS. In the event the oil filter becomes blocked the bypass system in the oil filter will ensure continuous oil flow. THE "TYPE 2" OIL FILTER HAS A 20 MM CONNECTOR THREAD AND MUST NOT BE USED ON 1986 AND PRIOR 4.2L ENGINES.
FIGURE 2:

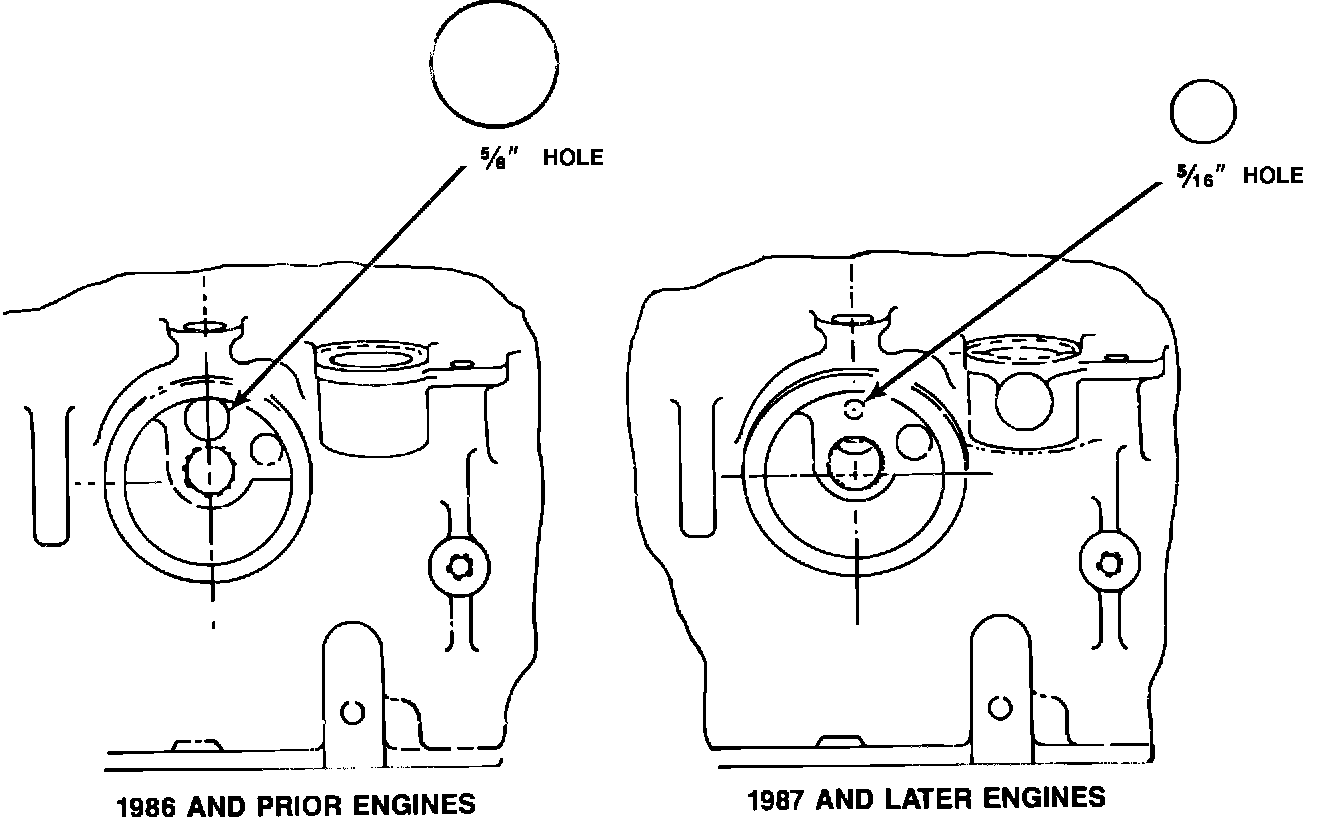

CAUTION: WHEN REPLACING AN ENGINE OR SHORT BLOCK, CHECK THE SIZE OF THE HOLE JUST ABOVE THE OIL FILTER CONNECTOR MOUNTING STUD (FIGURE 2). 1986 AND PRIOR ENGINES HAVE A 5/8 INCH HOLE. 1987 AND LATER ENGINES HAVE A 5/16 INCH HOLE. THESE ENGINES ARE NOT INTERCHANGEABLE.
POLICY: Information only
