Wiper Motor: Service and Repair

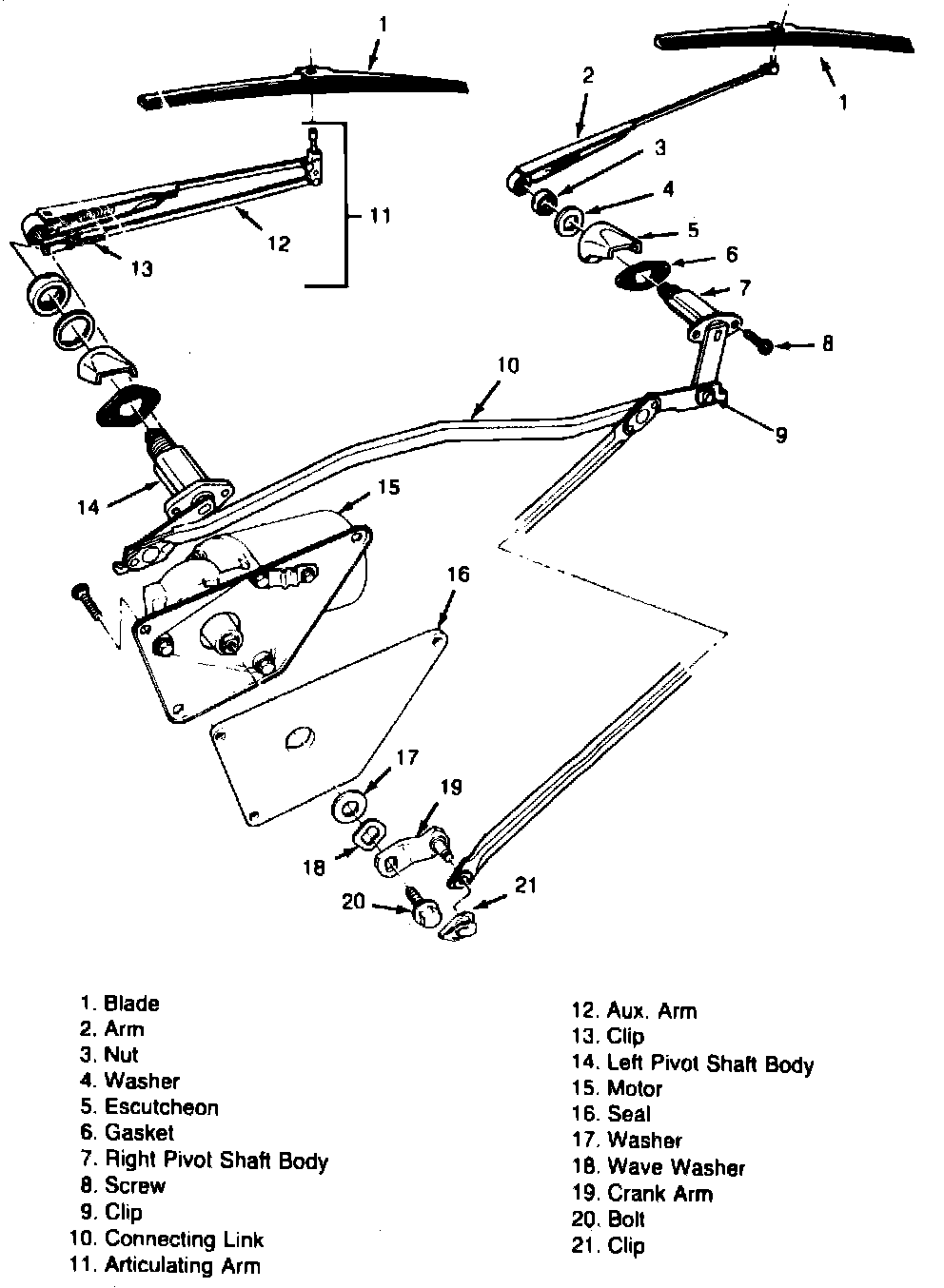

Fig. 8 Windshield wiper system. Grand Wagoneer, J-10 & 20 Truck & 1980-83 Cherokee & Wagoneer:

GRAND WAGONEER, J-10 & 20 TRUCK & 1980-83 CHEROKEE & WAGONEER

1. Disconnect battery ground cable.
2. Remove bolts retaining wiper motor adapter plate to dash panel.
3. Disconnect wiper motor electrical connector from motor.
4. Pull wiper motor and linkage outward to expose drive link to crank pin retaining clip.
5. Using a suitable screwdriver, raise locking tab up and slide retaining clip off of crank pin.
6. Remove wiper motor assembly from vehicle.
7. Reverse procedure to install.
