Symptom Related Diagnostic Procedures

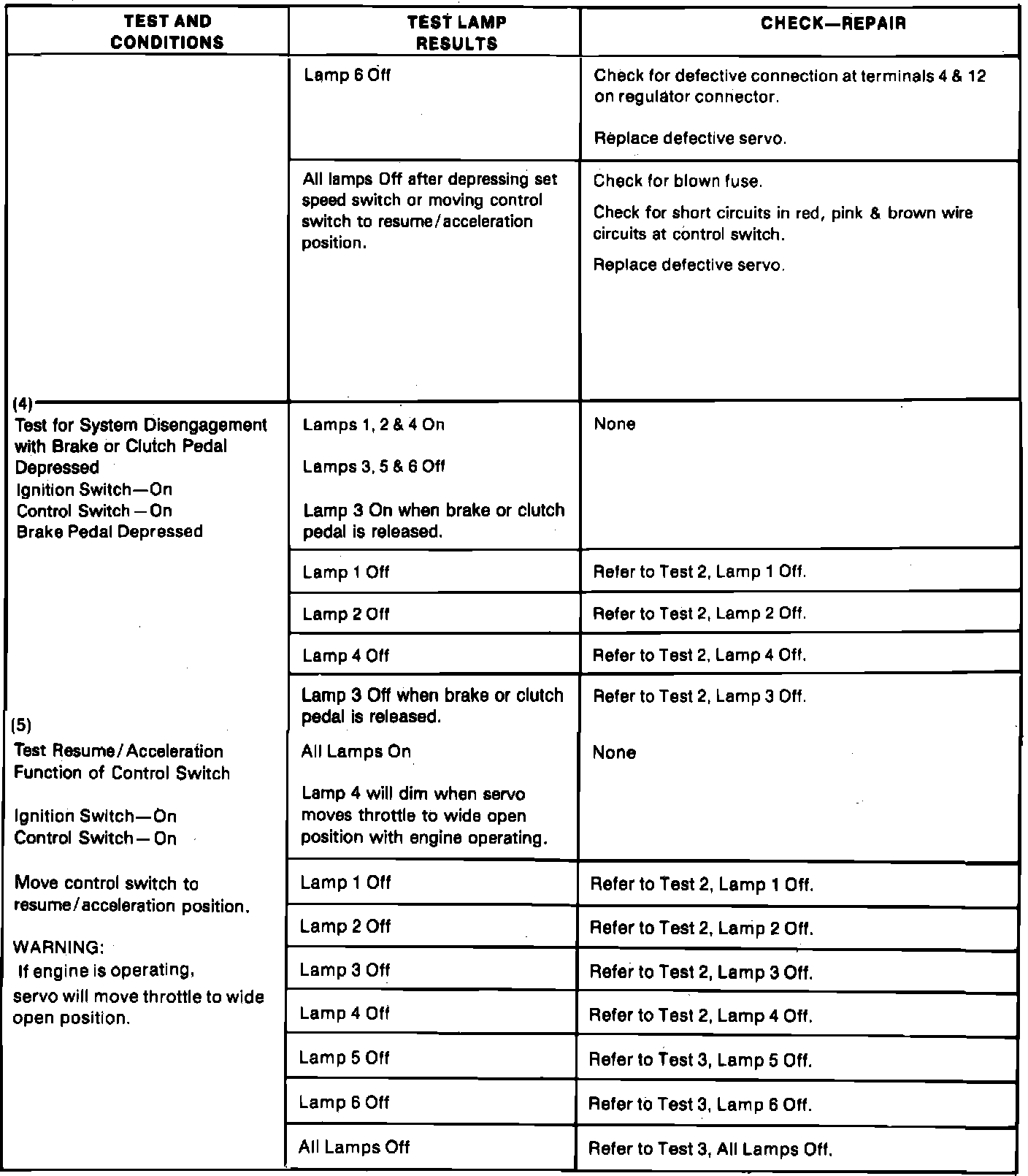

Fig. 11 Cruise command troubleshooting chart (Part 1 of 2). 1982-83 models:

Fig. 11 Cruise command troubleshooting chart (Part 2 of 2). 1982-83 models:

Whenever a Cruise Command malfunction occurs, first ensure that the wiring harness is properly connected to the regulator. A poor connection can cause a complete or intermittent system malfunction, resulting in a non-testable flaw, or a misdiagnosed regulator malfunction.
