Connecting Rod: Service and Repair

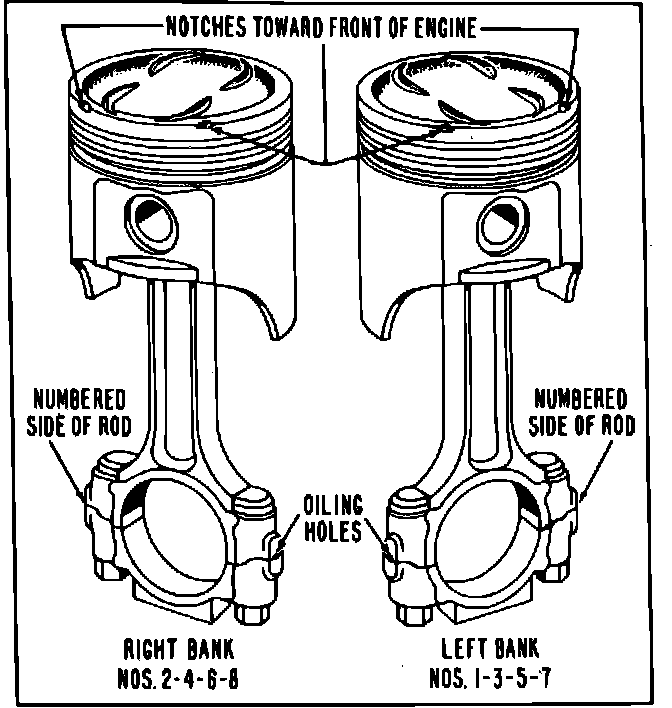

Fig. 12 Piston & rod assembly. V8-304 & 360:






Pistons and rods should be assembled and installed as shown in Fig. 12.
