Home >> Jeep >> 1983 >> Scrambler L6-258 4.2L VIN C 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Part 1

Part 1

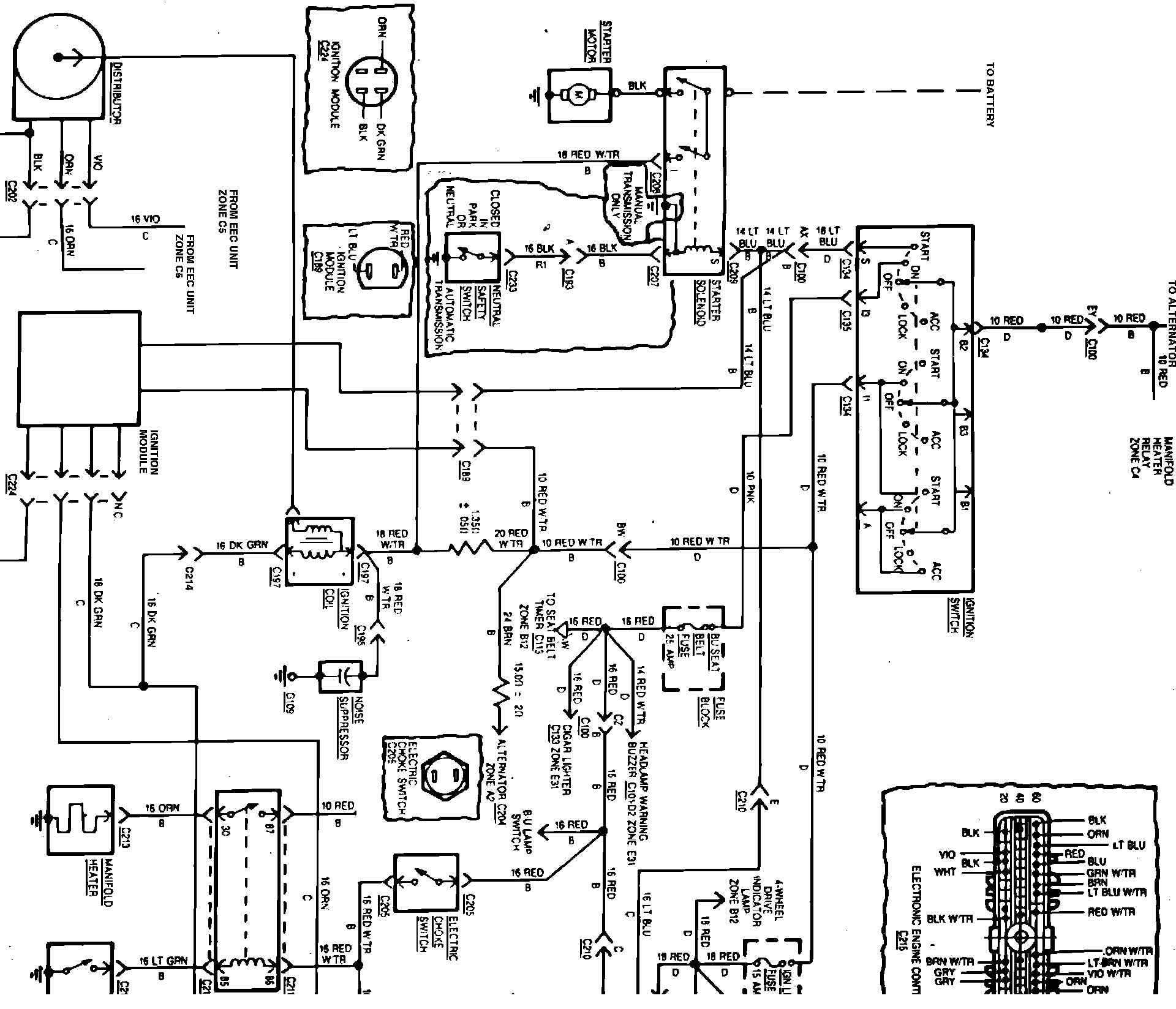

Fig. 11 Computerized Engine Control Wiring Circuit (Part 1 Of 3). W/6 Cylinder Engine:

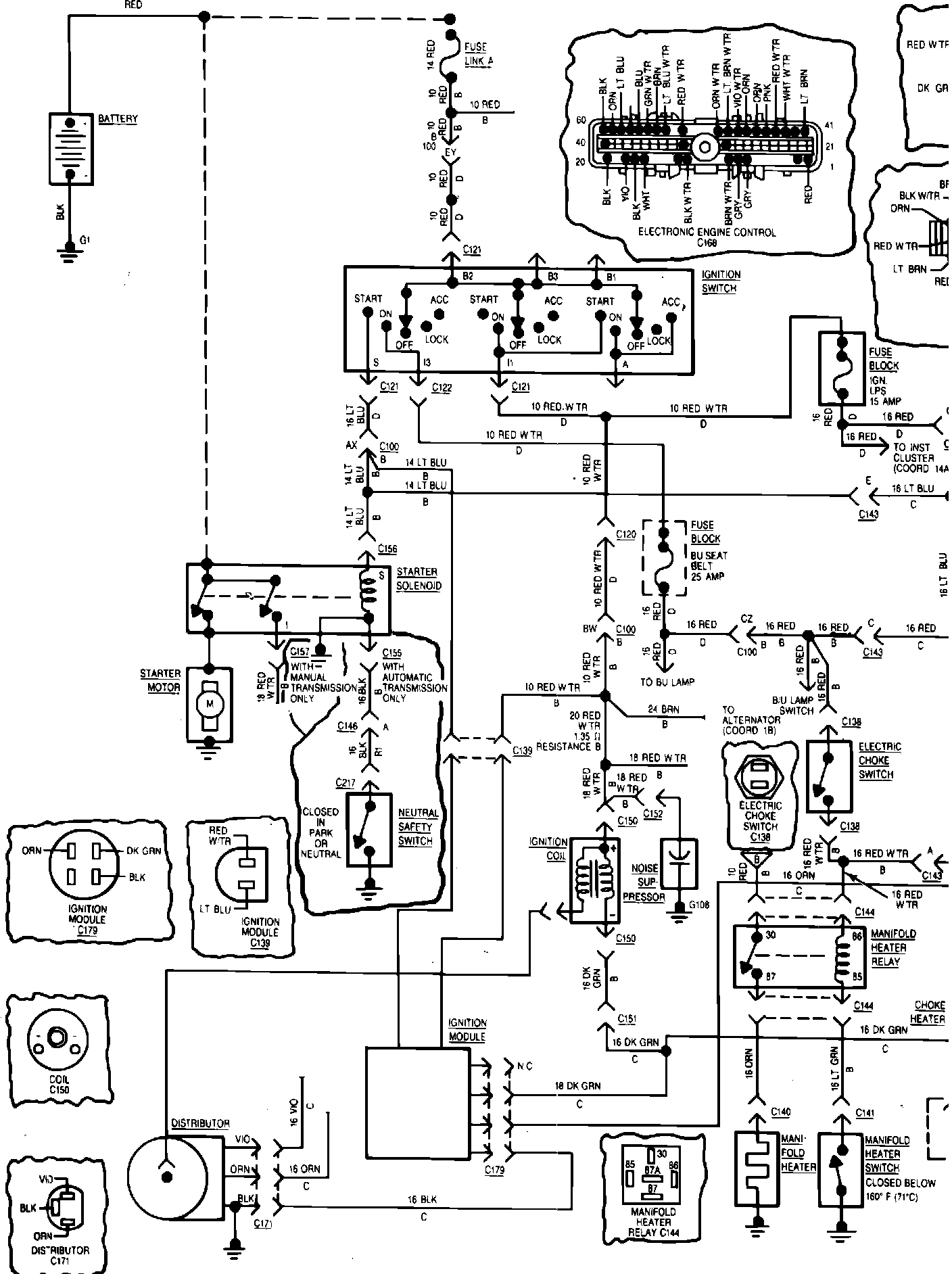

Fig. 10 Engine Wiring Circuit (Part 1 Of 4). 1983-84 6 Cylinder Engine:
