Part 2

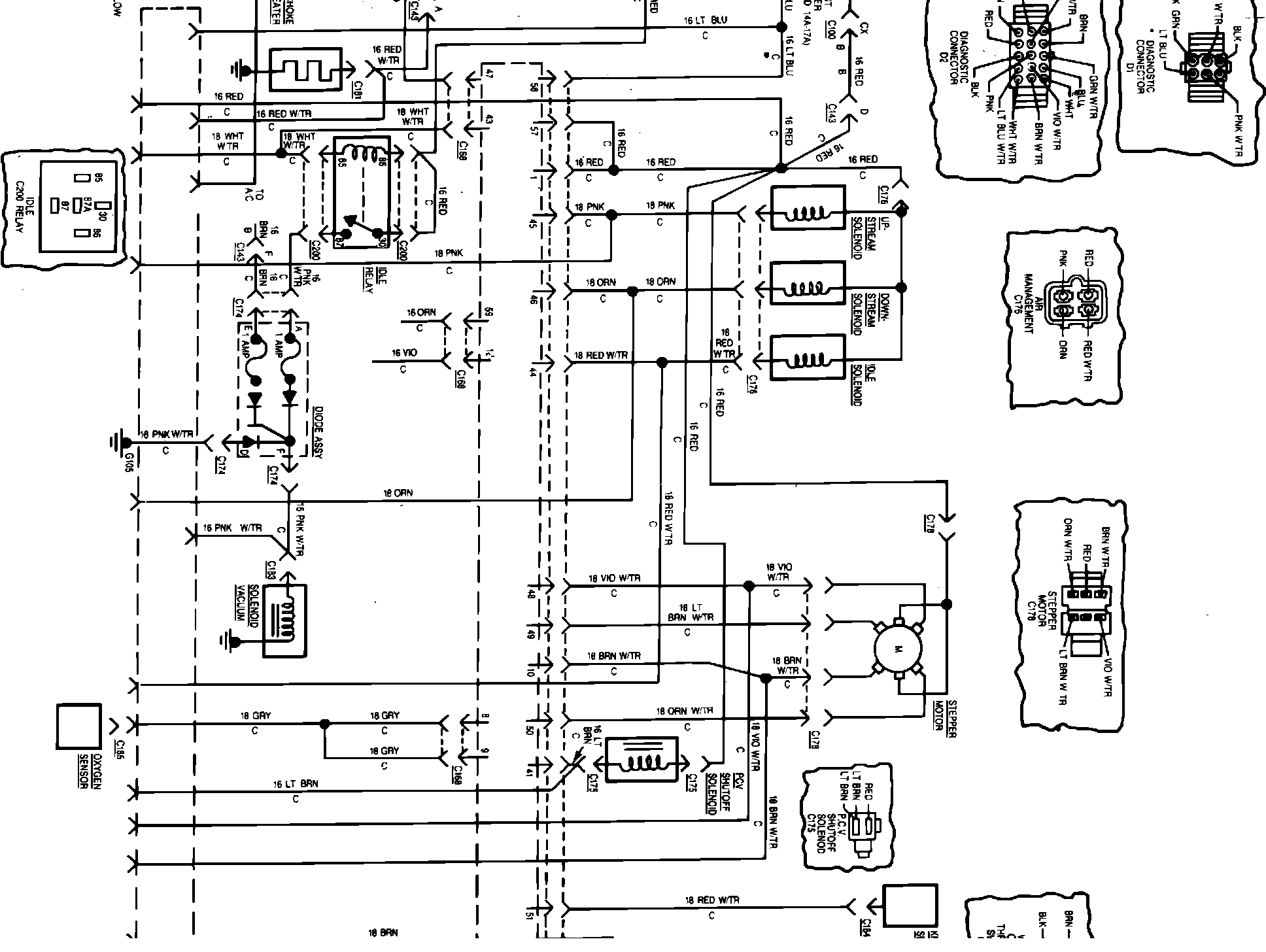

Fig. 11 Computerized Engine Control Wiring Circuit (Part 2 Of 3). W/6 Cylinder Engine:



Fig. 10 Engine Wiring Circuit (Part 2 Of 4). 1983-84 6 Cylinder Engine:
