Torque Specifications

Front and Rear Differential Torque Specifications

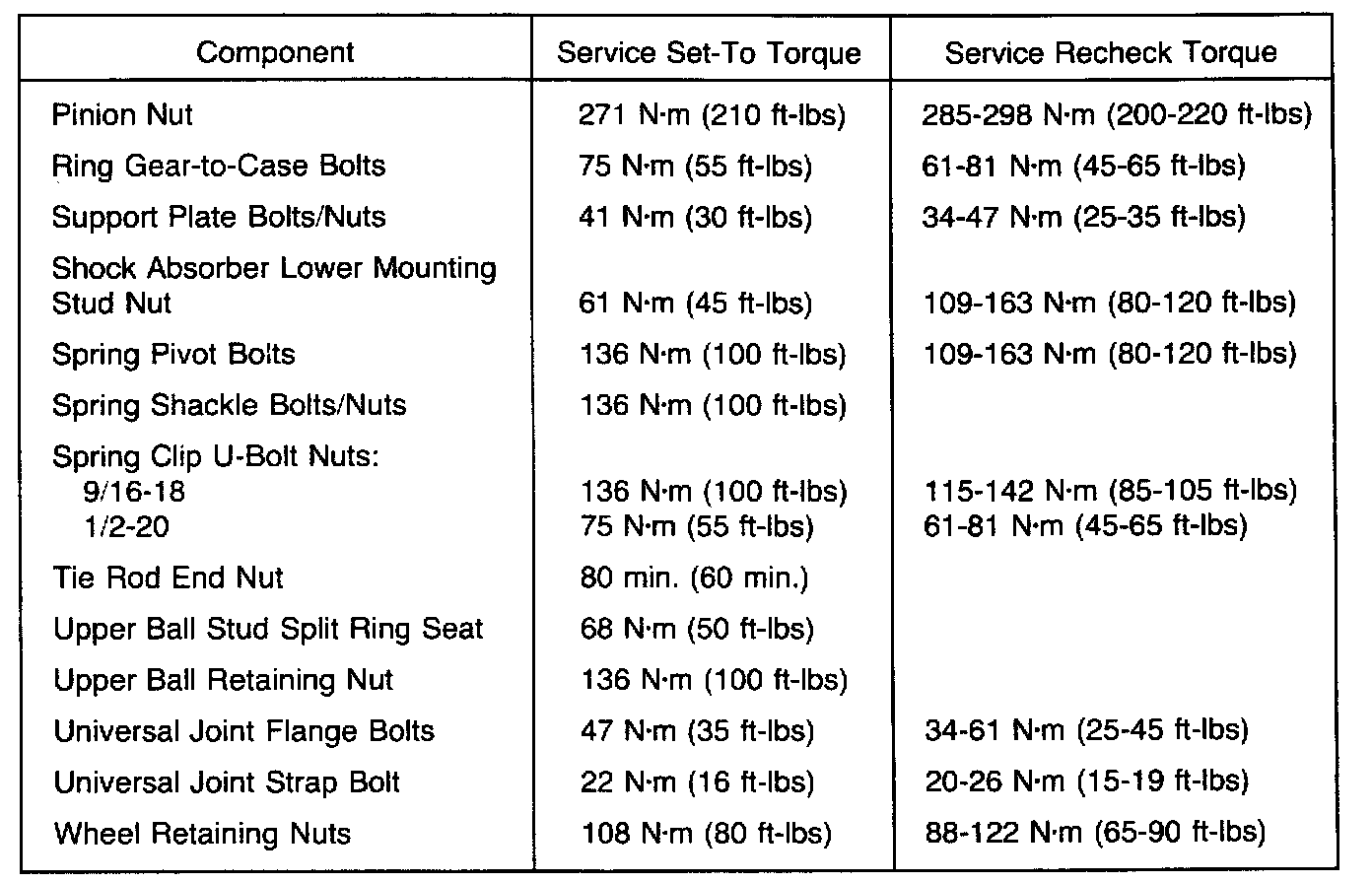

Front Differential Specifications
Model 44

Torque Specifications:

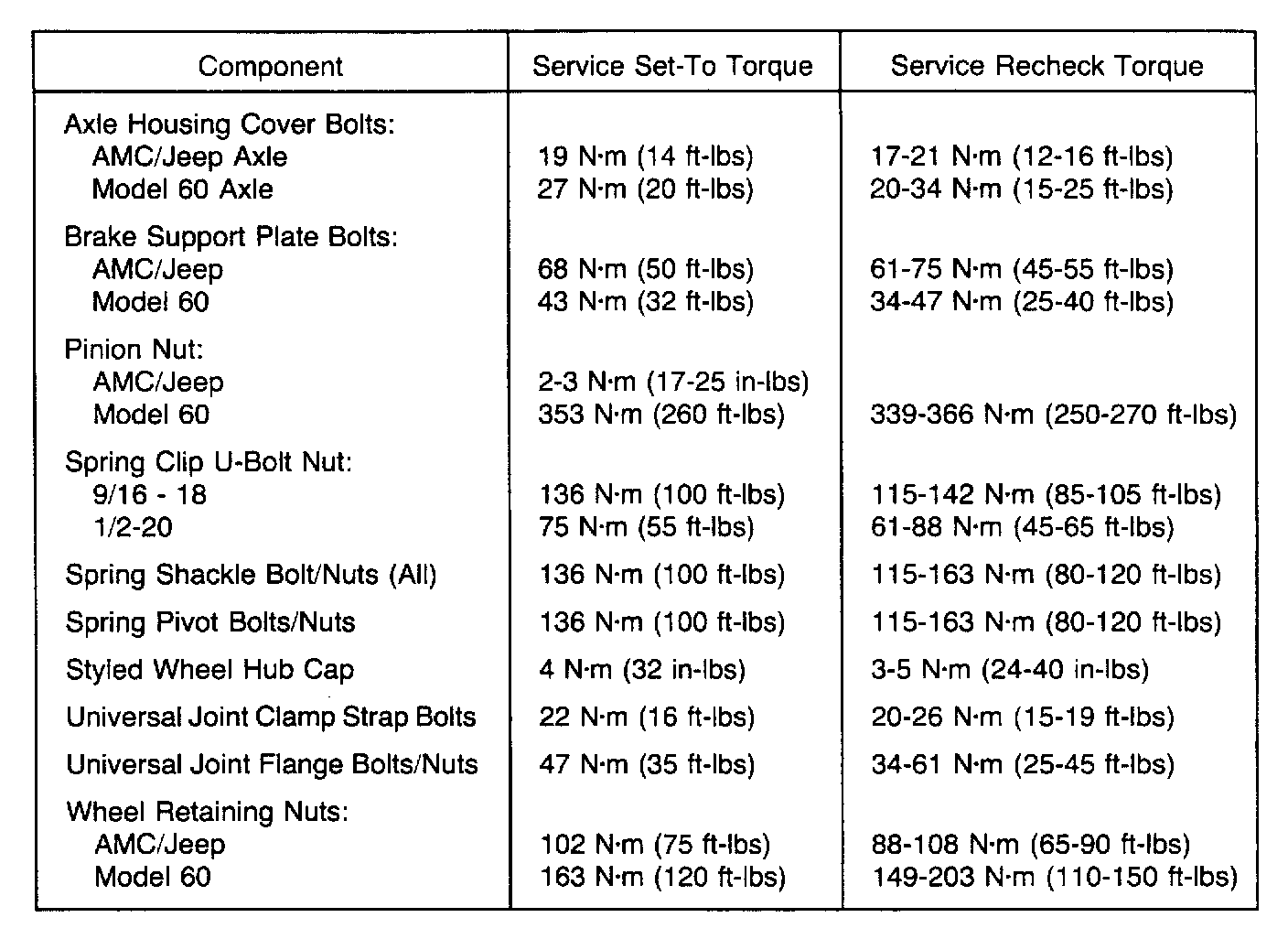

Continued:

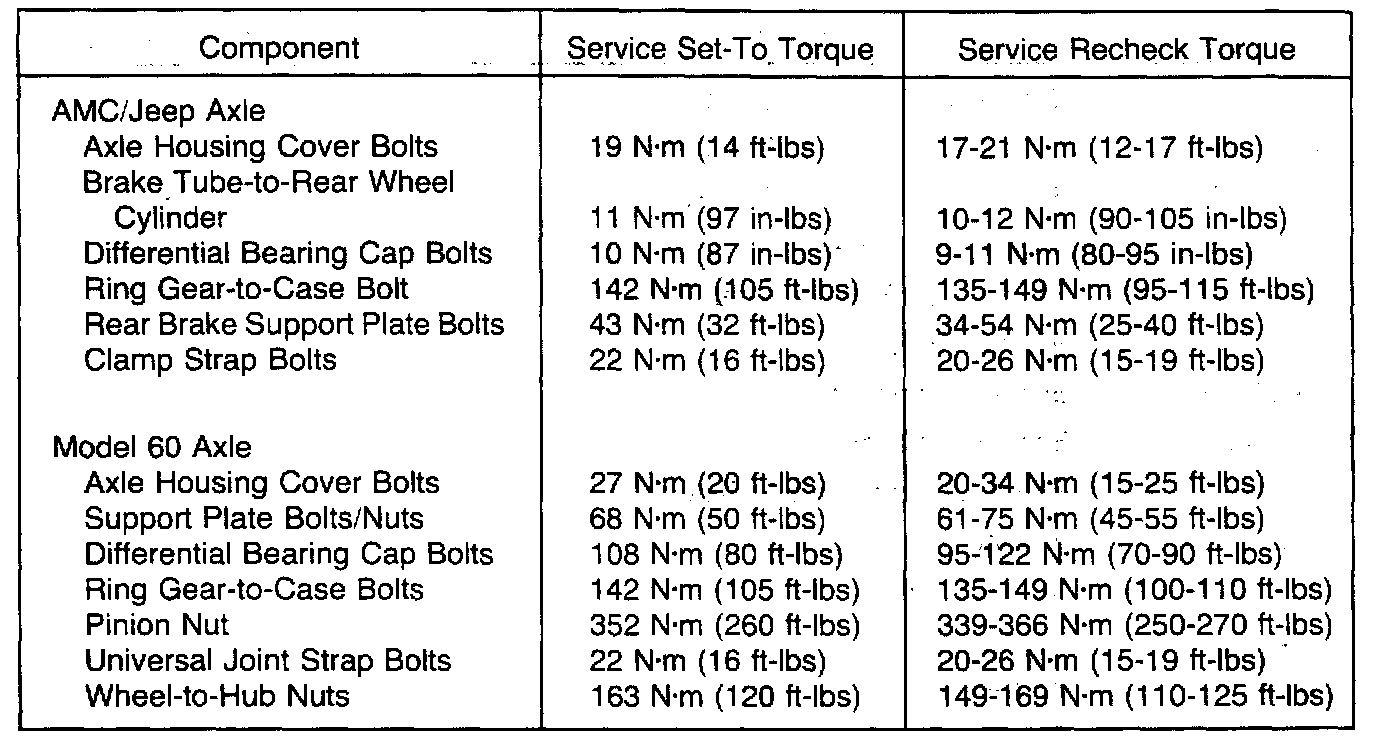

Rear Differential Specifications

Torque Specifications:

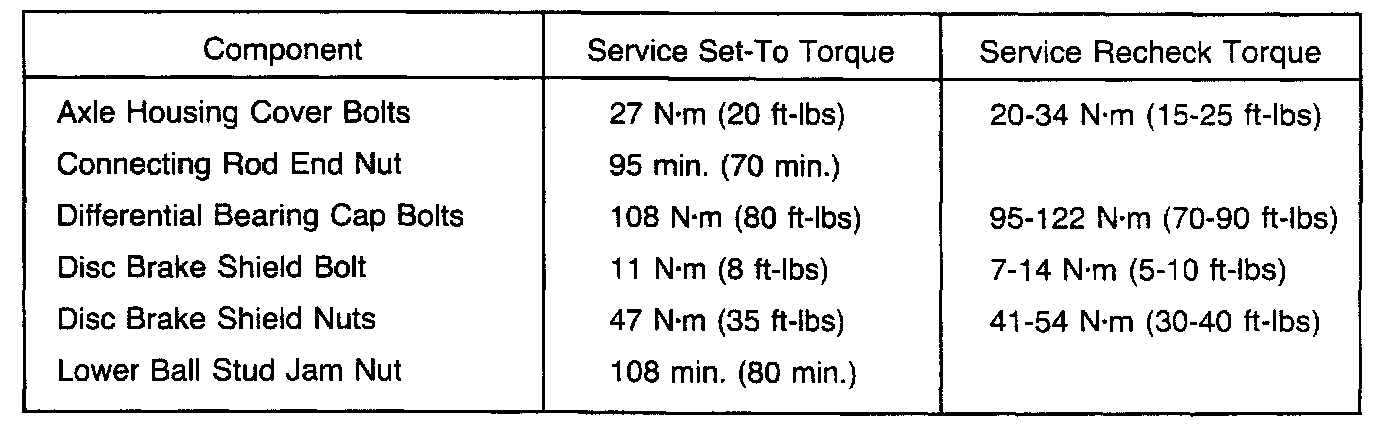

Continued:

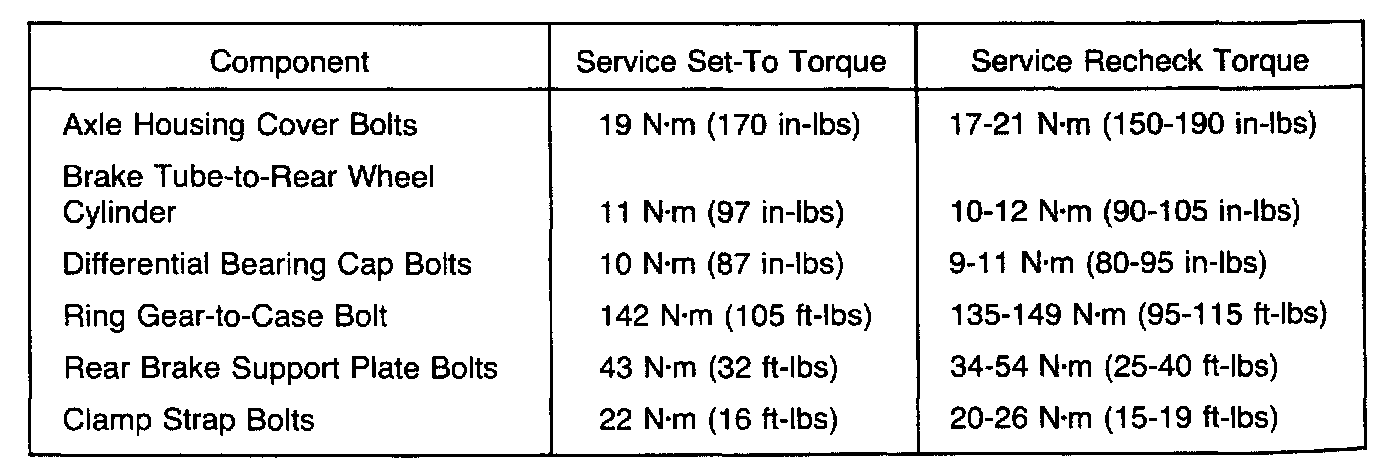

Trac-loc Differential Torque Specifications:
