Clearance and Design Specifications

Model 904 H,D Specifications

The model 904 H-D. transmission has a wide ratio planetary gear set Ratios are:

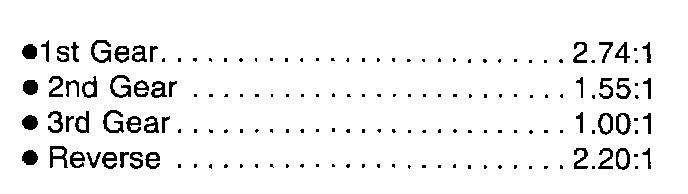

Gear Ratios:

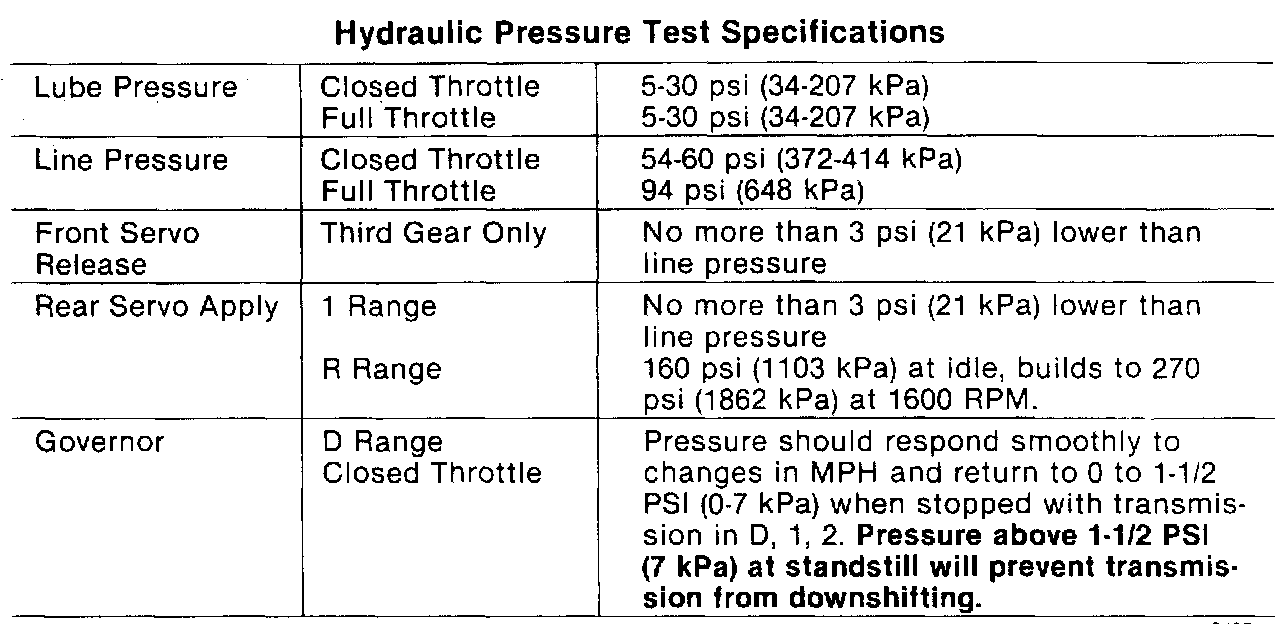

Hydraulic Pressure Specifications:

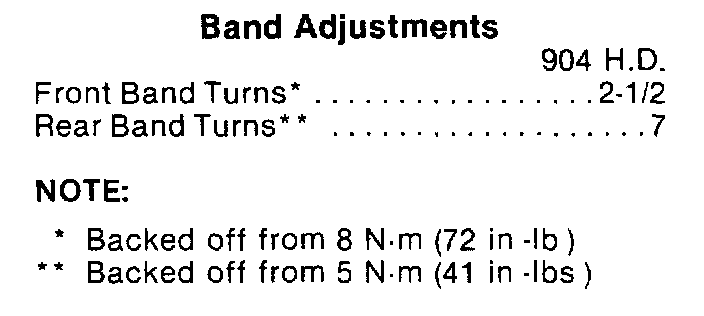

Band Adjustments:

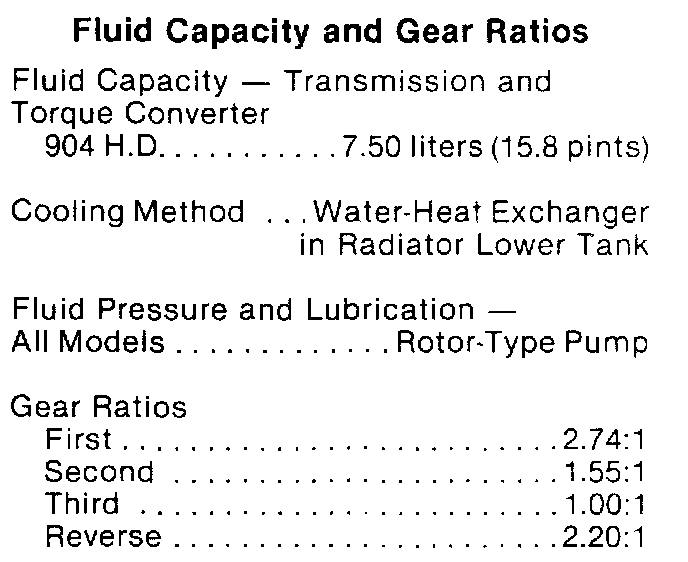

Fluid Capacity And Gear Ratios:

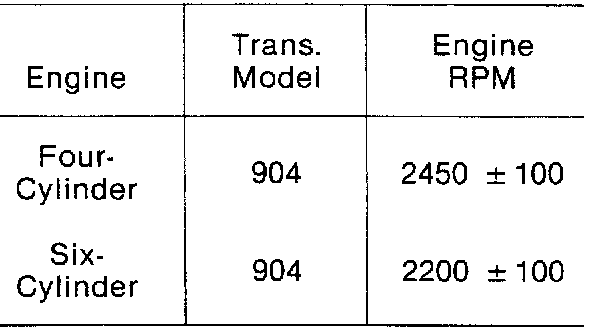

Stall Speed Specifications:
