Clearance and Design Specifications

Front and Rear Differential Specifications

Front Differential

Front Axle Differential Specifications:

Rear Differential

The rear axle is a semi-floating type with a 19.2-cm (7 9/16-in) diameter ring gear.

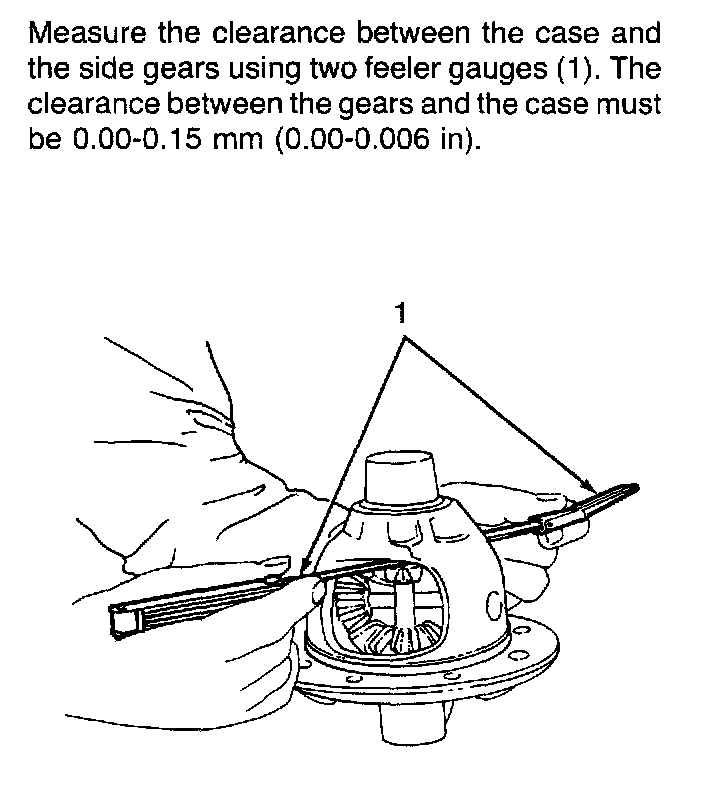

Front Differential Side Gear Measurement:

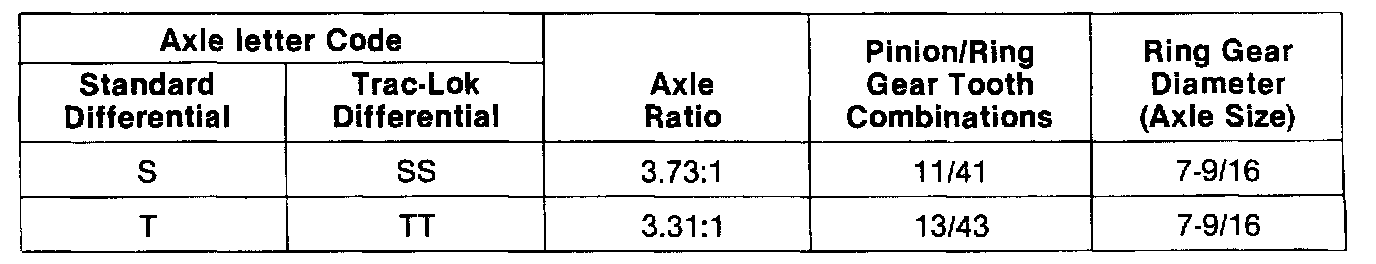

Axle Size And Ratio Identification:

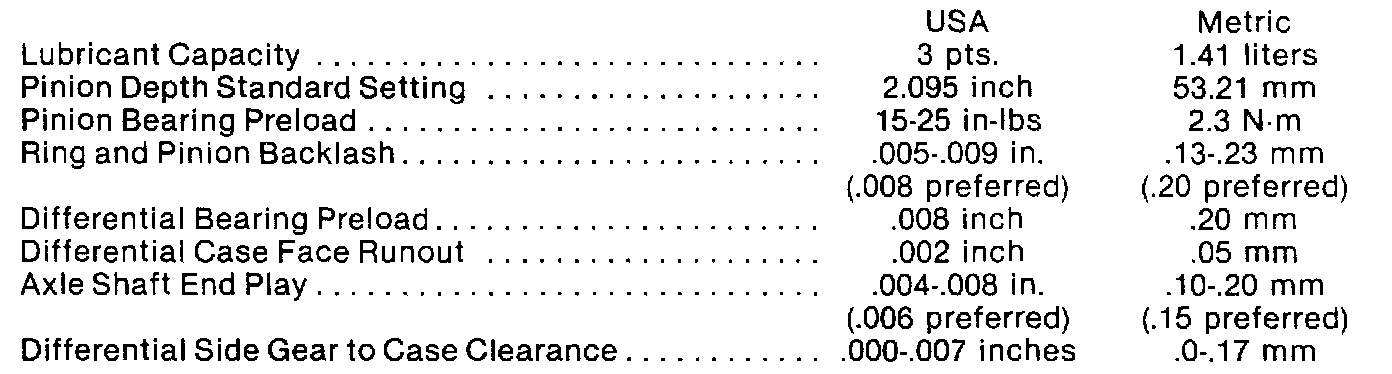

General Specifications:

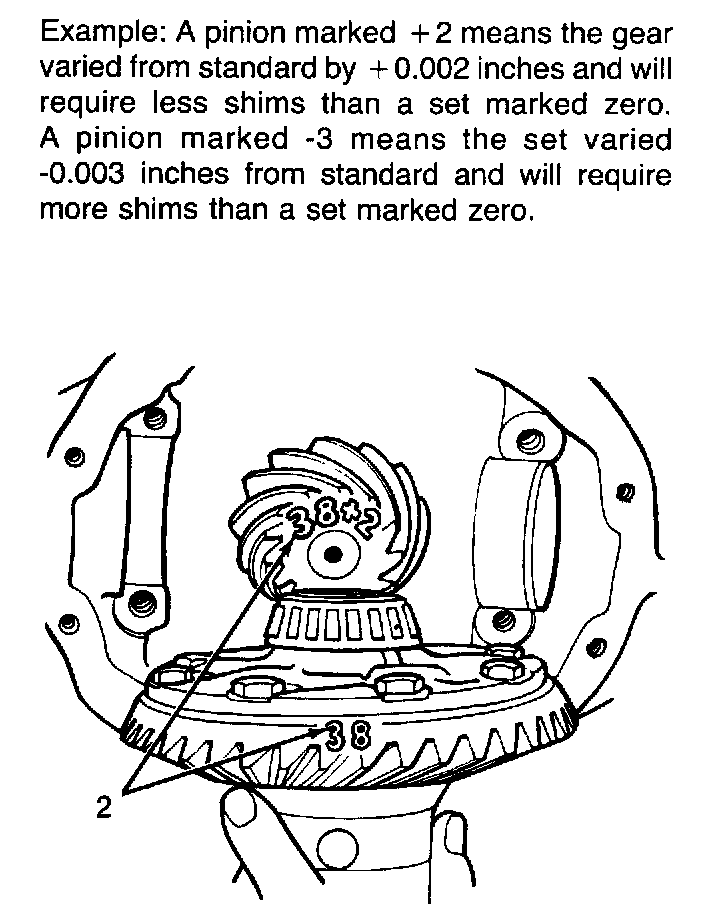

Pinion Marking:

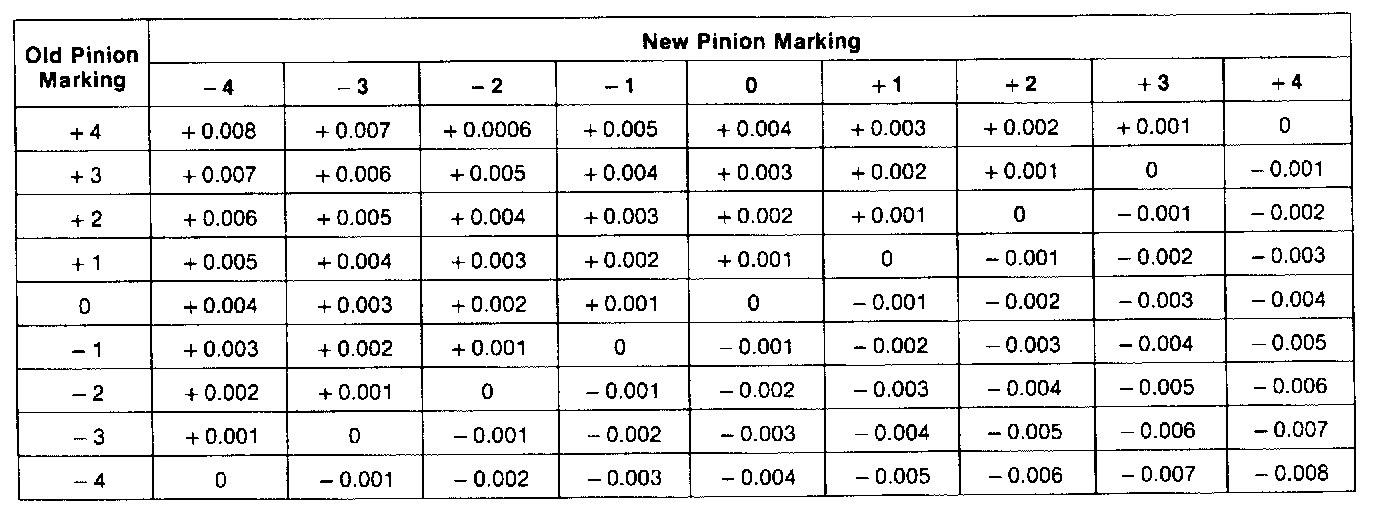

Pinion Variance Chart:

NOTE: The starter shim thickness must not be used as a final shim setting. An actual pinion depth measurement must be performed and the final shim thickness adjusted as necessary.

Ring Gear Backlash Adjustment Specifications:

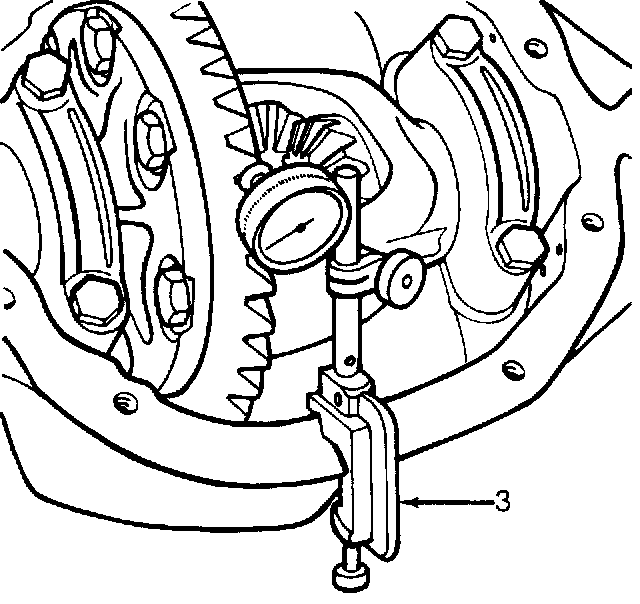

Move the ring gear backward and forward and note backlash registered on the dial Indicator. Backlash should be 0.13 to 0.23 mm (0.005 to 0.009 in), with 0.20 mm (0.008 in) desired.
