Trailer Lighting Module

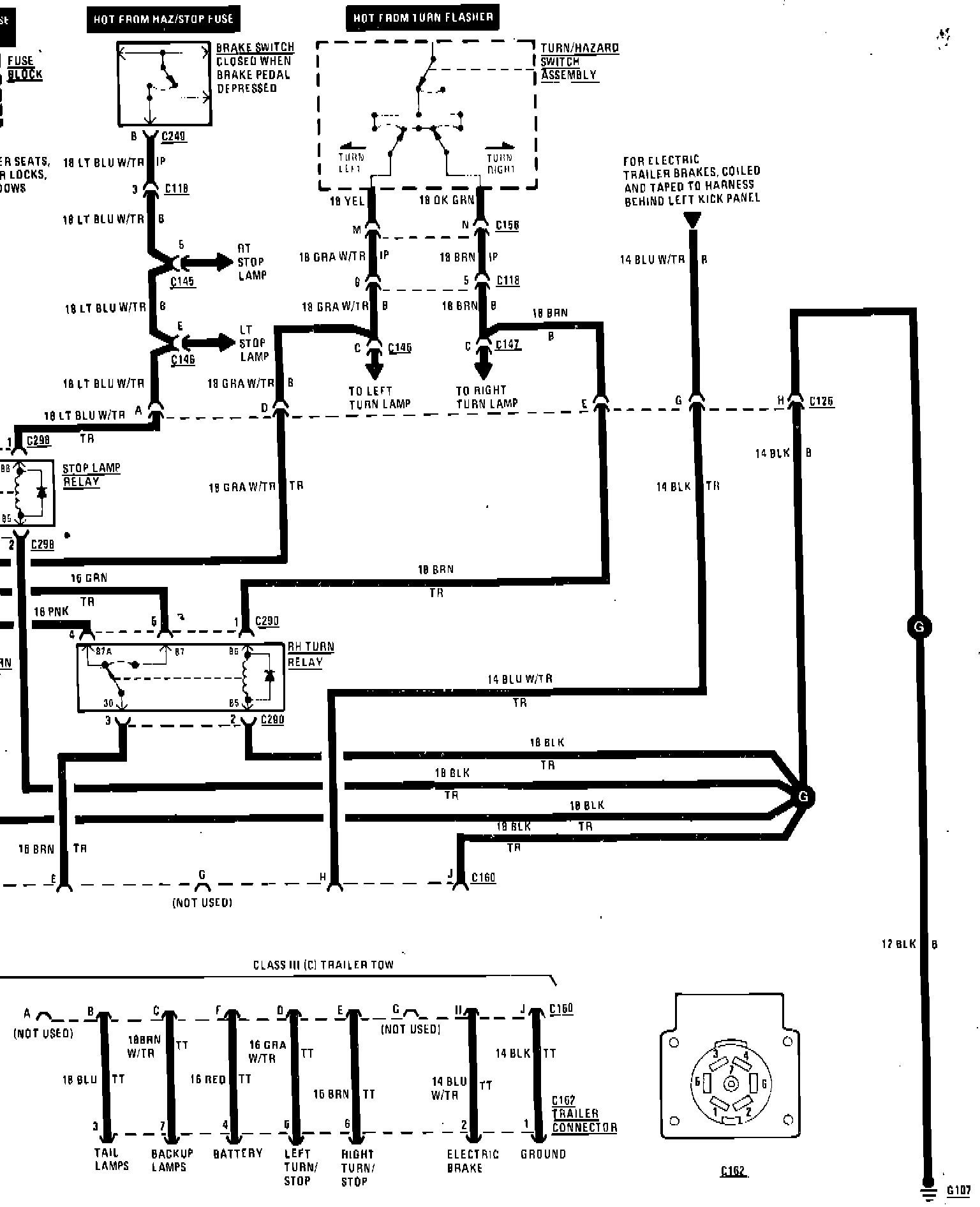

Fig. 60 Trailer Tow Harness Wiring Circuit (Part 1 of 2). Cherokee:

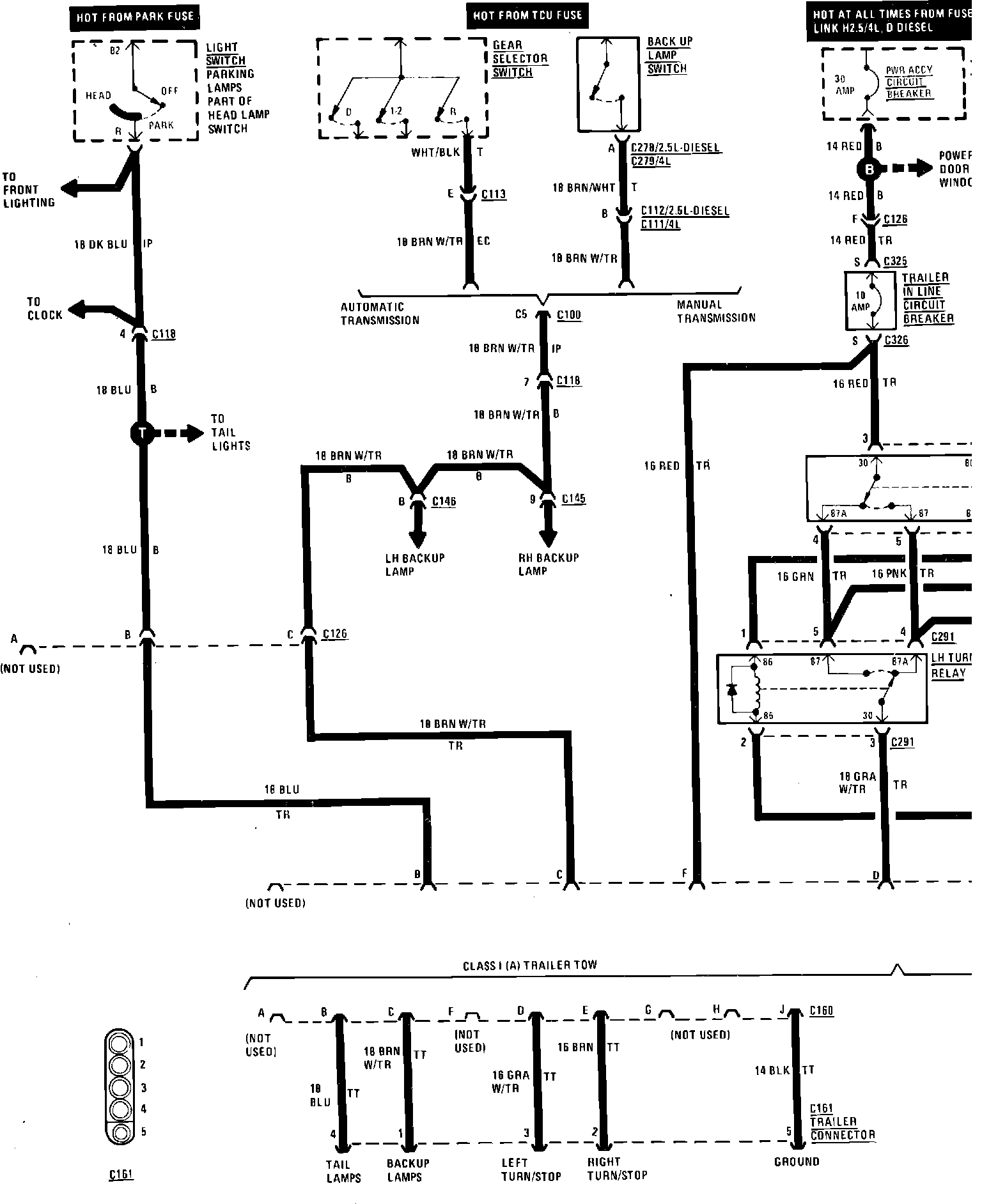

Fig. 60 Trailer Tow Harness Wiring Circuit (Part 2 of 2). Cherokee:
