Oxygen Sensor: Testing and Inspection

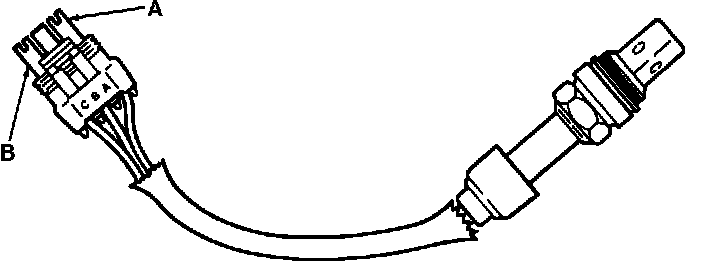

Fig. 14 Oxygen sensor connector terminals:

1. Disconnect sensor electrical connector.
2. Using suitable ohmmeter, check resistance between connector terminals A and B, Fig. 14.
3. Resistance should be 5-7 ohms.
4. If resistance is not as specified, replace sensor.
