O2 Sensor - Idle Speed Variation Problem

5E283
APRIL 1987
1987 WRANGLER WITH 2.46L ENGINE
ENGINE Attention: Workshop, Parts Department

THIS I.S. NOTE HAS BEEN REVISED AS INDICATED BY THE REVISION BARS:

IDLE SPEED VARIATION


Some 1987 Wrangler vehicles equipped with the 2.46L engine may exhibit a variation in engine idle speed. This condition is generally intermittent and may become more evident with increased temperatures and/or mileage.

The vehicle should be tested with the MS 1700 Diagnostic Tester. Because the condition is intermittent, the MS 1700 may not be able to detect the fault. If the vehicle passes all the tests and no other problems are found, the oxygen (O2) sensor may be the cause of this condition.



PROCEDURE

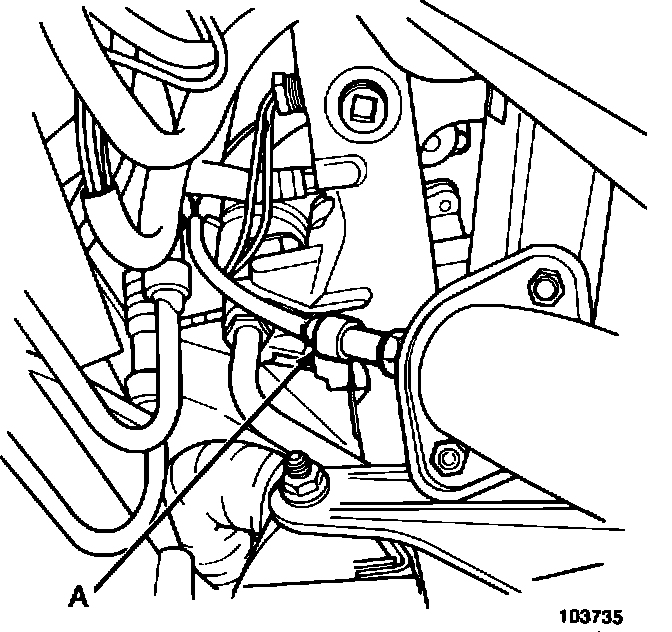

1. Disconnect the O2 sensor connector (A).


2. Remove the O2 sensor from the exhaust manifold.


3. Clean the threads in the exhaust manifold.


NOTE: Antiseize sealer is already applied to the threads of replacement O2 sensors.


4. Install a new O2 sensor marked with a yellow tag. Tighten the sensor to 27-34 N-m (20-25 ft.lbs.) torque.


5. Connect the O2 sensor connector.
PARTS INFORMATION


DESCRIPTION QUANTITY PART NUMBER


SENSOR, Oxygen 1 8953 002 106


SRT/TIC INFORMATION


OPERATION
OPERATION DESCRIPTION NUMBER TIME TIC


CO. SENSOR, OXYGEN-REPLACE 1664 0.3 1-977


FILING INSTRUCTIONS

Record this I.S. Note on page B-197 of M.R. 279 and page 83 of INJ. TBI. and file it in the M.R. 279 manual.
