Clearance and Design Specifications

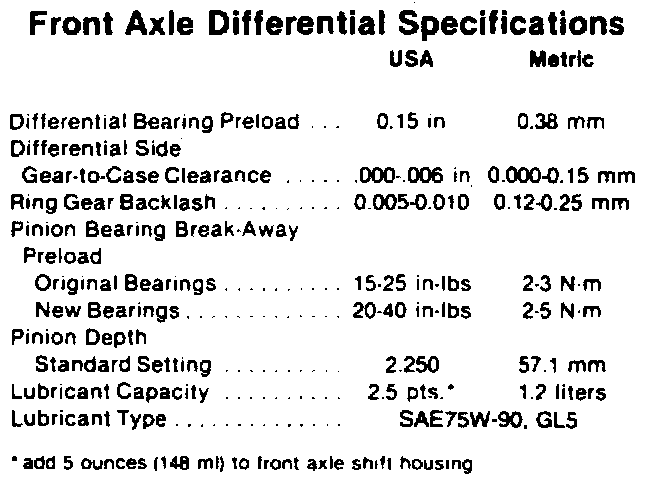

Front Differential Specifications:

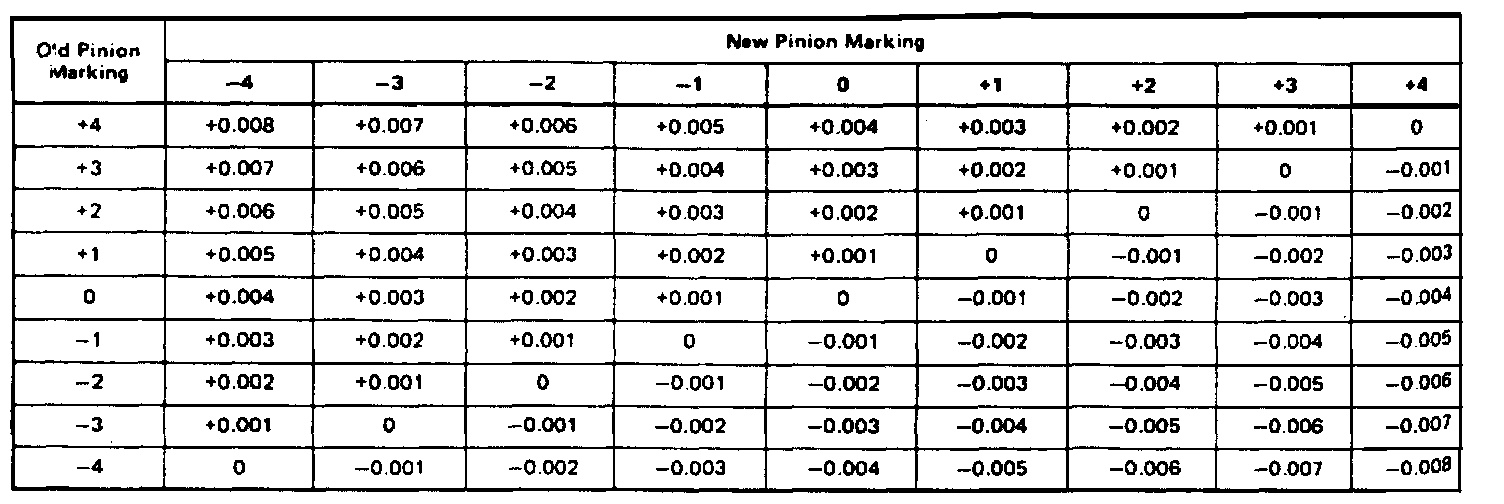

Ring And Pinion Variance Chart:

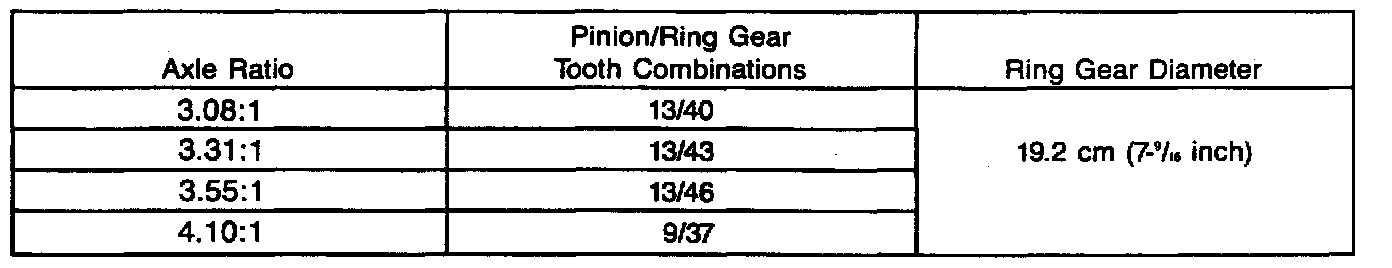

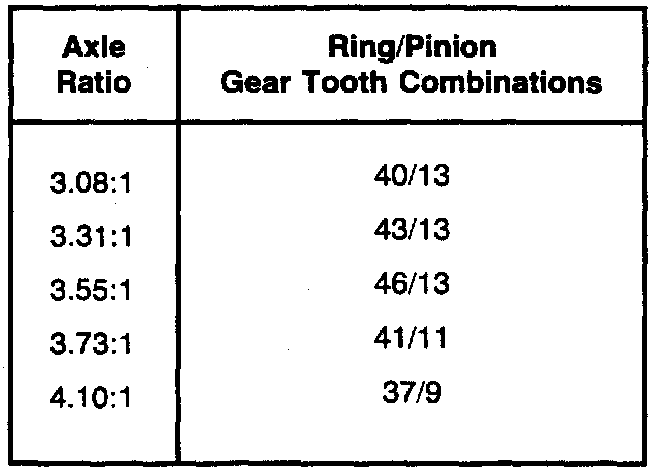

Axle Ratio-Ring And Pinion Tooth Combinations:

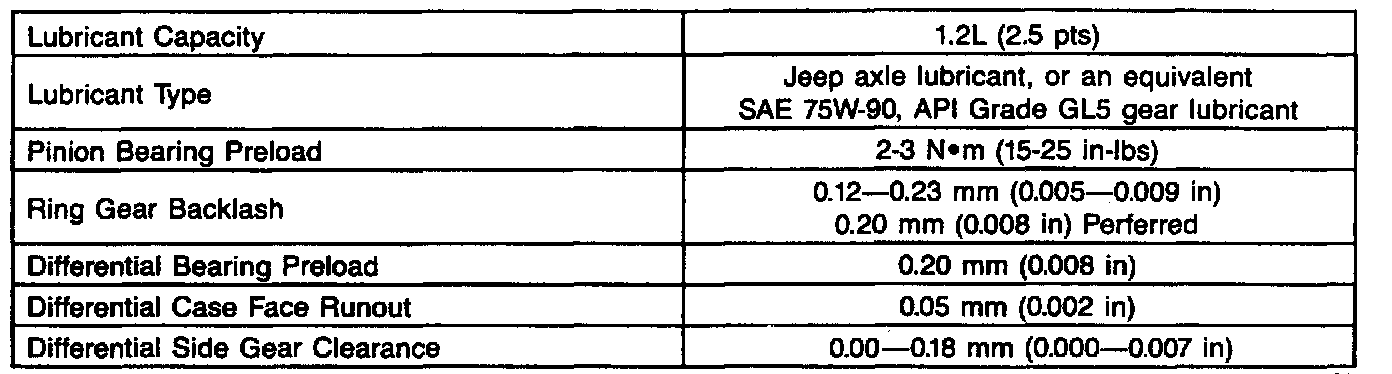

General Specifications:

Ring Gear Specifications:

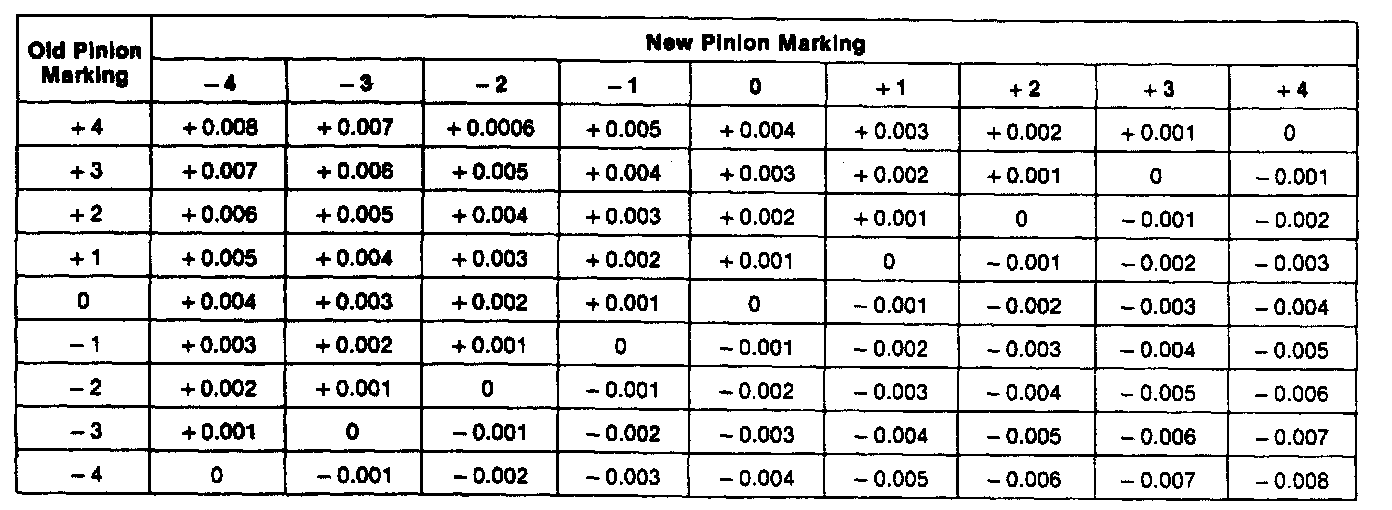

Pinion Depth Variance Chart:

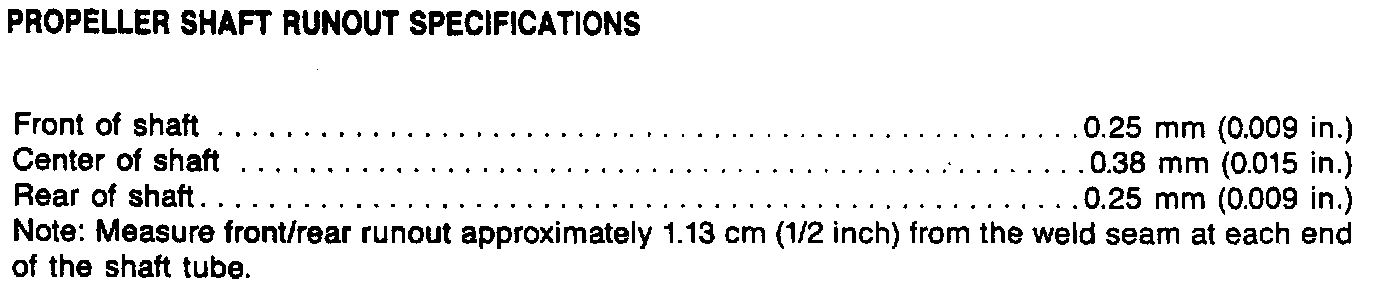

Propeller Shaft Runout Specifications:

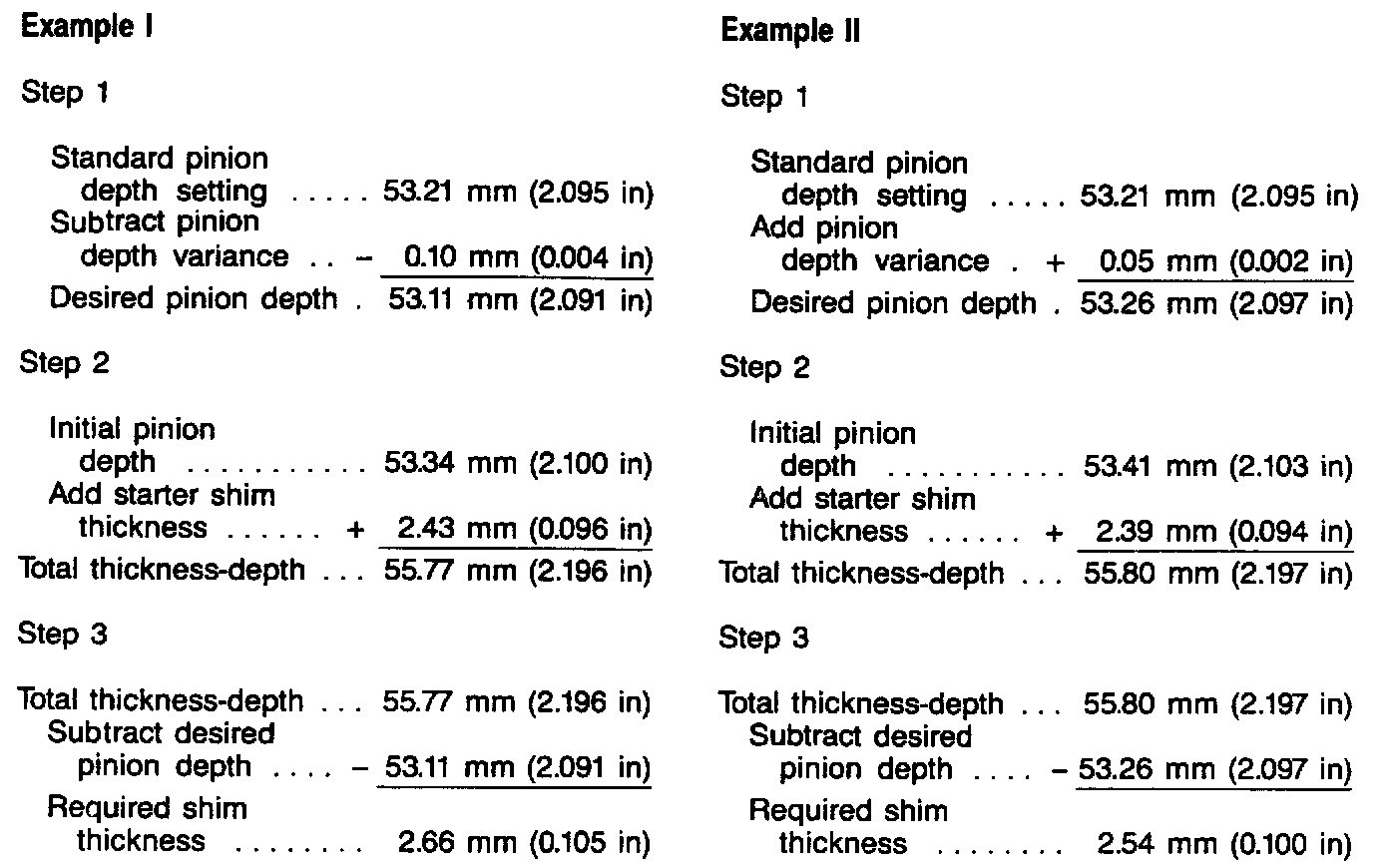

Depth Shim Combination Chart:
