Clearance and Design Specifications

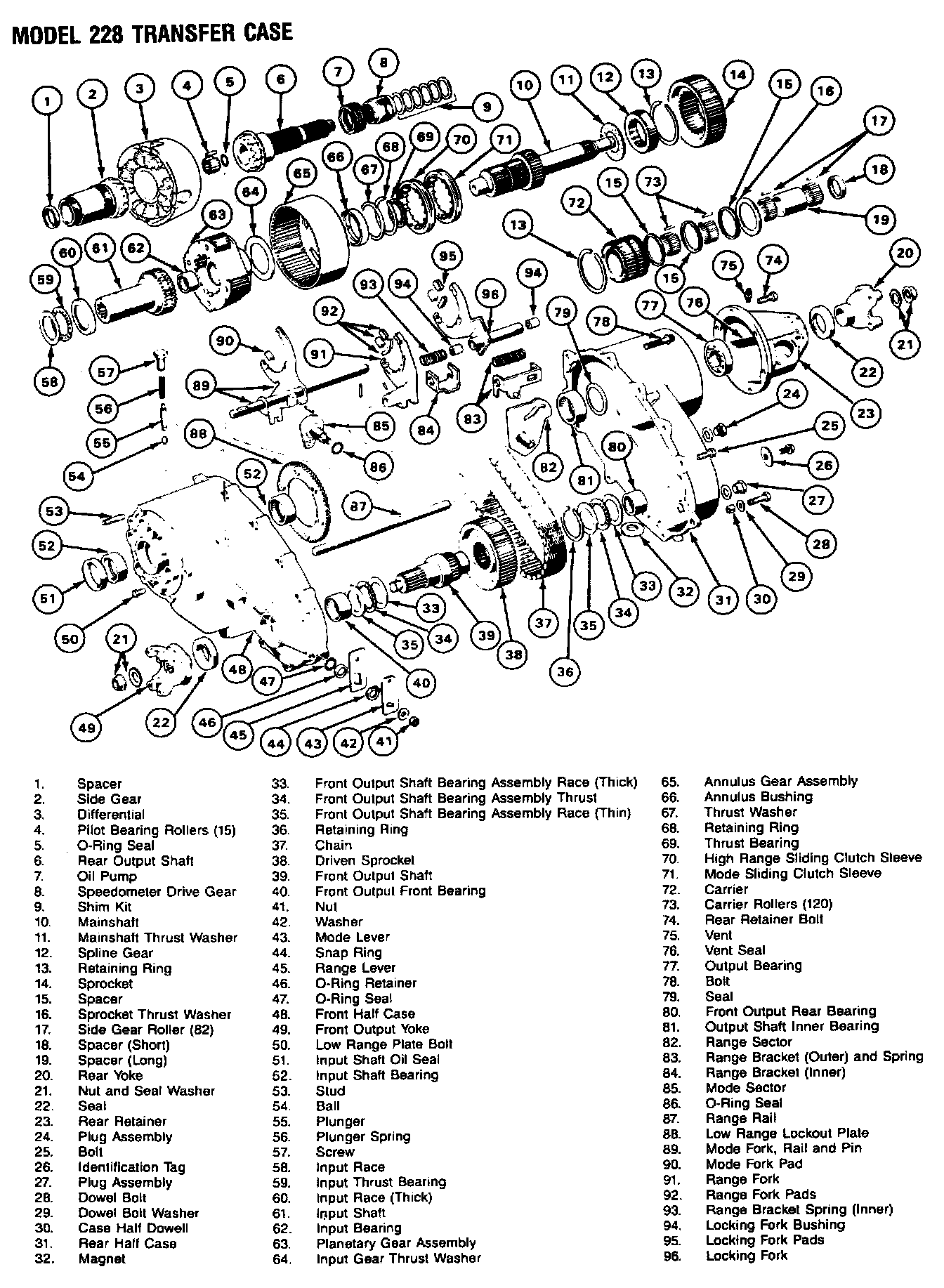

Model 228 Transfer Case Exploded View:

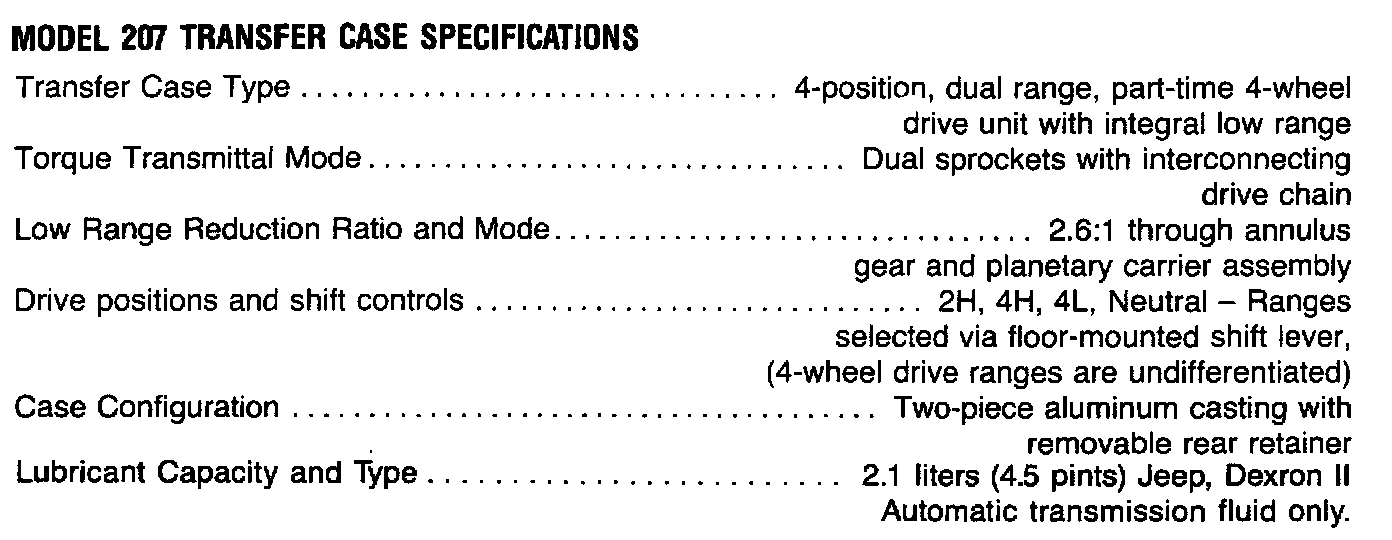

Model 207 Specifications:





Speedometer Pinion Gear Application Chart:
