Home >> Jeep >> 1989 >> Cherokee 2WD L6-242 4.0L VIN L FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations >> Component Locations >> Coolant Temperature Sensor

Coolant Temperature Sensor

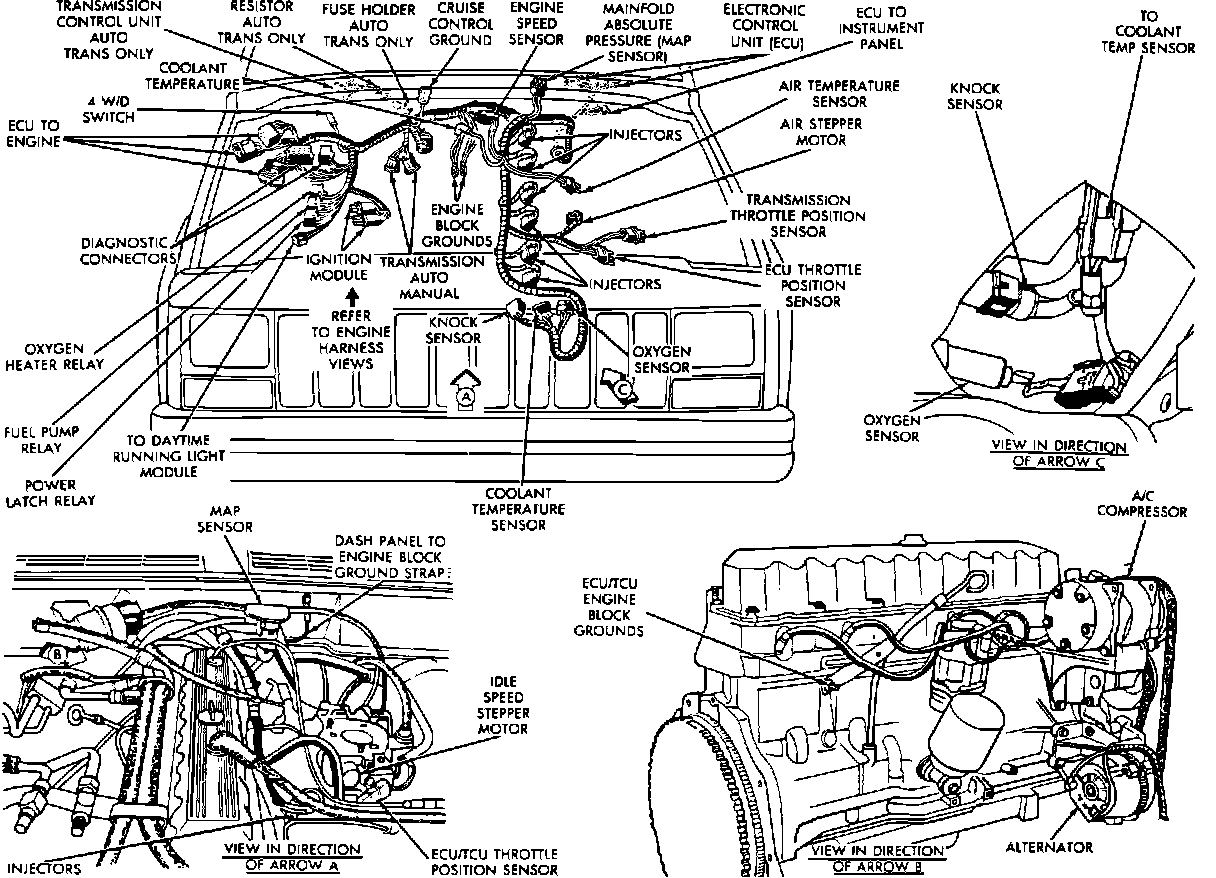

Engine Compartment Components.:




Center Front Of Engine Compartment

Applicable to: 6-243/4.0L Engine
