Electronic Brake Control Module
Electronic Brake Control Module

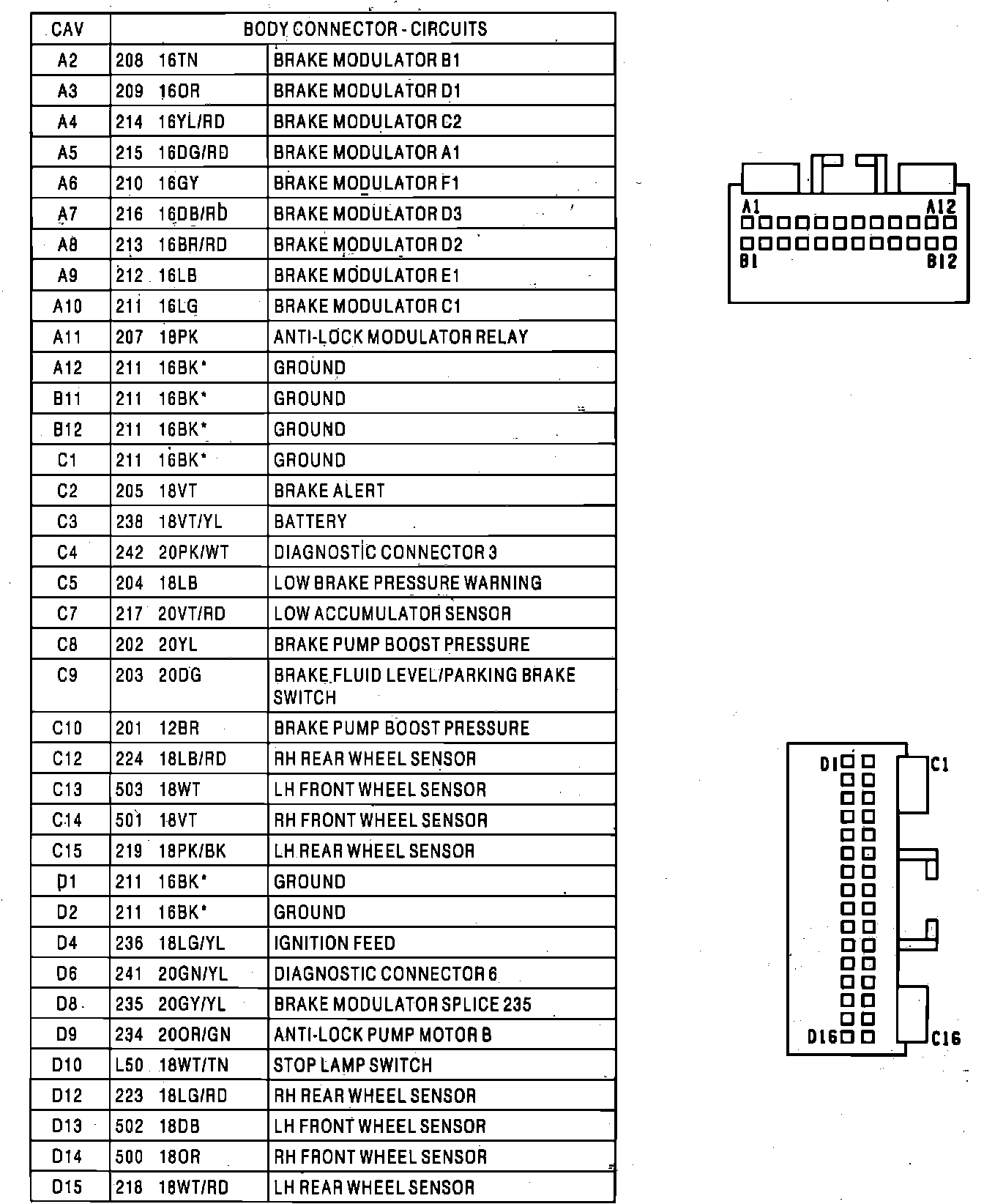

Anti-Lock Module Connectors 24 Way And 32 Way:
