Home >> Jeep >> 1989 >> Wrangler L6-258 4.2L VIN M 2-bbl >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module

Engine Control Module

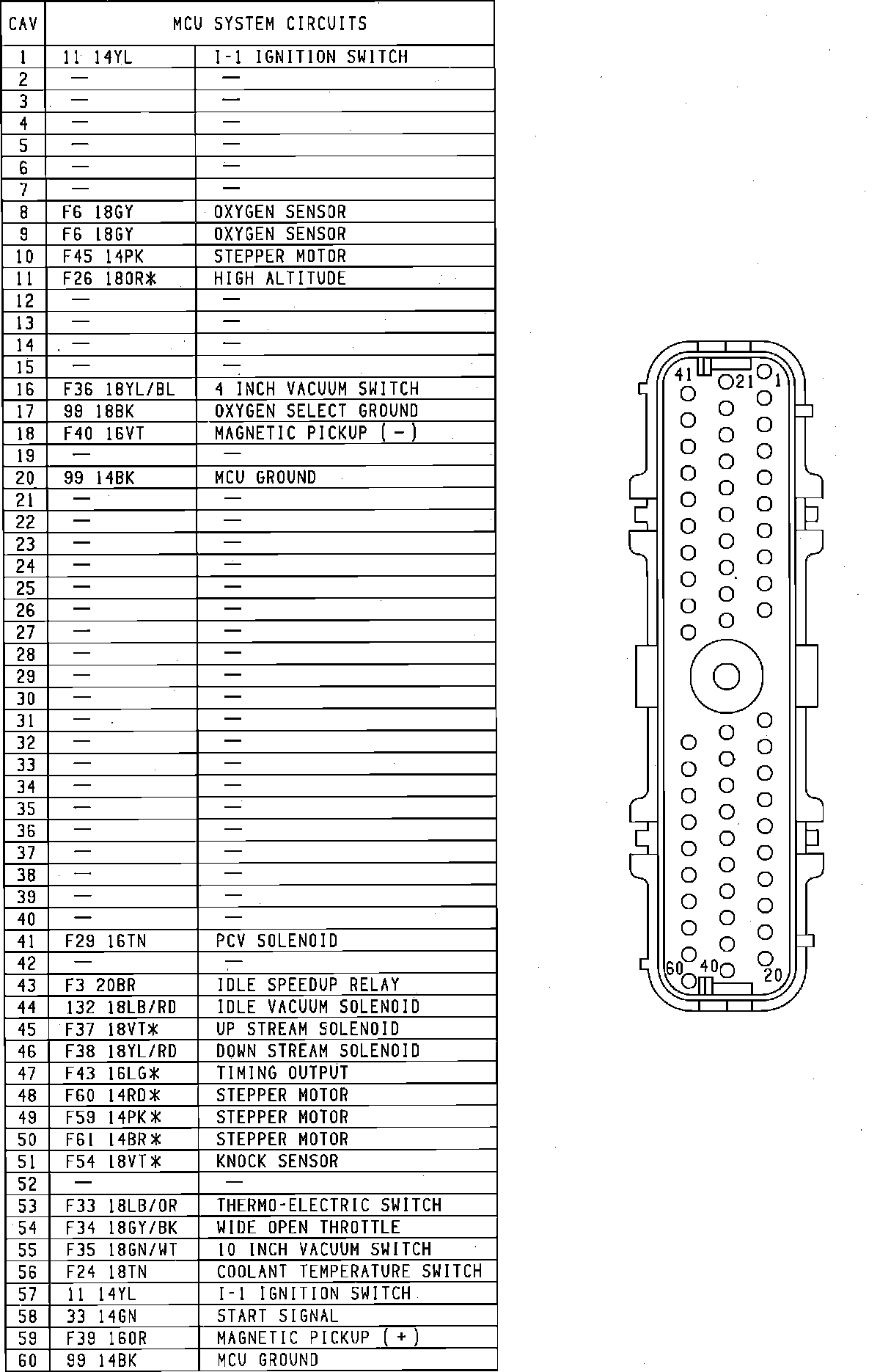

60-Way Controller Connector:
