Home >> Jeep >> 1989 >> Wrangler L6-258 4.2L VIN M 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Ignition Switch/System

Ignition Switch/System

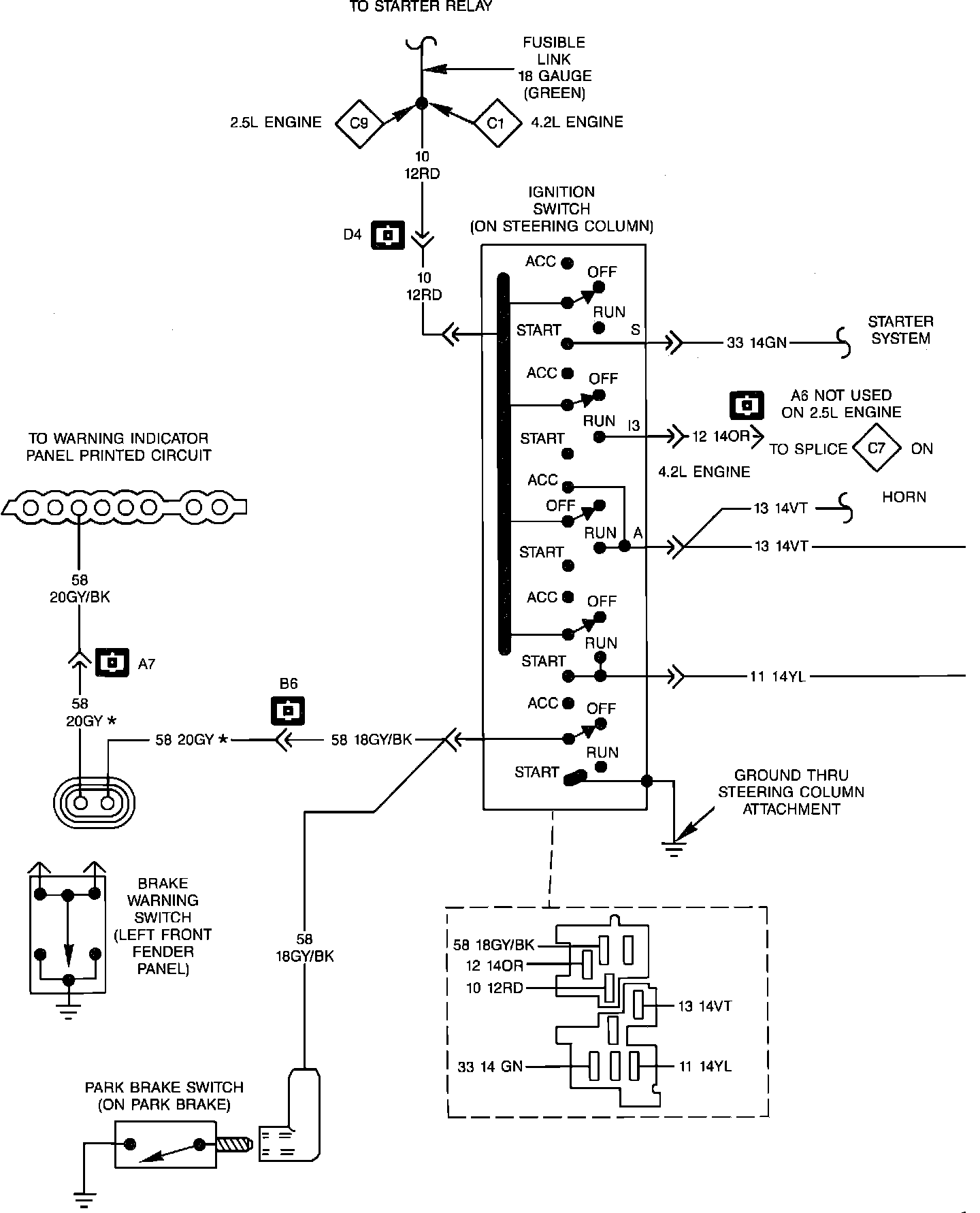

Ignition Switch Wiring Circuit:

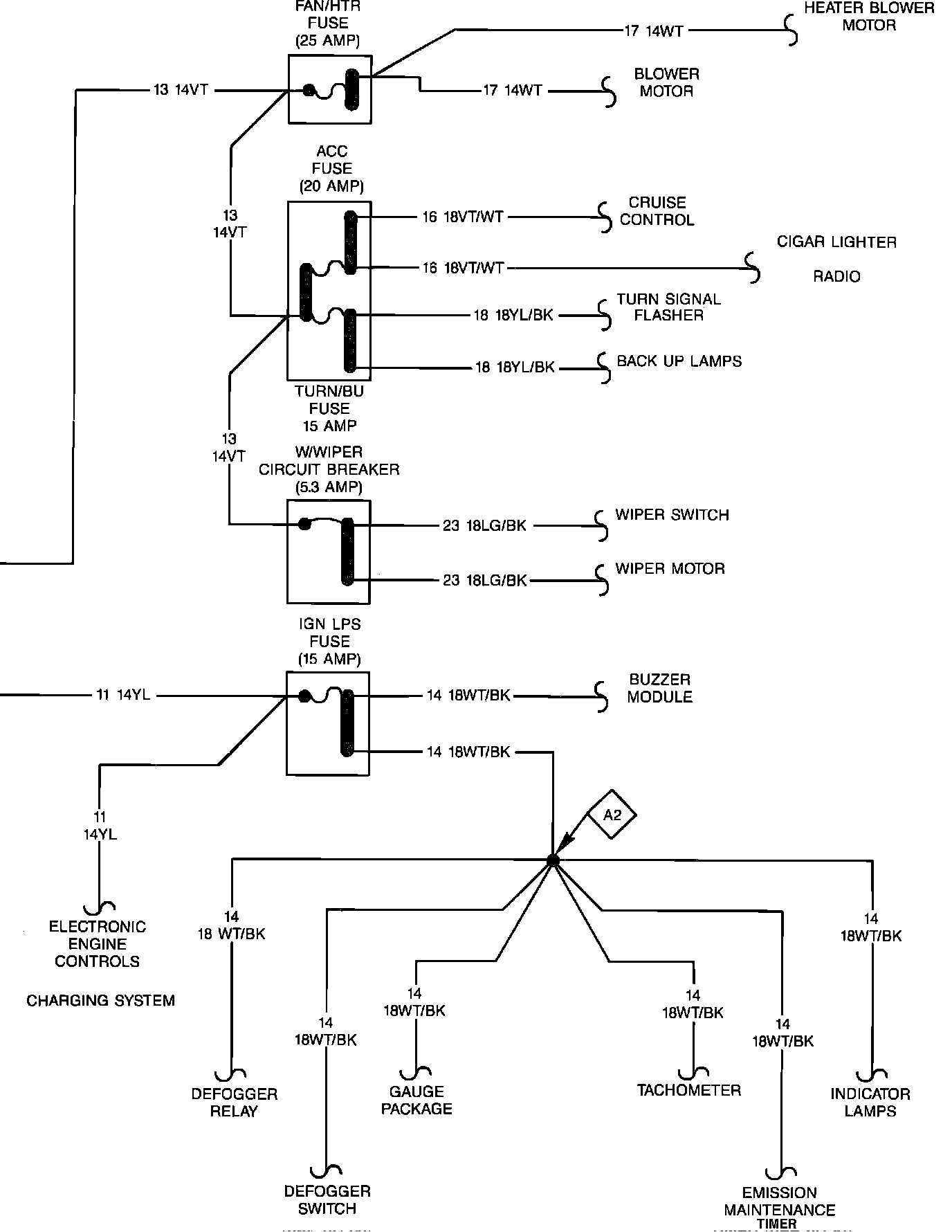

Ignition Switch Wiring Circuit:
