Clearance and Design Specifications

BA-10/5 Transmission

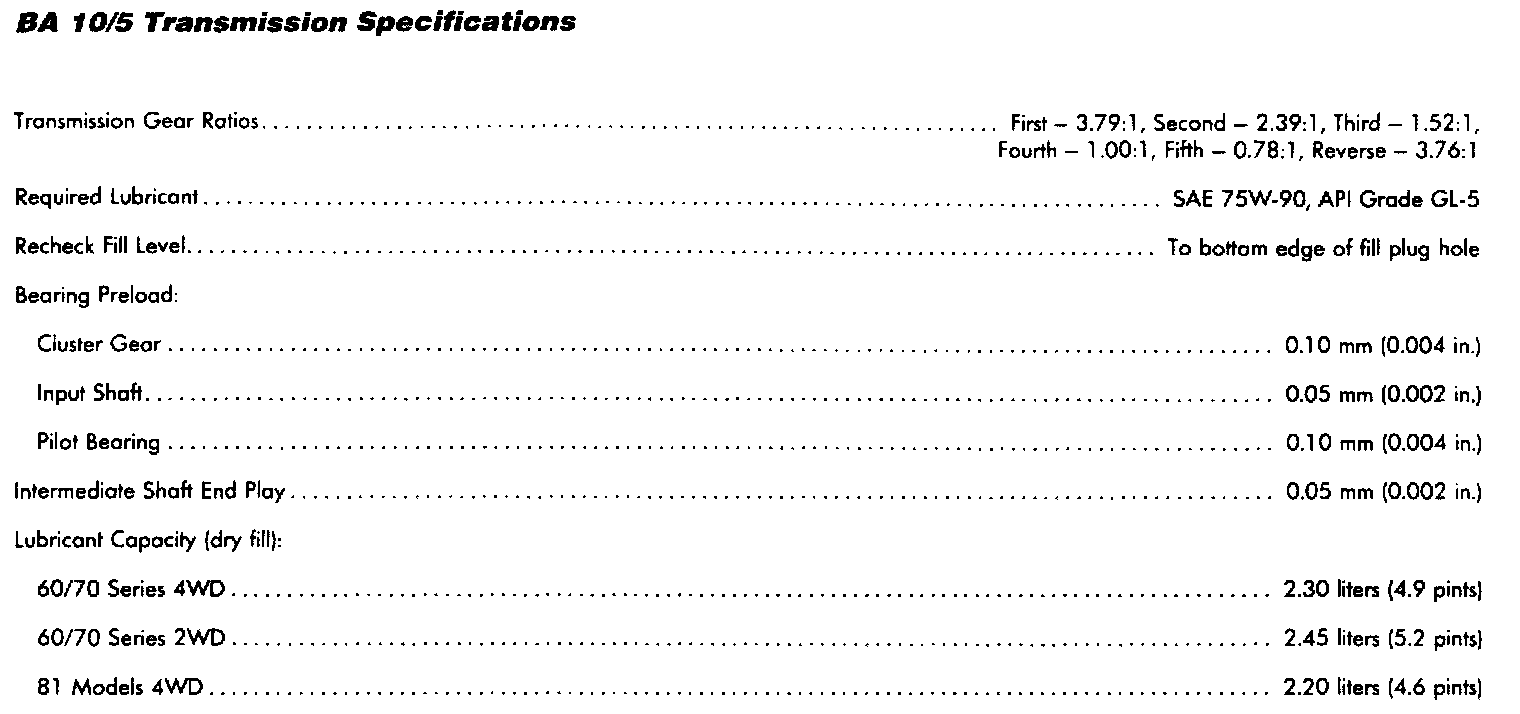

BA-10/5 Specifications:

AX-5 Transmission

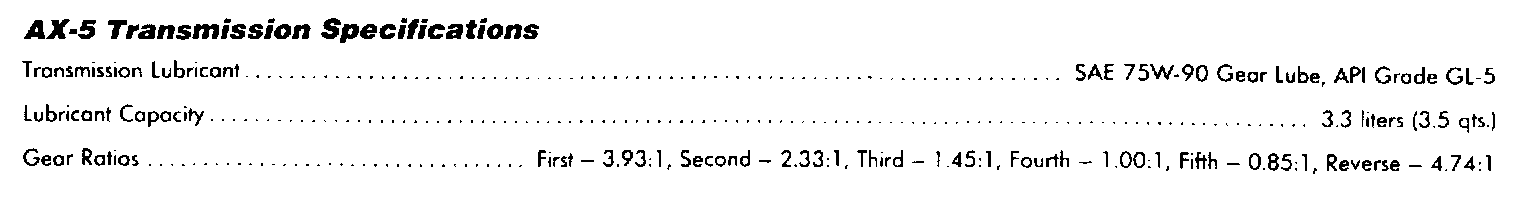

AX-5 Specifications:

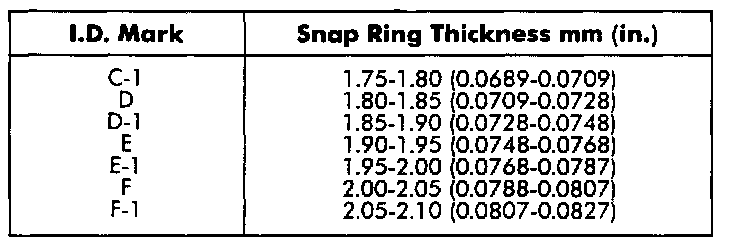

AX-5, Front Bearing Snap Ring Chart:

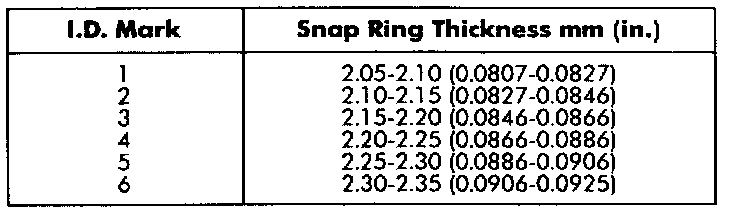

AX-5, Counter Gear Front Bearing Snap Ring Chart:

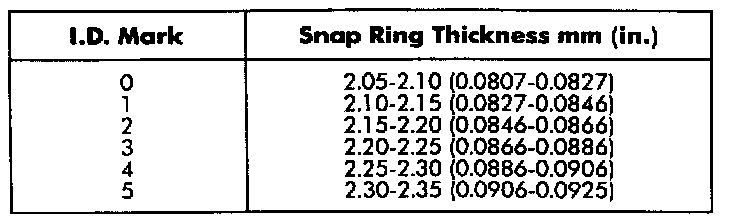

AX-5, Third Gear And 3-4 Synchronizer Snap Ring Chart:

AX-5, Fifth Gear Snap Ring Chart:
