Power Window Switch
Power Window Switch

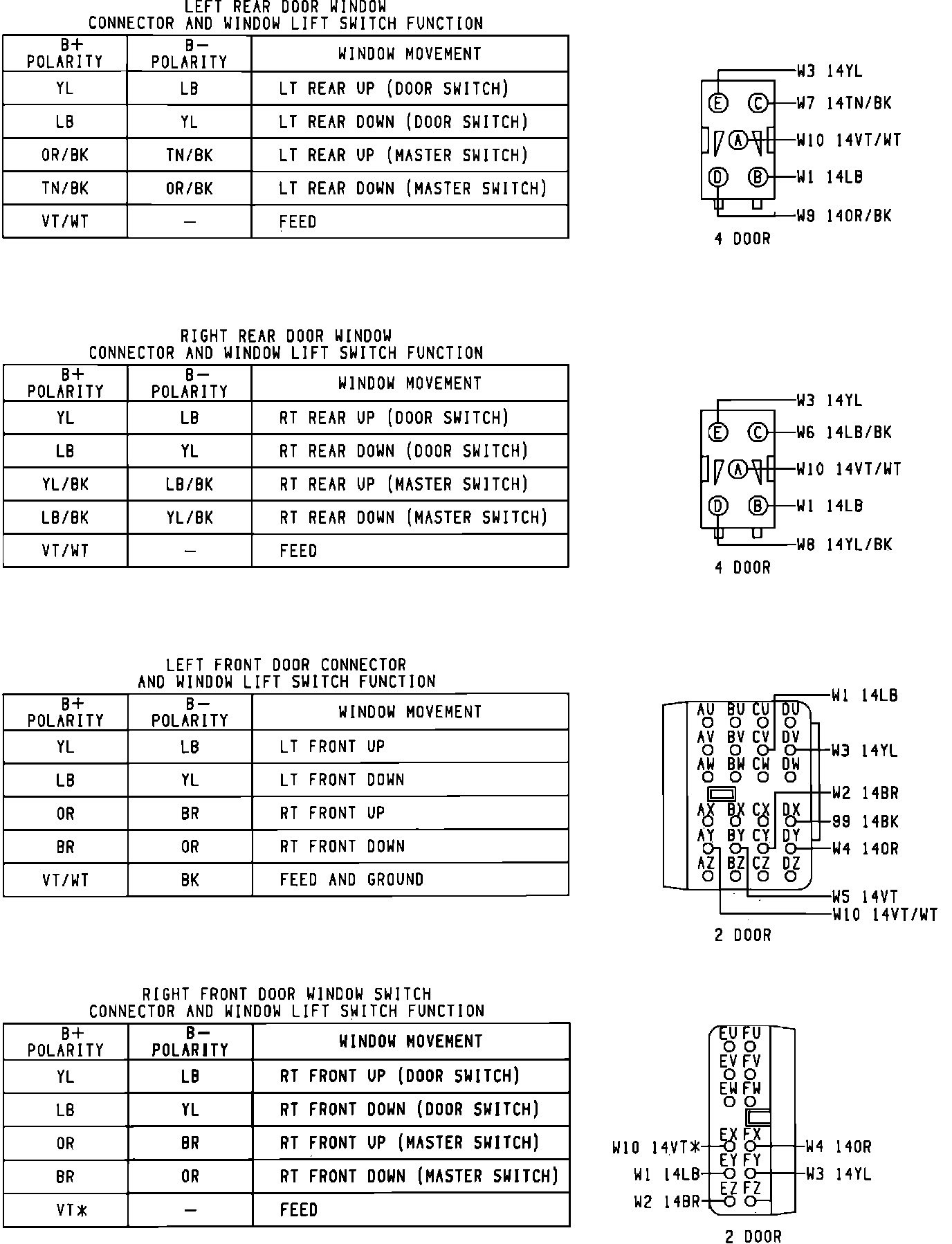

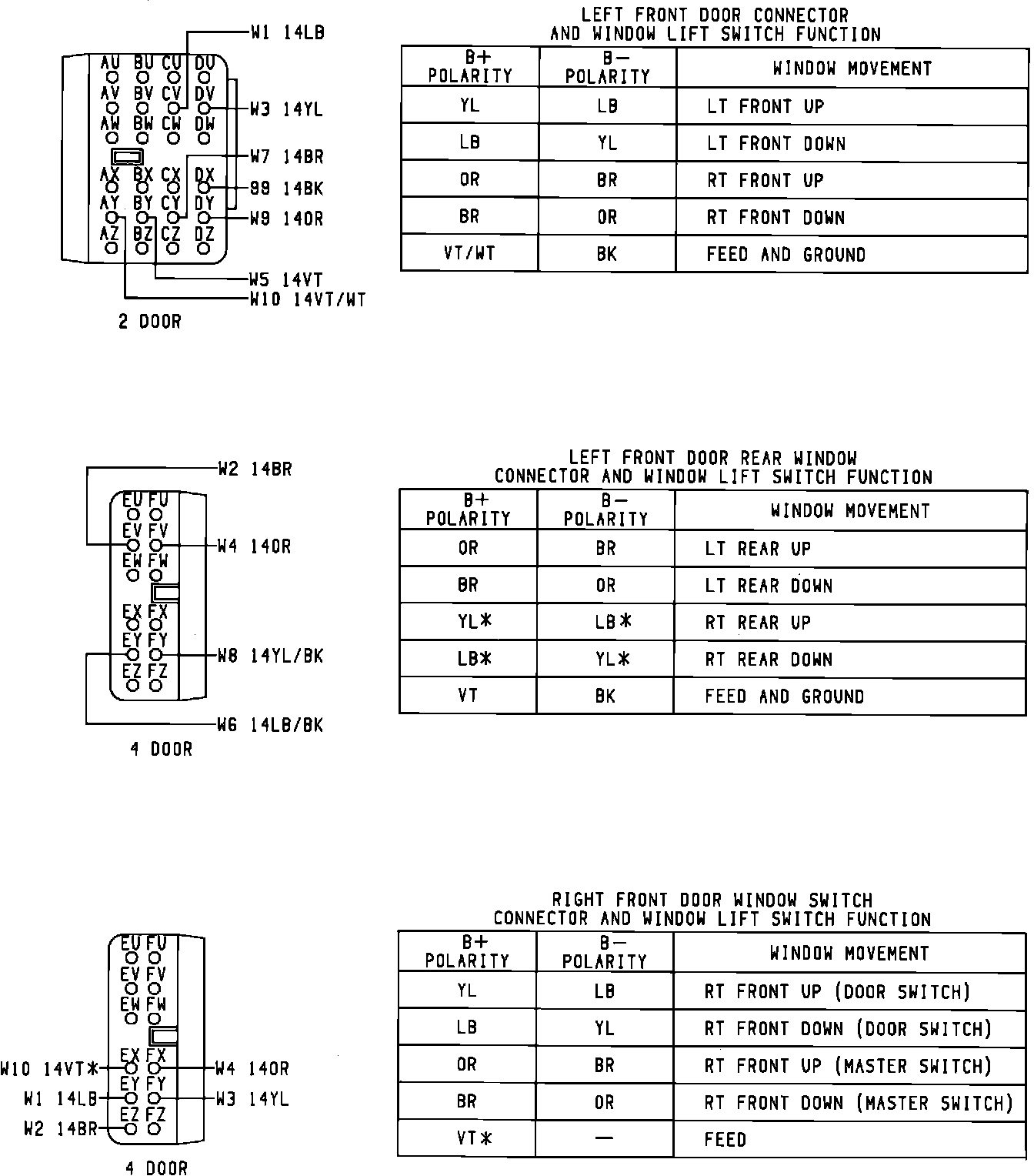

Power Windows & Switch Connector:
Power Windows & Switch Connector:
