Transmission Control Systems: Locations

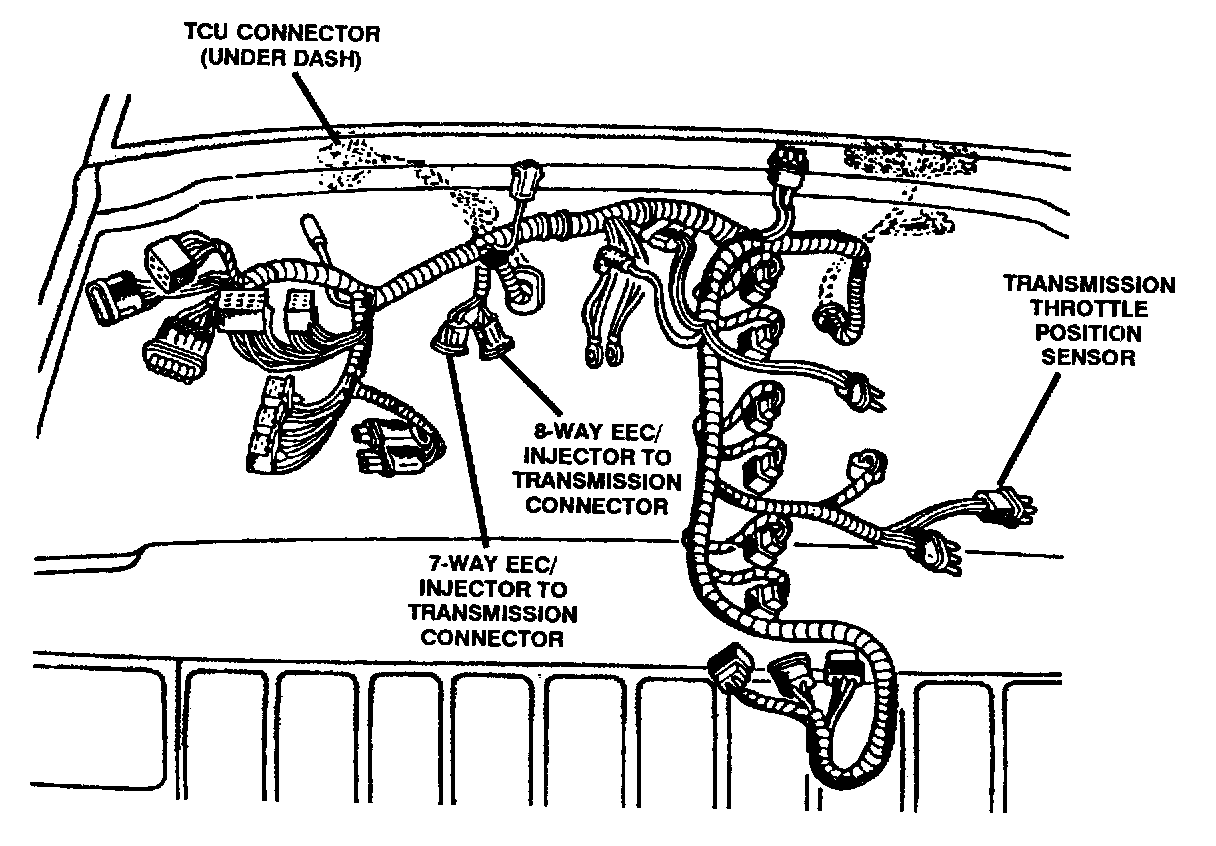

Underhood wiring

Brake switch & speed sensor

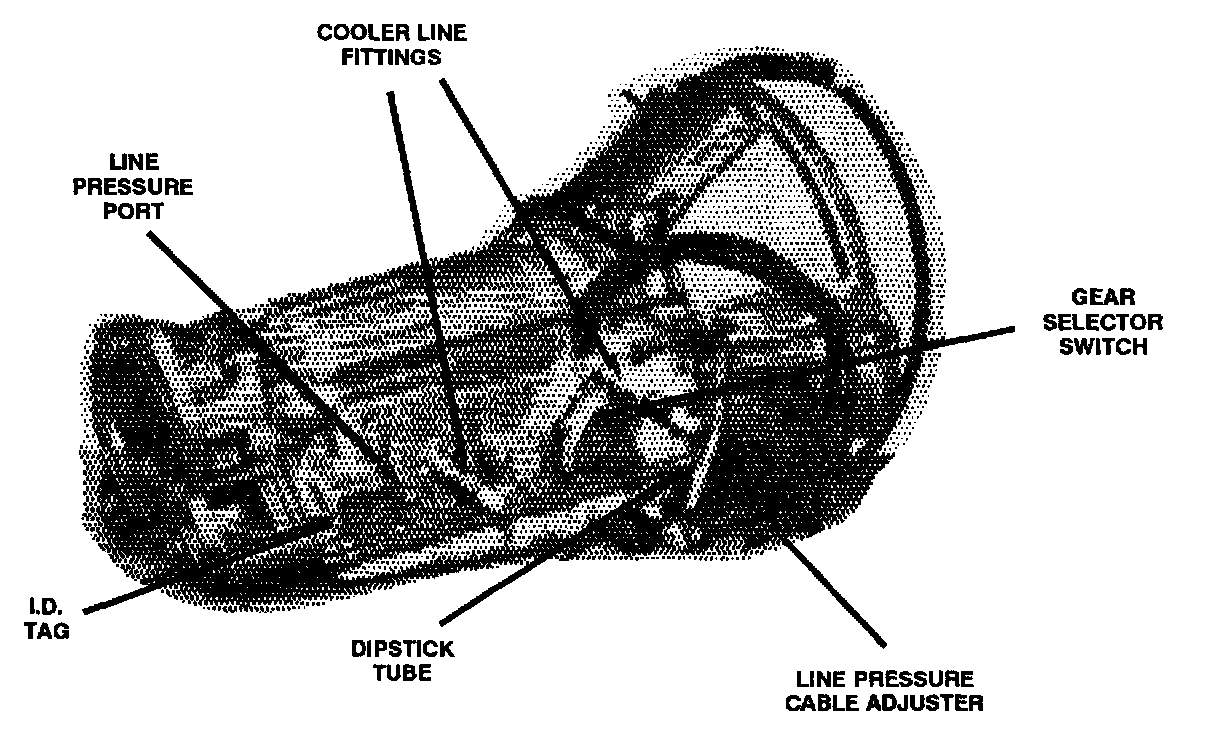

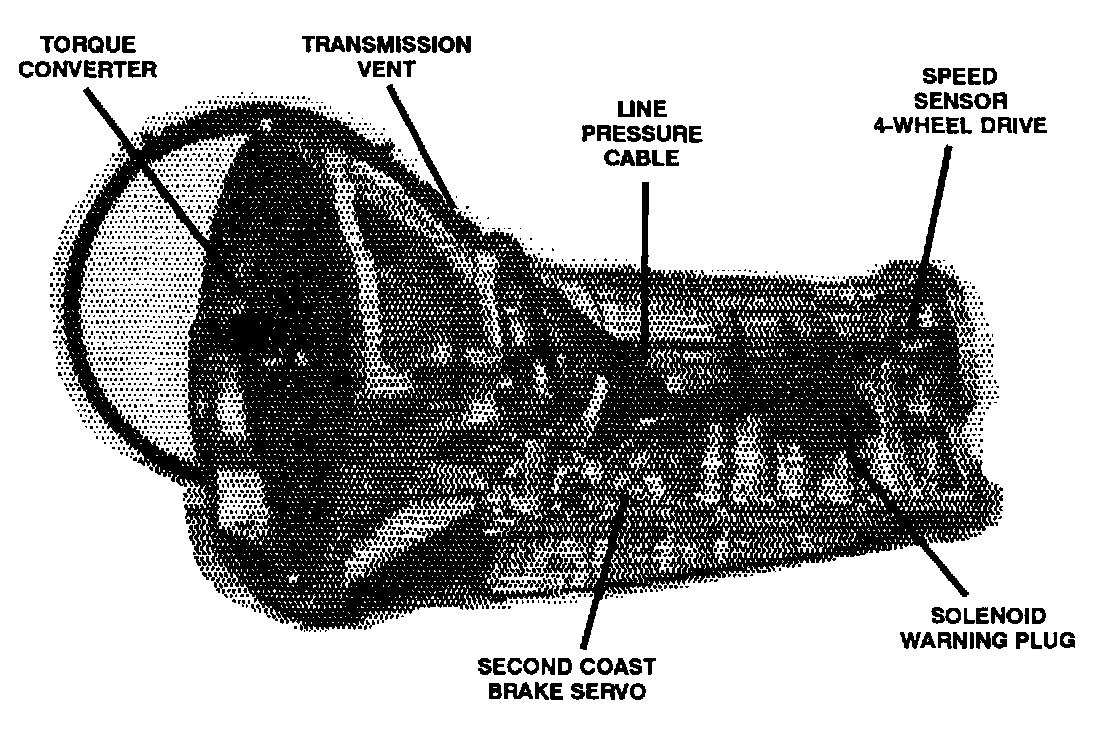

Transmission external components
