Clearance and Design Specifications

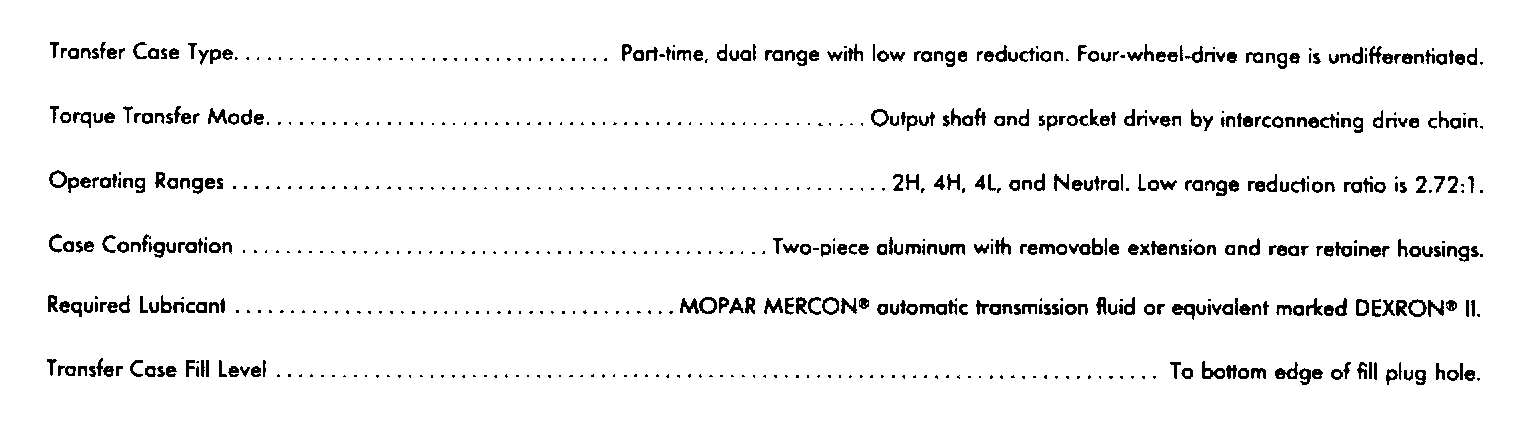

Service Specifications, Model 231:

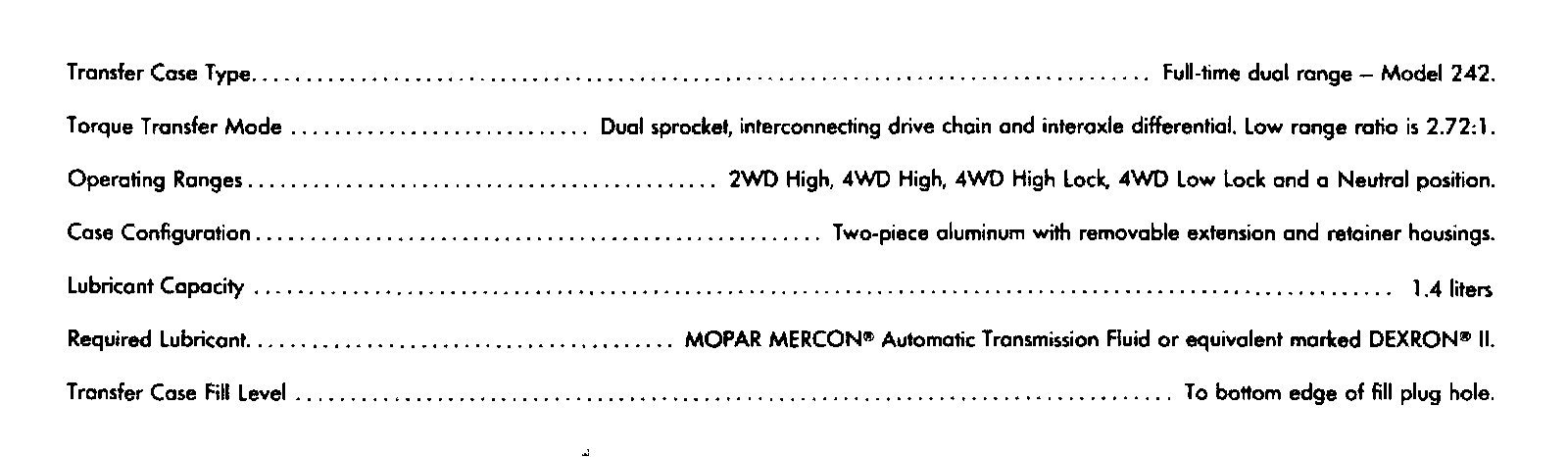

Service Specifications, Model 242:

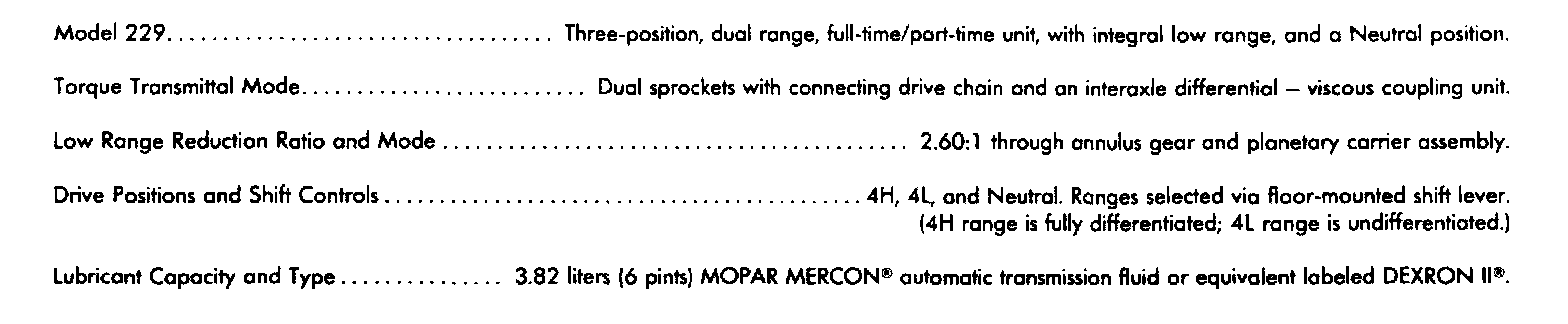

Service Specifications, Model 229:
