Torque Specifications

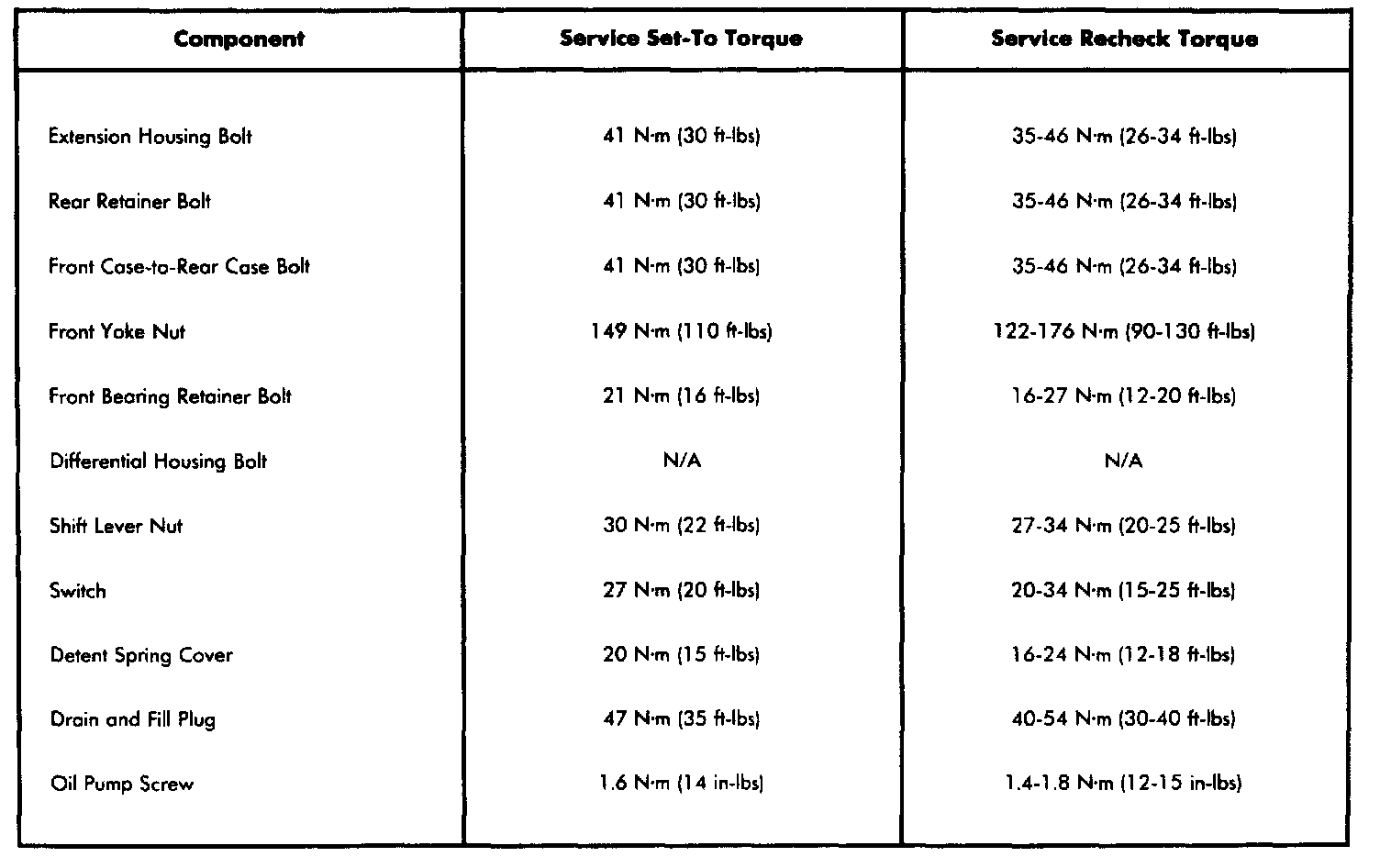

Torque Specifications, Model 321:

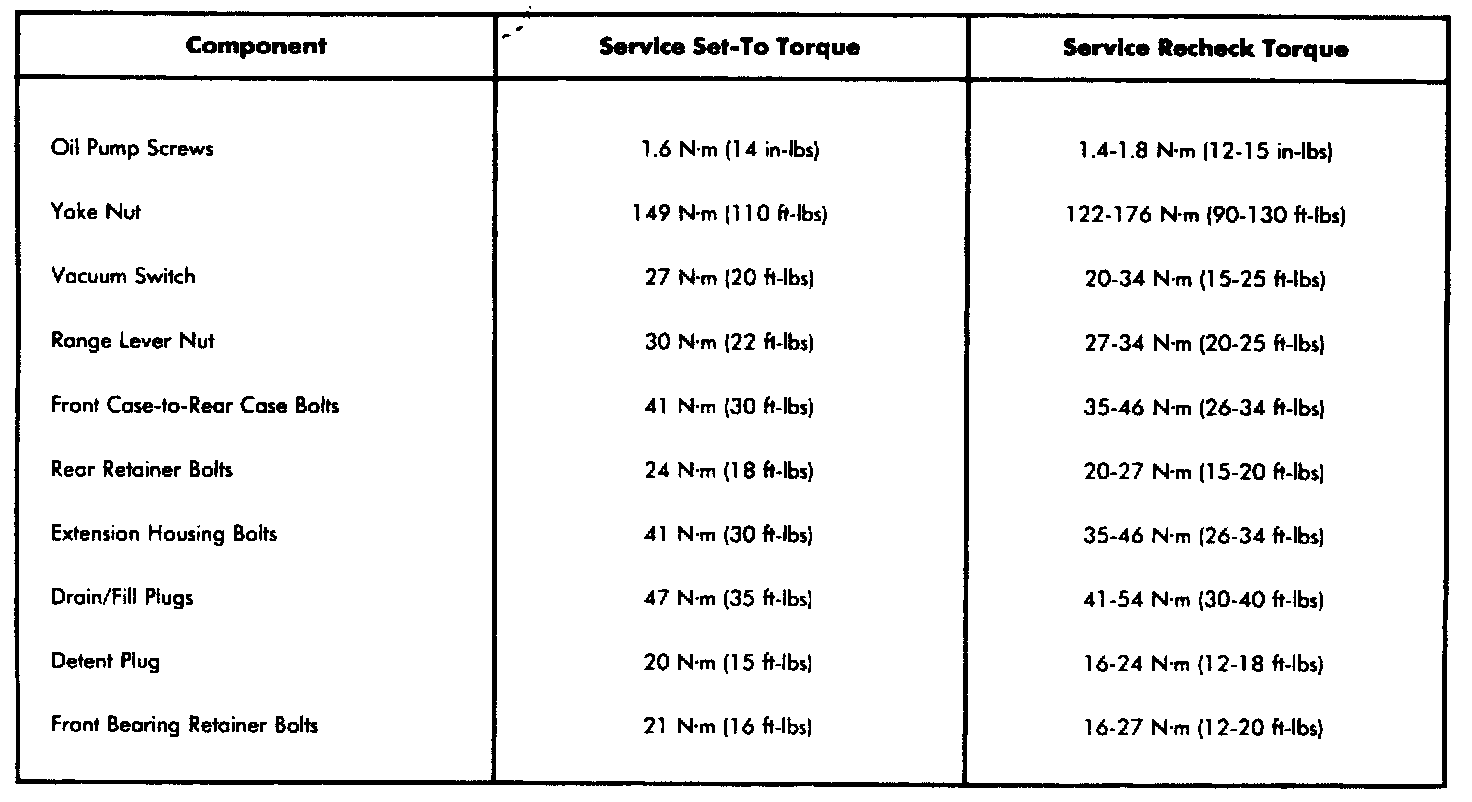

Torque Specifications, Model 242:





Torque Specifications, Model 229:
