Test 10 - Ignition Relay Testing

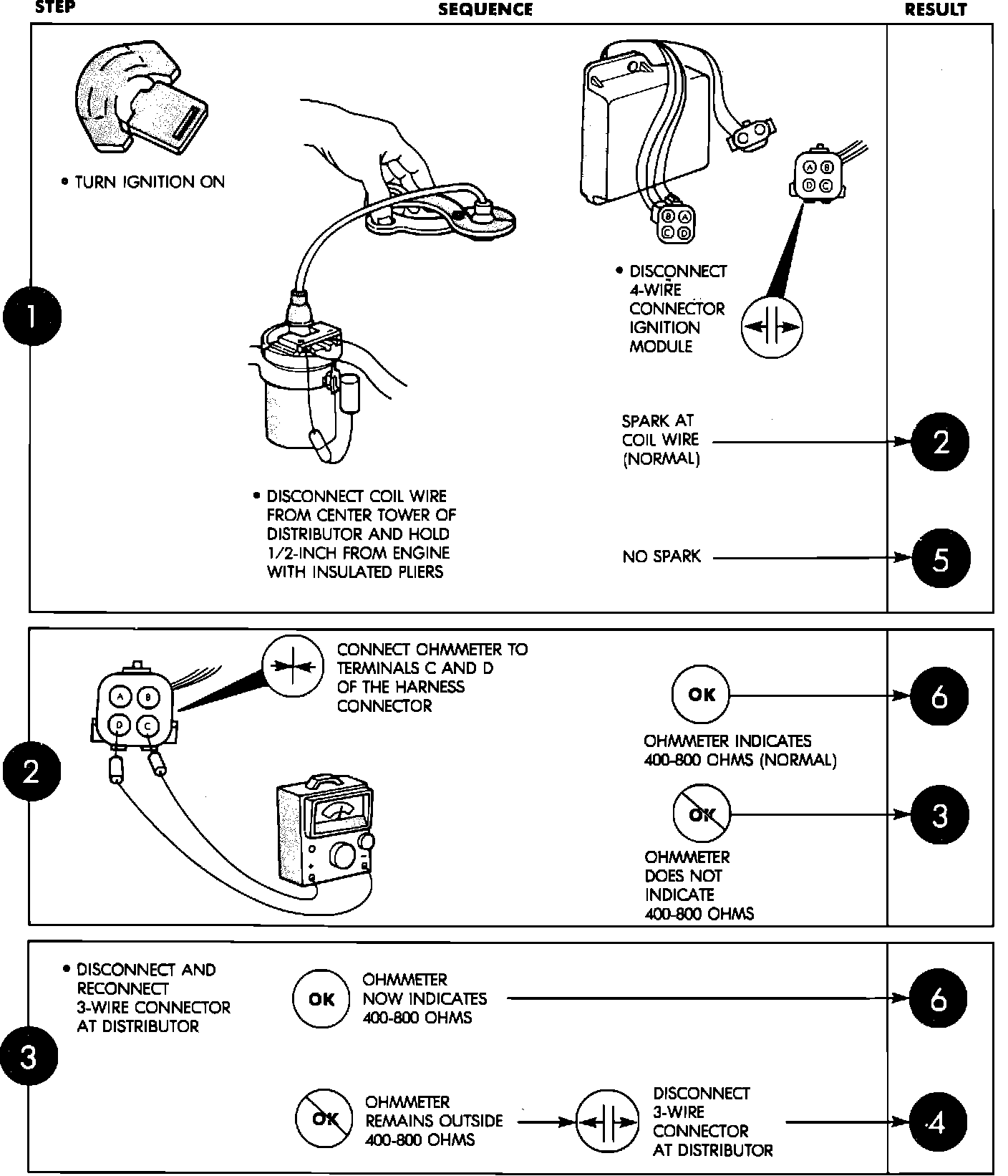

Sensor Check And Control Unit Check:

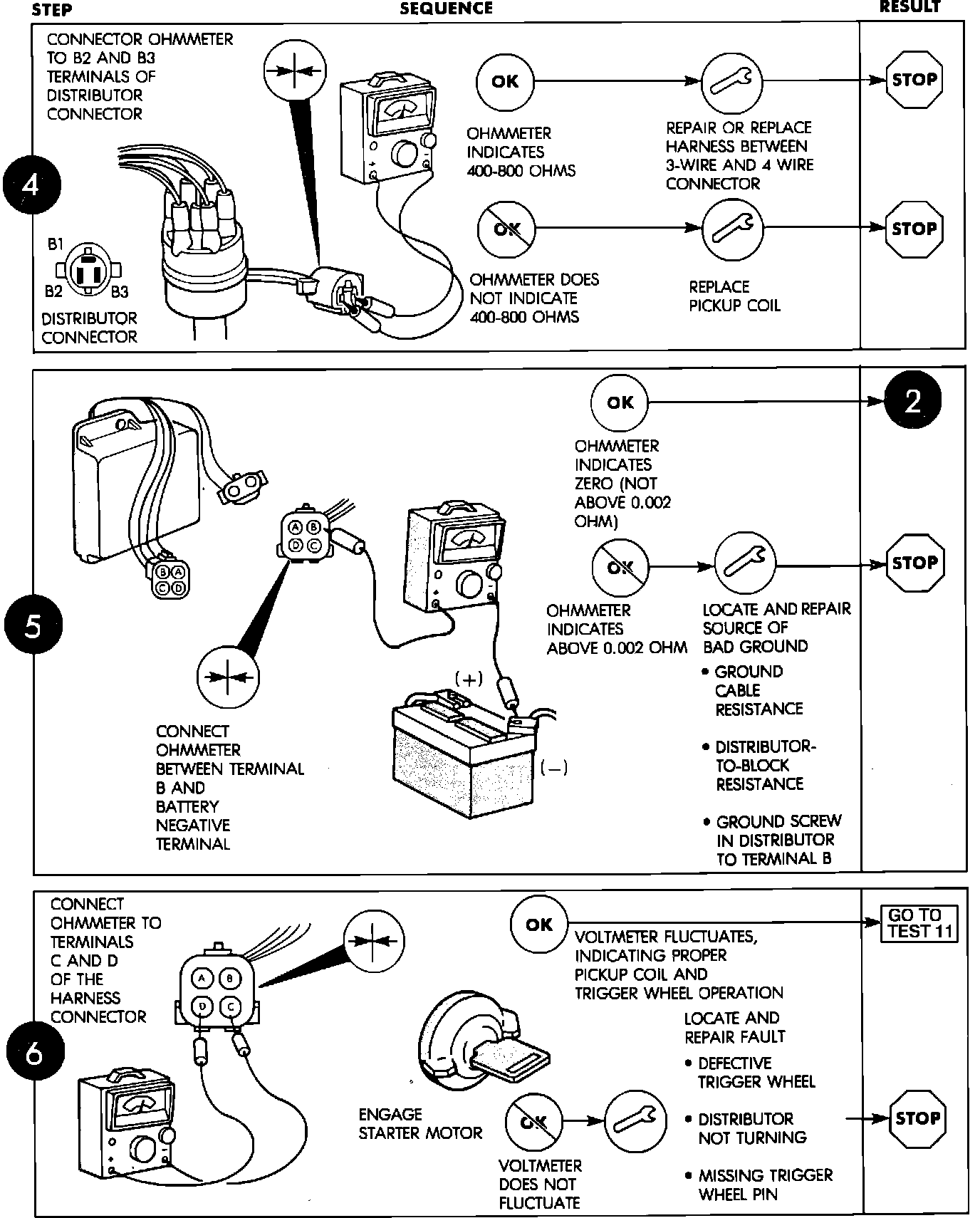

Sensor Check And Control Unit Check:
